Vibration Test Machine for Battery With 1100kg Sine Force 100g Acceleration

Vibration Test Machine for Battery With 1100kg Sine Force 100g Acceleration

Brand Name:	Sinuo
Model Number:	SN553- EV211HG80VT80VCS-2
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	5 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Frequency Range:

1～2800 Hz

Maximum Load:

300 Kg

Sinusoidal Excitation Force:

1100Kg.f Peak

Random Exciting Force:

1100Kg.f R.ms

Impact Excitation Force:

2200Kg.f Peak

Maximum Displacement:

51 Mm P-p

Packaging Details:

Plywood case

Supply Ability:

5 sets/month

Highlight:

RS232 Programmable DC Power Supply

RS485 Programmable DC Power Supply

LAN programmable high voltage power supply

Product Description

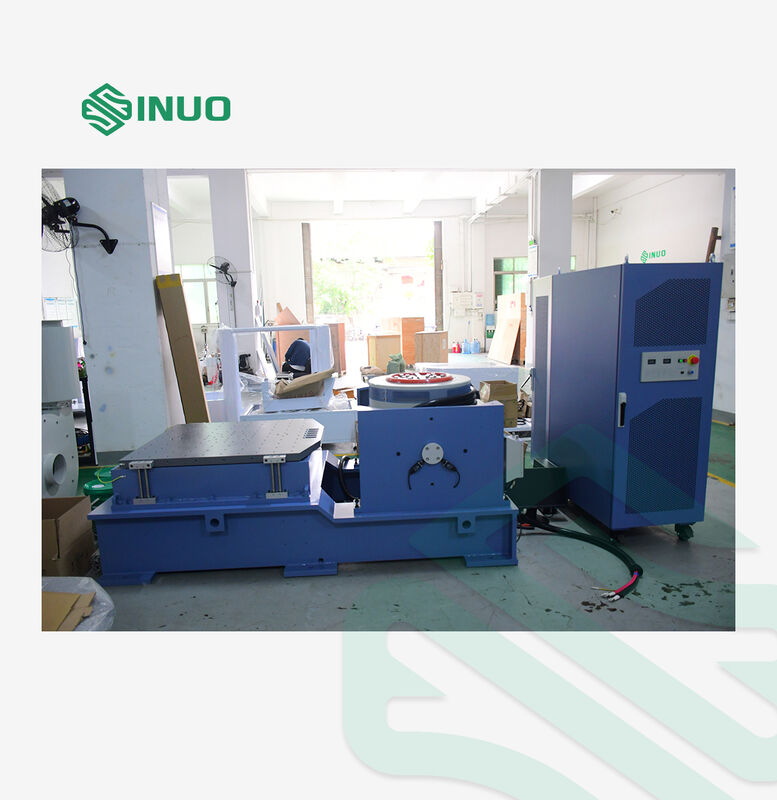

Vibration Test Machine for Battery With 1100kg Sine Force 100g Acceleration

This high-performance vibration test machine is specifically designed for battery testing applications, delivering 1100kg sine force and 100g acceleration capabilities to simulate real-world environmental conditions.

Product Applications

Vibration testing involves exciting or shocking components and devices to evaluate their performance in real-world environments. Our testing solutions are applicable across a wide range of industrial products including circuit boards, aircraft, ships, rockets, missiles, automobiles, and household appliances.

Sinuo provides comprehensive excitation and testing solutions that validate product quality according to national and international standards including UN38.3, GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC, and ASTM.

Equipment Configuration

Component	Configuration Details	Quantity
Vibration Table Body	A11S24 Electromagnetic Excitation Generator	1 SET
Cooling System	B402S Cooling Fan	1 SET
Vertical Testing	VT50 Vertical Extension Table (500×500mm)	1 SET
Horizontal Testing	HG50 Horizontal Oil Film Slide (500×500mm)	1 SET
Control System	Automatic Centering Control Device for Moving Coil	1 SET
Power Amplifier	LA12K Digital Switching Power Amplifier	1 SET
Safety Systems	Servo Protection System	1 SET
Power Supply	Excitation Power Supply	1 SET
Vibration Control	VCS-2 Digital Vibration Controller	1 SET
Sensors	System Acceleration Sensor	1 PCS
Software	Control Software Installation CD	1 SET
Computer System	Control Computer	1 SET
Accessories	Extension Wire, Air Pipe	1 SET
Documentation	Operating Instructions, Inspection Reports, Certificates, Maintenance Manuals	1 SET
Tools	T-type Wrench, Hexagonal Wrench, Screwdriver, etc.	1 SET
Mounting Hardware	Vibrating Pressure Rod/Pressure Bar Clamp	1 SET

Technical Specifications

A11S24 Electromagnetic Excitation Generator

Maximum Sinusoidal Excitation Force	1100Kg.f peak
Maximum Random Exciting Force	1100Kg.f r.ms
Maximum Impact Excitation Force	2200Kg.f peak
Frequency Range	1-2800 Hz
Maximum Displacement	51 mm p-p
Maximum Speed	2m/s
Maximum Acceleration	100G
First-Order Resonant Frequency	2500 Hz ±5%
Maximum Load	300 kg
Vibration Isolation Frequency	2.5 Hz

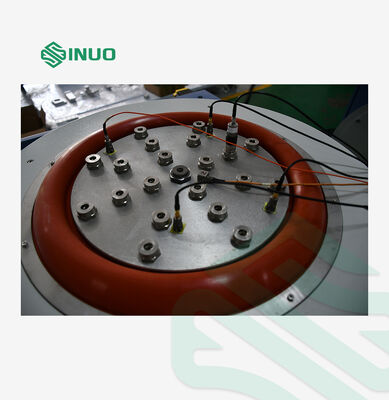

Moving Coil Diameter	Φ240 mm
Moving Coil Weight	11kg
Table Screws	17×M10
Flux Leakage	<1mT (10gauss)
Allowable Eccentric Moment	500N.m
Equipment Size	L1300mm×D940mm×H800mm (excluding vertical expansion table)
Equipment Weight	880 kg (excluding horizontal slide table)

SA-6K Digital Switching Power Amplifier

Output Power	12KVA
Output Voltage	120V
Output Current	100A
SNR	>65dB
Amplifier Size	D900mm×L600mm×H1130mm

Servo Protection System

Comprehensive protection features including: Temperature, wind pressure, over-displacement, over-voltage, over-current, input under-voltage, external fault, control power supply, logic fault, and input phase loss monitoring.

Digital Vibration Controller VCS-2

Hardware Configuration	2 simultaneous input channels, 1 output channel
Control Function Module	Sine, random, classical shock
Control Computer	17" original brand computer with LCD monitor, Windows 10

Software Capabilities

Chinese/English operation interface
Time domain and frequency domain analysis
Signal source management
Sine frequency sweep analysis
Automatic WORD test report generation
Real-time signal display and data storage
Test parameter configuration and analysis functions

System Accelerometer

Frequency Range	1-7000Hz
Sensitivity	30PC/g
Temperature Range	-40 to 180°C

VT80 Vertical Extension Table

Material	Magnesium alloy, surface hardened
Table Size	800×800 mm
Fixed Hole Pattern	M10 rectangular distribution 100MM×100MM, durable and wear-resistant
Upper Limit Usage Frequency	Sine 1000 Hz, Random 2000 Hz
Weight	Approximately 23Kg

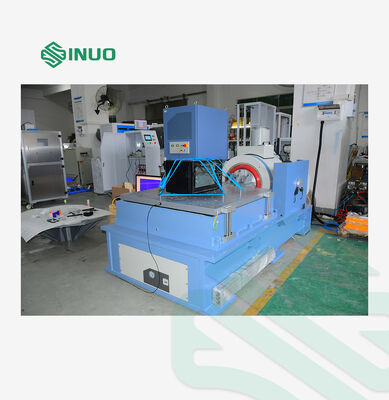

HG80 Horizontal Oil Film Slide Table

Material	Magnesium alloy, surface hardened
Table Size	800×800 mm
Fixed Hole Pattern	M10 rectangular distribution 100MM×100MM, durable and wear-resistant
Upper Limit Usage Frequency	Sine 2000 Hz, Random 2000 Hz
Weight	Approximately 29Kg (without connection head)

B402S Cooling Fan

Fan Power	4KW
Fan Flow Rate	40.8m³/Min

Electrical Requirements

Power Supply	AC 3-phase 380V/50Hz 18 KW
Compressed Air	0.6Mpa
Ground Resistance	≤4Ω
