IEC 62196 Jointed Test Probe For Electric Vehicle Connector Test



Complied Standards & Clauses



IEC 62196-1Ed.4CDV 2020 clause 10.1.

Equipment Overview

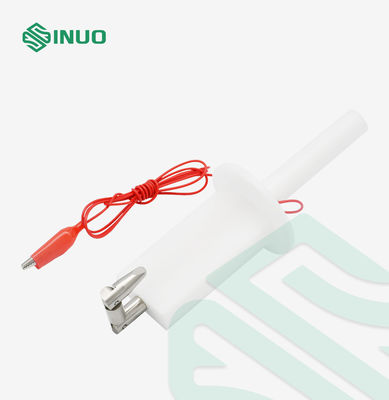

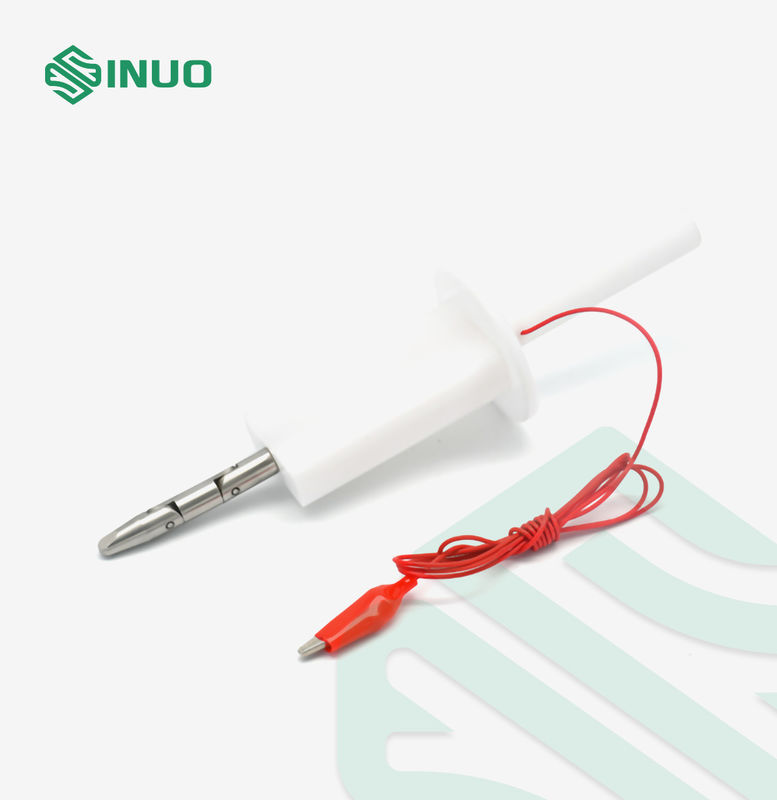

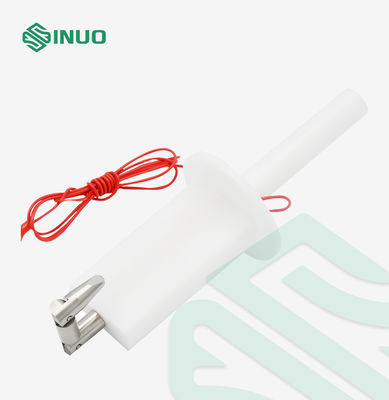

This is a precision test finger made in accordance with many standards like IEC 62196-1Ed.4CDV 2020 clause 10.1. This probe is intended to verify the basic protection against access to hazardous parts. It is also used to verify the protection against access with a finger. This test finger probe consists of dito, finger, base and insulated handle which simulates the characteristics of the human hand. It has two movable joints, which can be curved at 90°.
Customizable: it can be used for anti-electric shock test when equipped with an alligator clip at the end of the handle, or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).


Technical Parameters




Model SN2210-2
Name Test Probe B
Joint 1 30±0.2 mm
Joint 2 60±0.2 mm
Finger length 80±0.2 mm
Fingertip to baffle 180±0.2 mm
Cylindrical R2±0.05 mm
Spherical R4±0.05 mm
Fingertip cutting bevel angle 37o 0 -10′
Fingertip taper 14 o 0 -10′
Test finger diameter Ф12 0 -0.05
A-A Section diameter Ф50 mm
A-A Section width 20±0.2mm
Baffle diameter Ф75±0.2 mm
Baffle thickness 5±0.5 mm
Applied standard IEC 61032, IEC60529-1, etc.
