products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
EV Connector Testing Equipment
Created with Pixso.

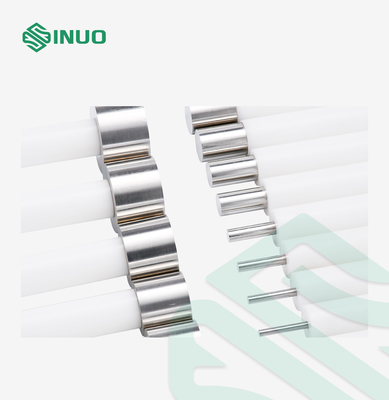

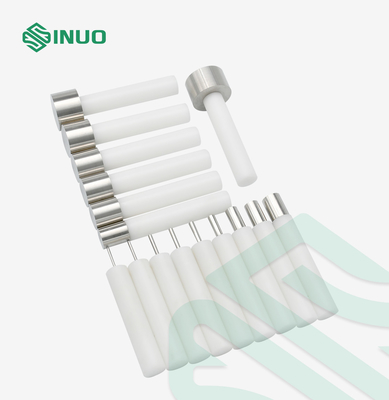

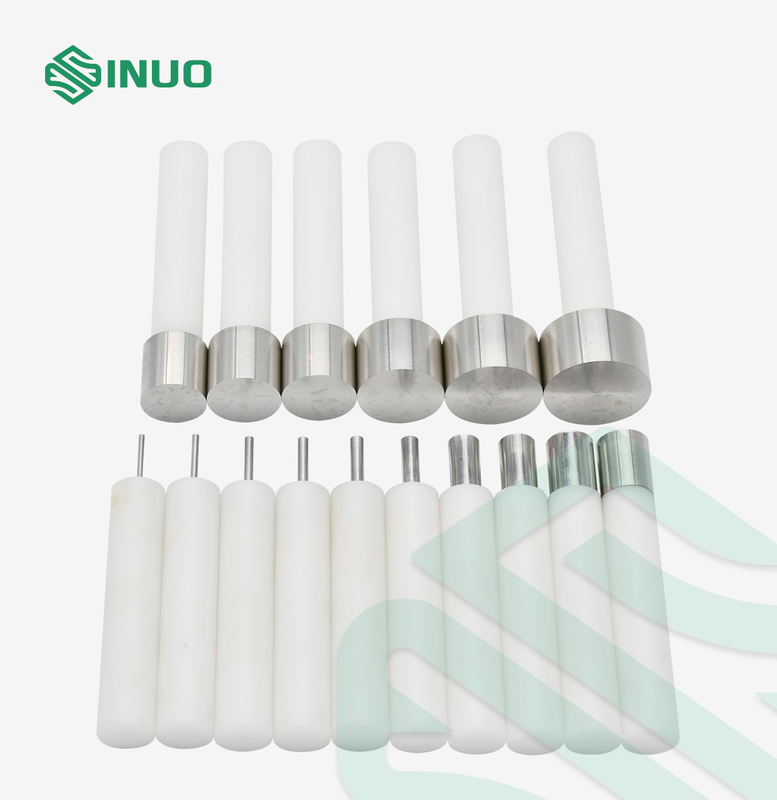

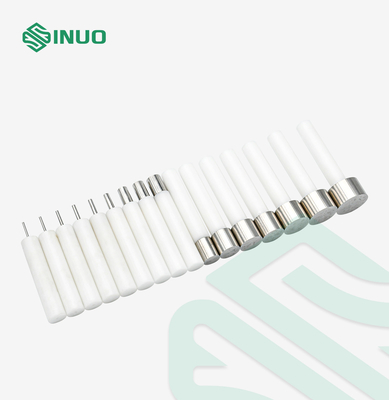

EV Connector Testing Equipment Connector Gauges On Figure 11 16 Pieces

Name

EV Connector Testing Equipment Connector Gauges On Figure 11 16 Pieces

Brand Name: Sinuo
Model Number: SN1011
MOQ: 1
Price: Customized
Payment Terms: T/T
Supply Ability: 90 Sets / Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Calibration Certificate (Cost Additional)
Applied Standard:
IEC 62196-1Ed.4CDV 2020
Applied Clause:
Clause 13.2.1
Applied Figure:
Fig 11
Applied Sample:
Round Unprepared Conductors
Product Material:
Steel
Product Quantity:
16 Pieces
Packaging Details:
Plywood Case
Supply Ability:
90 Sets / Month
Highlight:

IEC EV Connector Testing Equipment

,

Fig11 EV Connector Testing Equipment

,

IEC 62196 Electric Vehicle Connector Gauges

Product Description





IEC 62196 Electric Vehicle Connector Gauges On Figure 6 16 pieces



Complied Standards & Clauses


The gauges conform to IEC 62196-1Ed.4CDV 2020 clause 13.2.1 fig 11.

Equipment Overview



Applied Standards IEC 62196-1 Ed.4 CDV 2020
Applied Clauses Clause 13.2.1
Applied Figure Fig 11
Applied Sample Round Unprepared Conductors
Product Material Die Steel
Product Quantity 16 pieces
Test Space W250mm×D200mm×H200mm
Input Power Customized


The sizes are according to the following table:

EV Connector Testing Equipment Connector Gauges On Figure 11 16 Pieces 0
