IEC 62196 EV Connector Testing Equipment Withdrawal Force Latching Verification
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinuo |
| Certification: | Calibration Certificate (Cost Additional) |
| Model Number: | SN1013B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Customized |
| Packaging Details: | Plywood Case |
| Delivery Time: | 15 days |
| Payment Terms: | T/T |
| Supply Ability: | 30 Sets / Month |
|
Detail Information |
|||
| Applied Standard: | IEC 62196-1 Ed.4 CDV 2020 | Applied Clauses: | Clause 16.16 |
|---|---|---|---|
| Withdrawal Force Weight: | 1kg | Insertion Force Weight: | 9.2kg |
| Insertion Auxiliary Weight: | 0.8kg | Equipment Test Plugs: | Customized |
| Drop Height Limit: | 50MM | Warranty Term: | One Year |
| High Light: | Withdrawal Force EV Connector Testing Equipment,IEC 62196-1 EV Connector Testing Equipment,EV Withdrawal Force Verification Test Equipment |
||
Product Description
IEC 62196 Electric Vehicle Withdrawal Force And Latching Verification Test Equipment
Complied Standards & Clauses
IEC 62196-1:2020 clause 16.16.

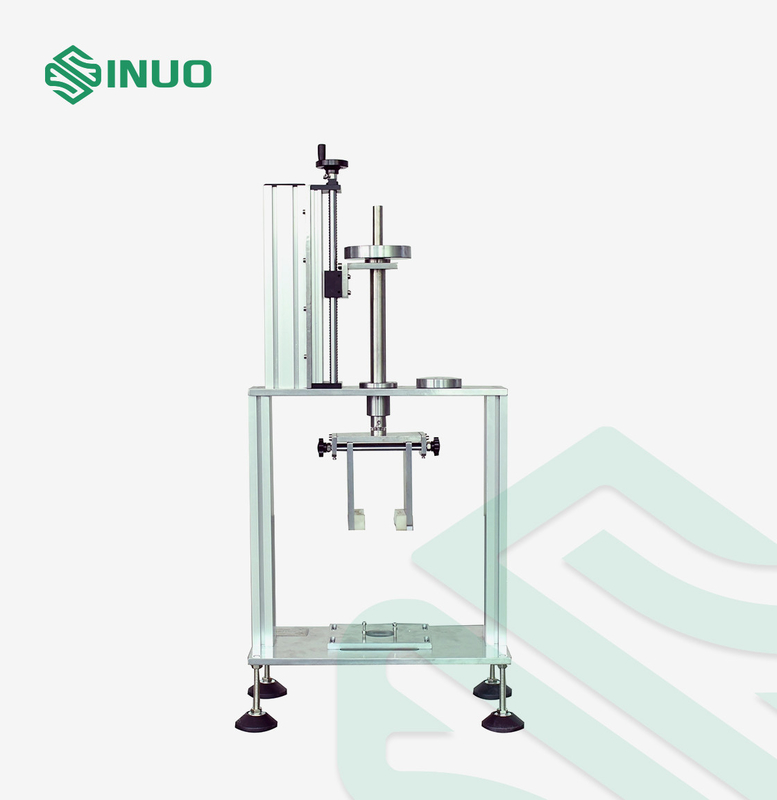

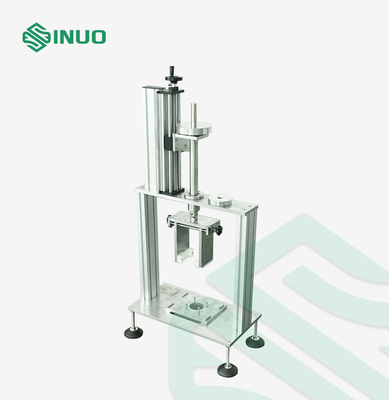

Equipment Overview
This withdrawal force test apparatus is required by IEC 62196-1Ed.4CDV 2020 clause 16.16.

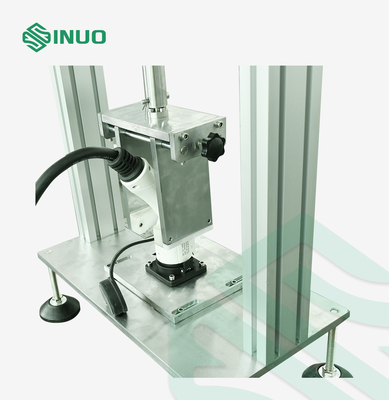

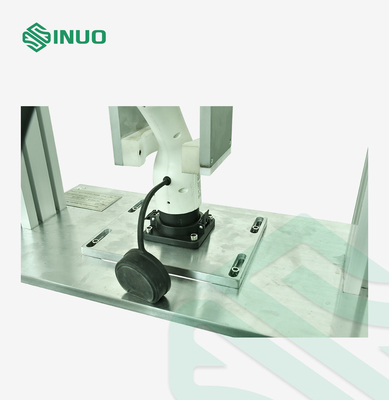

Test principle: The fixed accessory (the socket-outlet or vehicle inlet) is mounted such that the mating accessory moves vertically downward into it during the first stage of insertion. A principal weight of 9,2 kg is suitably placed on the mating accessory. If the moving accessory does not enter the fixed accessory to the position required, a supplementary weight of 0,8 kg is allowed to fall from a height of 5 cm onto the principal weight. The moving accessory shall then enter the fixed accessory to the position required to engage the contacts properly.
Technical Parameters
| Applied Standards | IEC 62196-1 Ed.4 CDV 2020 |
| Applied Clauses | Clause 16.16 |
| Withdrawal Force weight | 1kg |
| Insertion Force Weight | 9.2kg |
| Insertion Auxiliary Weight | 0.8kg |
| Equipment Test plugs | Customized |
|
A. Insertion force test: 1. A fixed insertion force device for socket or appliance input socket 2. Force weight kit: 9.2kg, auxiliary weight 0.8kg 3. Drop height limit of auxiliary weight: 50mm 4. 2kg weight |
|
|
B. Withdrawal force test: 1. Shared the mechanical part of SN1013, based on IEC 62196-1 :2020 Figure 13 2. Shared the test plugs for SN1013 3. Counterweight, make the lifting accessories (gauge + hook + weight) to be 9kg, and the supplemental weight is 1kg 4. 1kg weight |
|
Details:
