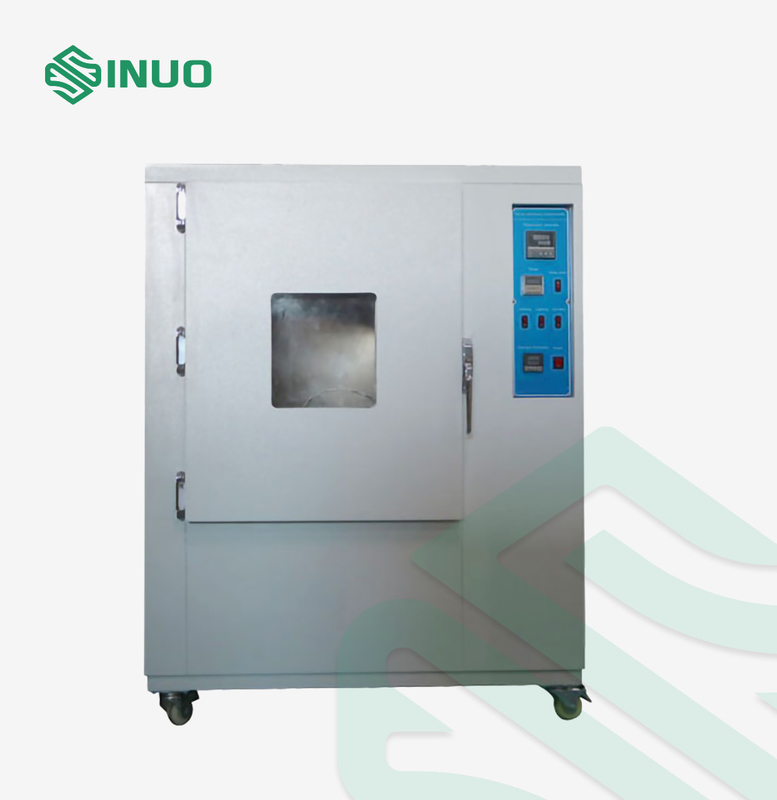

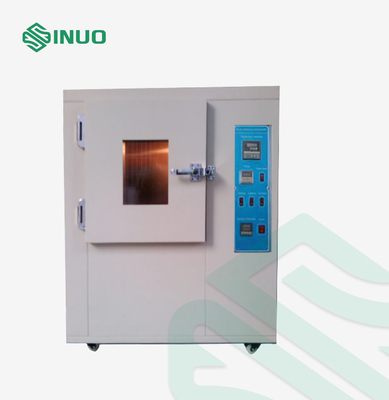

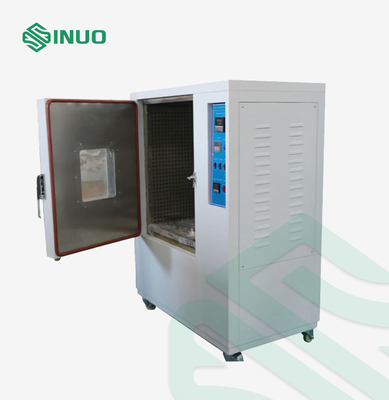

IEC 62196 Electric Vehicle Natural Circulation Heating Thermal Testing Chamber

IEC 62196 Electric Vehicle Natural Circulation Heating Thermal Testing Chamber

Brand Name:	Sinuo
Model Number:	SN8811
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 Sets / Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Applied Standard:

IEC 62196-1 Ed.4CDV 2020

Applied Clauses:

Clause 15

Temperature Range:

RT ~ 300 ° C

Test Shelves:

Two Trays

Distribution Error:

±2.5 °C

Natural Ventilation:

8~20 Times/hour

Temperature Resolution:

0.1 ° C

Temperature Fluctuation:

±1 °C

Packaging Details:

Plywood Case

Supply Ability:

30 Sets / Month

Highlight:

IEC thermal test chamber

IEC 62196 thermal test chamber

Clause 15 temperature cycling chamber

Product Description

IEC 62196 Electric Vehicle Natural Circulation Heating Testing Chamber

Complied Standards & Clauses

IEC 62196-1Ed.4CDV:2020 clause 15.

Equipment Overview

This device conforms to IEC 62196-1Ed.4CDV 2020 clause 15. It is used to perform thermal aging test to polymer materials (plastics, plastics and electrical insulating materials such as: wire and cable sheathing, heat shrinkable tube, rubber test or PVC materials, and the insulating components, or use for drying, baking, heat treatment and so on.

Feature:

1. Adopts to microcomputer electronic digital control method, precise, accurate, stable and reliable.

2. The chamber insulation package is made of silicon, high temperature resistant, never aging; and an observation window is attached to facilitate the observation of the sample during the experiment.

3. P.I.D. control system, double over-temperature protection, safe and reliable.

4. The temperature setting is simple, and the operation is more convenient.

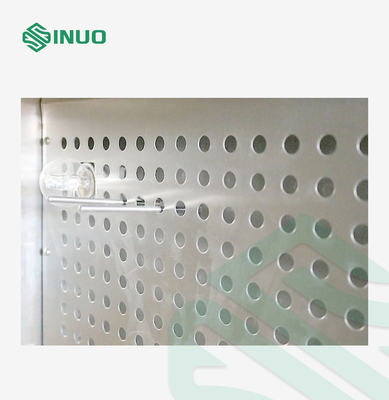

Attachment tray, can be adjusted freely.

Technical Parameters

Applied Standards	IEC 62196-1 Ed.4 CDV 2020
Applied Clauses	Clause 15
Temperature range	Room temperature RT ~ 300 ° C
Inner chamber size	L 50cm * W 60cm* H 80cm
Temperature control	PID digital setting
Test shelves	Two trays
Timer	0~9999H/ M / S
Temperature resolution	0.1 ° C
Temperature fluctuation	±1 °C
Distribution error	±2.5 °C
Air circulation	Natural convection
Natural ventilation	8~20 times/hour
Observation window	Square window
Test piece rotation speed	5~10r.p.m
Material	Inner chamber SUS#304 stainless steel, outer chamber electrostatic spray paint
Machine weight	About 120 kg
Power supply	AC 220V, 50hz
Equipment dimensions	1060mm×700mm×1445mm
