Electric Vehicle Plugs And Connectors Steel Ball Impact Device IEC62196

Electric Vehicle Plugs And Connectors Steel Ball Impact Device IEC62196

Brand Name:	Sinuo
Model Number:	SN1206
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 Sets / Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Applied Standard:

IEC 62196-1

Steel Ball:

50.8mm With Ring, 0.535kg

Drop Height:

0.4-1.5m Adjustable

Lifting Method:

Electric

Clamping Release Method:

Electromagnetic Release

Drop Distance:

Can Be Adjusted

Packaging Details:

Plywood Case

Supply Ability:

30 Sets / Month

Highlight:

50.8mm Ball Impact Device

IEC 62196 Ball Impact Device

IEC 62196 Vertical Impact Test Device

Product Description

IEC62196 Electric Vehicle Plugs And Connectors Steel Ball Impact Device

Complied Standards & Clauses

IEC 62196-1: 2020 "Plugs, Socket - Outlets and Couplers for Industrial and Similar Applications, and For Electric Vehicles" clause 26.2, fig 8, table 13.

...

Equipment Overview

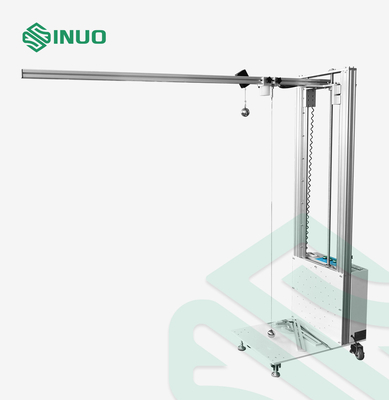

The steel ball impact device conforms to the requirements of IEC 62196-1Ed.4CDV 2020 clause 26.2, fig18, table 13. It is suitable for mechanical strength for accessories to verify whether accessories shall have adequate mechanical strength so as to withstand the stresses imposed during installation and use.

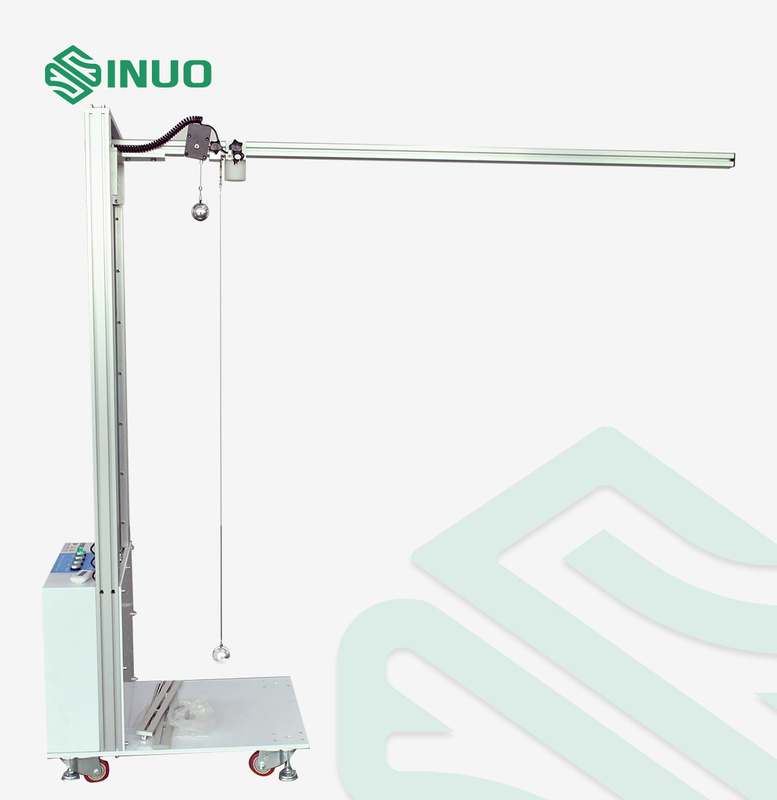

The instrument can perform two forms of vertical drop impact and swing horizontal impact. It has the advantages of accurate measurement, reasonable layout and convenient operation. It is an ideal instrument for laboratory institutions and major manufacturers.

Technical Parameters

1 Impact steel balls:

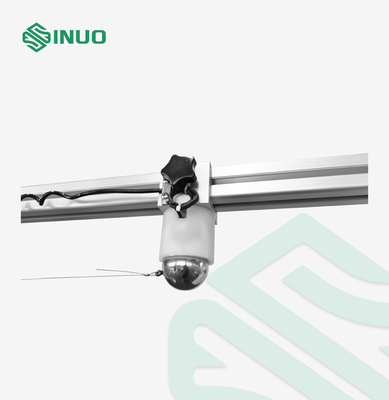

Steel ball for vertical drop impact: 50.8mm with ring, 0.535kg, one piece, fall freely from rest through a vertical distance (H), the drop distance can be adjusted by adjusting the length of the suspension wire to achieve 1J, 2J, 3J and 4J.

Steel ball for swing horizontal impact: 50.8mm with ring, 0.535kg, four pieces, dropping through a vertical distance (H), the drop distance is fixed by the 4 pieces of steel ball with suspension wires to achieve 1J, 2J, 3J and 4J, operator should install the sample well to match the fixed drop distance.

2 Drop height: 0.4-1.5m adjustable

3 Lifting method: electric

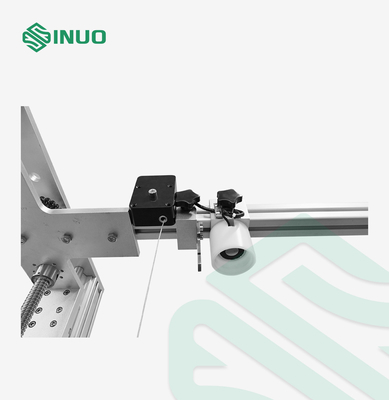

4 Clamping release method: Electromagnetic release

5 Impact energy according to the following table:

Electric Vehicle Plugs And Connectors Steel Ball Impact Device IEC62196 0

6 Impact method: according to the standard reference table as following.

Electric Vehicle Plugs And Connectors Steel Ball Impact Device IEC62196 1

Questions & Answers

Q: What is the steel ball for swing horizontal impact?
A: It is 50.8mm with ring, 0.535kg, four pieces, dropping through a vertical distance (H), the drop distance is fixed by the 4 pieces of steel ball with suspension wires to achieve 1J, 2J, 3J and 4J, operator should install the sample well to match the fixed drop distance.
