IEC62196 Electric Vehicle Screwed Glands Torque Test Apparatus
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinuo |
| Certification: | Calibration Certificate (Cost Additional) |
| Model Number: | SN994 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Customized |
| Packaging Details: | Export package |
| Delivery Time: | 8days |
| Payment Terms: | T/T |
| Supply Ability: | 30 Sets / Month |
|
Detail Information |
|||
| Applied Standard: | IEC 62196-1Ed.4CDV 2020 | Applied Clause: | Clause 26.5 |
|---|---|---|---|
| Applied Table: | Table15 | Torque Range: | 5N.m To 12.5N.m |
| Equipped Mandrels: | Cylindrical Metal Rods | Rods Diameter: | Customized |
Product Description
IEC62196 Electric Vehicle Screwed Glands Torque Test Apparatus
Complied Standards & Clauses
IEC 62196-1Ed.4CDV: 2020 "Plugs, Socket - Outlets and Couplers for Industrial and Similar Applications, and For Electric Vehicles" clause 26.5, table 15.
Equipment Overview
This screwed gland tester conforms to IEC 62196-1Ed.4CDV 2020 clause 26.5, table15.

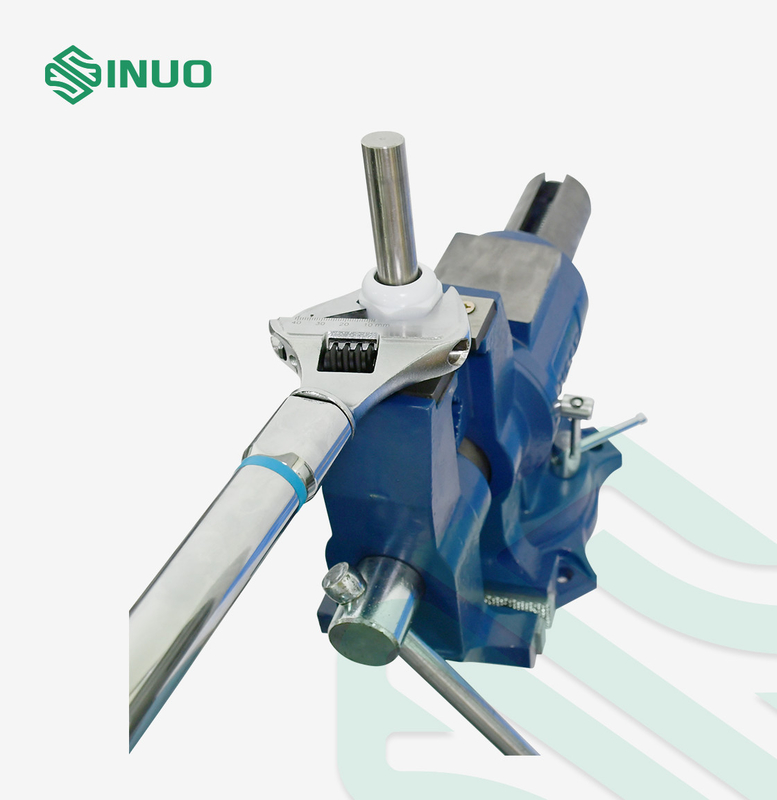

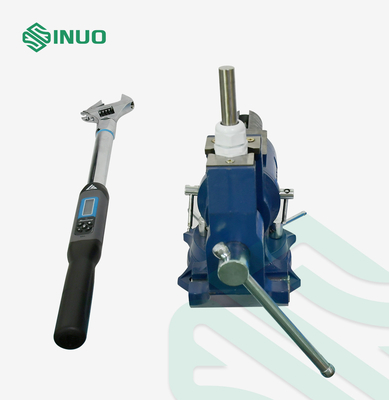

Based on the above table, the torque range is 5N.m to 12.5N.m. As per client’s requirements, the torque needs up to 50N.m, so there are equipped two sets of the torque wrenches : one is 1.5~30N.m, the other is 6.75~135 N.m. The whole testing equipment showing as following:
1. Torque wrench 1.5-30 N.m:
2. Torque wrench 6.75-135 N.m:

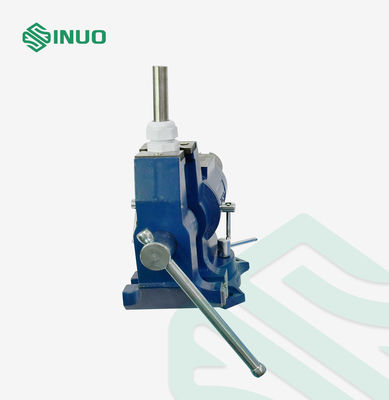

3. Vice:

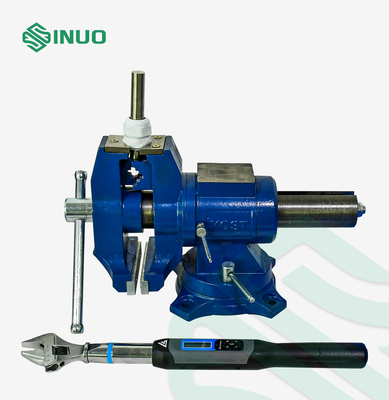

4. Mandrels
cylindrical metal rods (Ф5,Ф7,Ф9,Ф10,Ф12,Ф14,Ф16,Ф18,Ф20,Ф22,Ф25,Ф30,Ф32,Ф40mm). If required rods’ diameter are not included, please contact us for customization.
