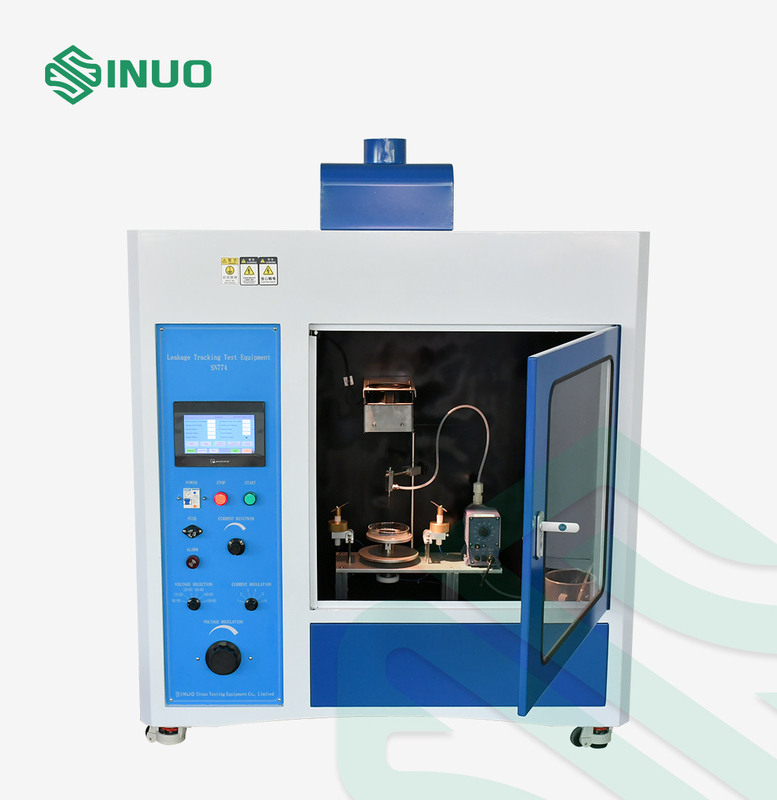

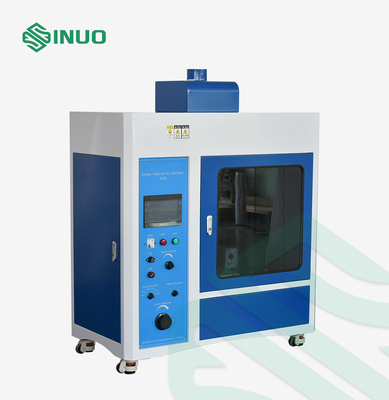

Electric Vehicle Leakage Tracking Test Equipment IEC 62196 PLC Control System

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN774

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood Case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30 Sets / Month
Contact Now

Detail Information

Applied Standard: IEC 62196-1 Ed.4CDV 2020 Applied Clause: Clause 28.4, 29.6
Display Type: 7 Inch Color Touch Screen Testing Voltage: 0~600V Adjustable, Precision 1.5%
Timing Device: 9999X0.1S Electrode Dimension: (5±0.1)×(2±0.1)×(≥12), 30°slant
Control Mode: Advanced PLC Electrode Pressure: 1.00N±0.05N(digital Display Is Optional)
High Light:

EV Tracking Test Equipment

,

EV PLC Tracking Test Equipment

,

Tracking Test Apparatus IEC 62196

Product Description





IEC 62196 Electric Vehicle Leakage Tracking Test Equipment



Complied Standards & Clauses




IEC 62196-1 Ed.4CDV 2020 clause 28.4, 29.6.

IEC60335-1 clause 29.2 and Annex N,

IEC 60065:2014 clause 13.4,

IEC60598-1,

IEC 60884-1:2013 clause 28.2,

UL746A

ASTM D3638-92



Equipment Overview




The tester is designed and manufactured according to the standard requirements of IEC60112, and required by IEC 62196-1Ed.4CDV 2020 clause 28.4, 29.6, IEC60335-1 clause 29.2 and Annex N, IEC 60065:2014 clause 13.4, IEC60598-1, IEC 60884-1:2013 clause 28.2, UL746A and ASTM D3638-92 and etc. The working principle of the leakage tracking test (tracking index testing) is that the conducting liquid (0.1%NH 4 CL) of required volume in the required height (35mm) and required time (30s) drops with the voltage between the platinum electrodes (2mm × 5mm ) on the surface of solid insulating material. Thus the users evaluate the tracking resistance performance of solid insulating material surface under the combined influence of electric field and humid or contaminate medium. In a word, this device is used to measure the compare tracking index (CT1) and electrical resistance index (PT1).

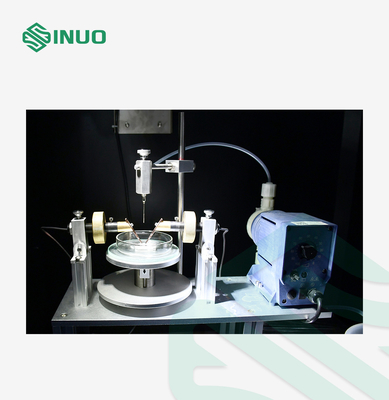

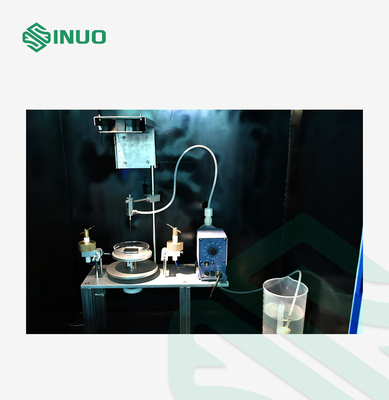

A gauge block is supplied with the instrument to ensure the electrodes have the proper distance between them. The table height is easily adjustable to ensure the proper angle of the electrodes and height of drops. The rest of the test is controlled from outside the test chamber with the door closed. The voltage, limiting current, drip rate and number of drips are all set on the control panel. An operator should observe the test to see if a flame ignites. The instrument sounds an alarm if there is a tracking failure of at least two seconds.



The leakage tracking tester adopts to advanced PLC control system and 7” color touch screen, it is suitable for the research, production and quality department of lighting equipment, low-voltage apparatus, household appliance, machine tool electric appliance, electrical machine, electric tool, electronic instrument, electrotechnical instrument, information technology equipment. It is also suitable for the industry of insulating material, engineering plastics, electrical connector and accessories.



Technical Parameters




Parameter model SN774 (0.5m³)
Working voltage 220V/50Hz,1KVA
Control Advanced PLC
Display 7 inch color touch screen
Testing voltage 0~600V adjustable, precision 1.5%
Timing device 9999X0.1S
Electrode Platinum electrode and brass electrode each for a pair
Electrode dimension

(5±0.1)×(2±0.1)×(≥12),

30°slant

Electrode included angle and distance 60°±5°, distance is (4±0.1㎜)
Electrode pressure 1.00N±0.05N(digital display is optional)
The interval of dropping liquid 30±5S, adjustable
Dropping liquid height 35±5mm
Dropping liquid delay 0.2S(solenoid valve opening time)
Dropping liquid size 45~50 drip/cm3
Time-delay circuit 2±0.1S(in 0.5A or larger current)
Short-circuit pressure drop 8% MAX
Short-circuit current 1±0.1A 1%
Wind speed 0.2m/s
Environmental requirement 0~40℃, relative humidity≤80%, in the place of no obvious vibration and corrosive gas
Equipment size & weight 1100mm* 550mm* 1100mm, 180KGS
conforms to standard IEC60112, IEC 60598-1, IEC60695, IEC 60884-1, UL746A, ASTMD3638, etc.
