EV Glow Wire Test Apparatus PLC Control IEC 62196 Glow Wire Test Equipment

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN772

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Export package
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 30 Sets / Month
Contact Now

Detail Information

Applied Standard: IEC 62196-1 Ed.4CDV 2020 Applied Clause: Clause 29.5
Display Type: 7 Inch Color Touch Screen Testing Time: 30s±0.1s(1s ~ 999.9s Digital Display Preset )
Specimen Speed: 10mm /s ~ 25mm /s Maximum Depth: 7mm ± 0.5mm
Control Mode: Advanced PLC Other Standards: IEC60695-2-10 And Etc.
High Light:

EV Glow Wire Test Apparatus

,

PLC Control Glow Wire Test Apparatus

,

IEC 62196 glow wire test equipment

Product Description





IEC 62196 Electric Vehicle PLC Controled Glow Wire Test Apparatus

Complied Standards & Clauses



IEC 62196-1 Ed.4CDV 2020 clause 29.5.
IEC60695-2-10, IEC 60695-2-11, IEC 60695-2-12, IEC60695-2-13.

Equipment Overview



This device simulates the thermal stress test of glowing component or heat source like overload resistance or ignition source which is caused in s short time. It is suitable for electric and electronic products, household appliances and other material to do fire hazard testing. It is also used in the No flame ignition source fire test to test initiation temperature and flammability index of related glowing filament.

Test principle and products feature:
Test principle: the glowing filament whose material and shape is required(Ni80/Cr20) is heated to the testing temperature of 550 ℃ ~ 960 ℃ for 1 min by using the glow wire tester with large current. Then using required pressure (1.0N) vertically burns the test sample for 30s. By observing whether the test sample and bedding object ignite or the burning time, the users can judge the ignition danger of electric and electronic products. It is used for the ignition test, ignition temperature (GWIT) test, flammability test and flammability index (GWFI) test of solid insulating material and other solid combustible material.
Products feature: Adopting advanced PLC control, and 7 inch color touch screen, it is with solenoid valve switch to control the burning depth of test sample and equipped with measuring gauge, this device has the features of exact and rapid. The test sample will break away automatically from glowing filament after reaching the set time. Adopting the original imported UK LAB K type armour(1mm)whose temperature resistance is up to 1100°(exceed 1050°of standard requirement) , this device is with accuracy temperature control.

Technical Parameters




ControlAdvanced PLC
Display7” color touch screen
Glowing Element

Ф4mm ± 0.04mm Ni/Cr(77/20) special standard
ring shape, horizontal standing

Thermocouple

1mm import K thermocouple (Brand: RS), the
temperature resistance of armour is 1100 ℃
(better than the standard of 1050 ℃ )

Temperature Precision

500°C-750°C+10%, 750°C-960°C+10%
Temperature fluctuation < 3 ℃

Specimen pressure
on glowing filament

0.95N±0.1N( adjustable )

Maximum depth of
heating

7mm ± 0.5mm

Specimen movement
speed

10mm /s ~ 25mm /s
Testing time30s±0.1s(1s ~ 999.9s digital display preset )

Thickness of ignite
bedding board

Thickness10mm, white pine board cover
12g /m 2 ~ 30g /m 2 standard silk paper

Volume of test site≥ 0.5m³, black background, background illuminance ≤ 20Lx
Dimension and weight

W: 1100mm × D: 550mm × H: 1200mm,
gas vent:100mm, 140KGS

Power220V/50Hz
StandardIEC60695-2-10, IEC 60695-2-11, IEC 60695-2-12, IEC60695-2-13, UL746A , IEC 60335, IEC 60598, etc.


Deatils:

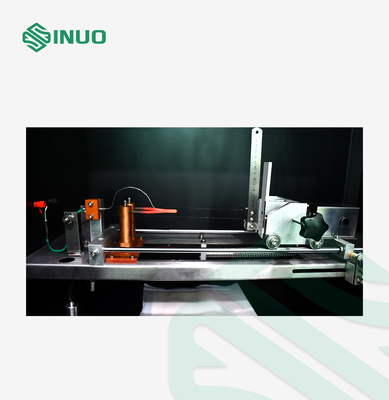

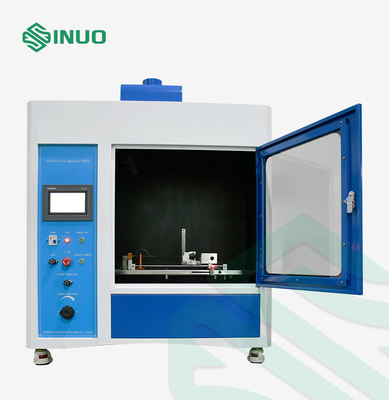

EV Glow Wire Test Apparatus PLC Control IEC 62196 Glow Wire Test Equipment 0

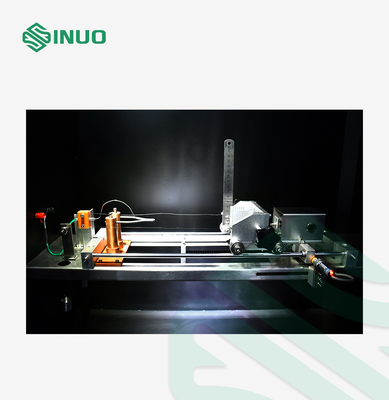

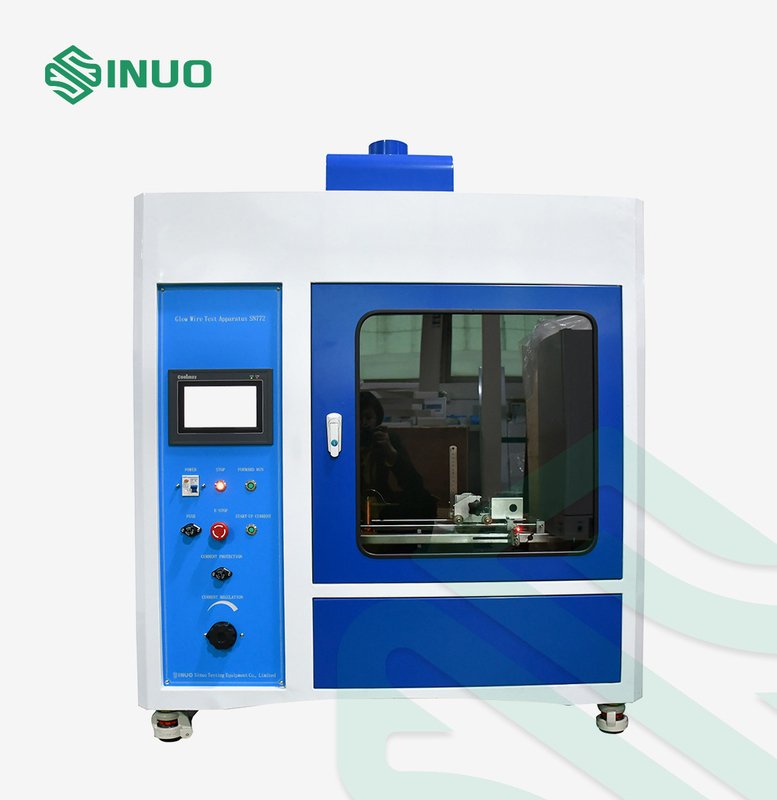

EV Glow Wire Test Apparatus PLC Control IEC 62196 Glow Wire Test Equipment 1
