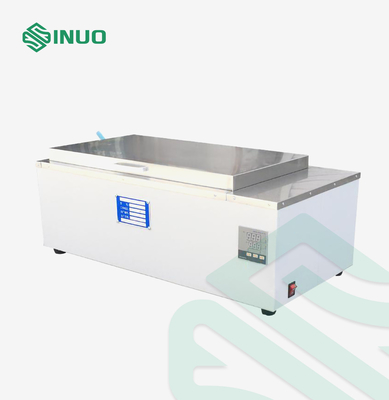

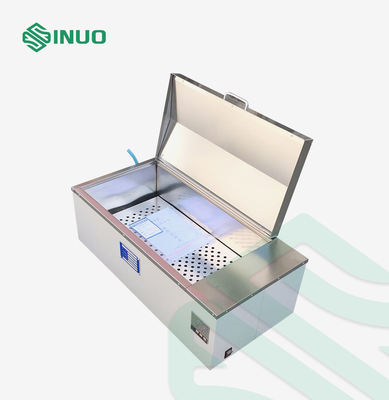

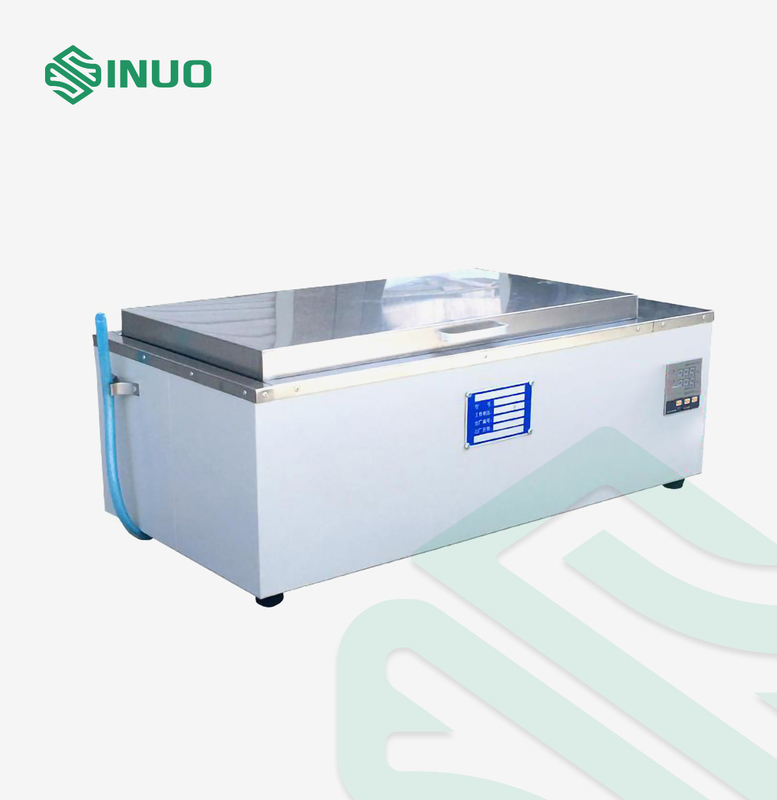

Electric Vehicle Constant Water Bath Testing Equipment IEC 62196 304 Stainless Steel

Name

Electric Vehicle Constant Water Bath Testing Equipment IEC 62196 304 Stainless Steel

Brand Name:	Sinuo
Model Number:	SN1015
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	20 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Applied Standard:

IEC 62196-1 Ed.4CDV 2020

Applied Clause:

Clause 30

Max. Power:

5KW

Temperature Range:

Room Temperatur~25°C

Temperature Error:

±2°C

Liner Material:

2mm 304 Stainless Steel

Inner Size:

1000mm*1000mm*1000mm

Warranty Time:

One Year

Packaging Details:

Export package

Supply Ability:

20 sets/month

Highlight:

5KW constant temperature water bath

,

EVSE constant temperature water bath

,

1000mm constant water bath testing equipment

Product Description

IEC 62196 Electric Vehicle Constant Water Bath Testing Equipment 304 stainless steel

Complied Standards & Clauses

IEC 62196-1 Ed.4CDV 2020 clause 30.

Equipment Overview

It adopts stainless steel inner liner, and advanced digital display temperature control method. The water is stirred at the bottom of the liner to ensure that the water temperature is even up and down.

Technical Parameters

Inner size	1000mm1000mm1000mm
Input voltage	Three phase380V, 50Hz
Max. power	5KW
Constant temperature range	Room temperatur~25°C Heating: Room temperature~25°C Cooling: Room temperature~25°C The required temperature is set, the water bath will achieve to the set value automatically.
Temperature error	±2°C
Chamber liner material	2mm 304 stainless steel

Details:

Electric Vehicle Constant Water Bath Testing Equipment IEC 62196 304 Stainless Steel 0
