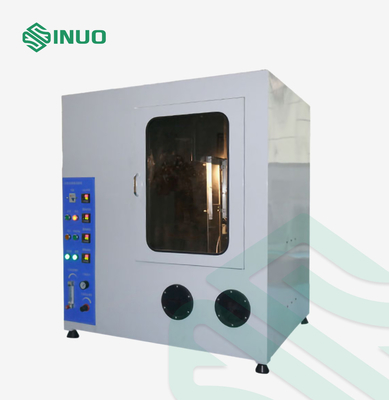

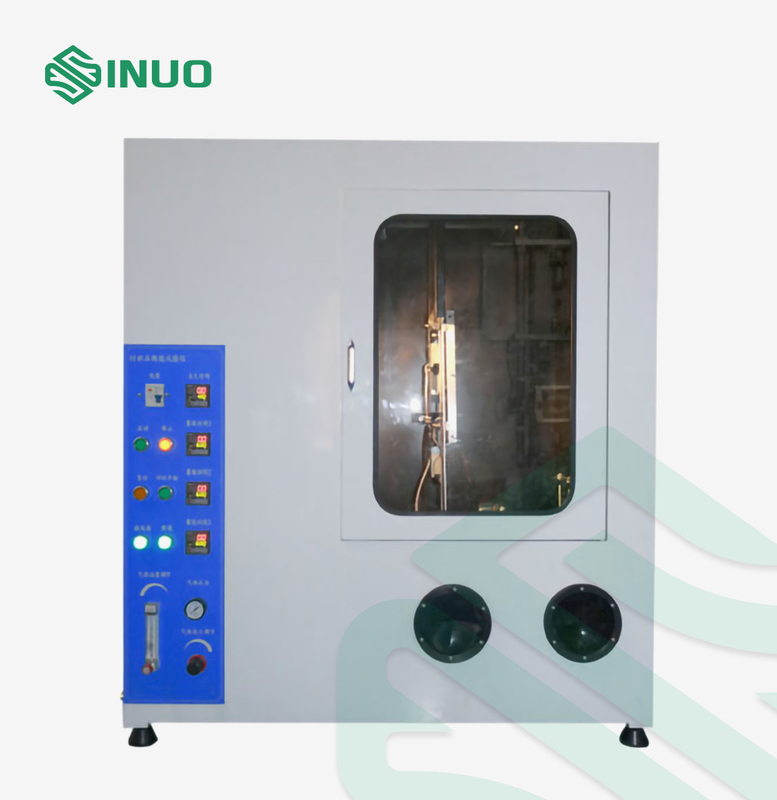

ISO 6941 Electric Vehicle Textile Fabric Flammability Test Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinuo |
| Certification: | Calibration Certificate (Cost Additional) |
| Model Number: | SN7710 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Customized |
| Packaging Details: | Plywood Case |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets/month |
|
Detail Information |
|||
| Applied Standard: | ISO 6941 | Applied Specimen: | Textile Fabric |
|---|---|---|---|
| Burning Angle: | 25°, Adjustable | Burning Height: | 17mm |
| Flame Height: | Adjustable | Specimen Frame: | 560×170mm |
| Test Clip: | Two U-shaped Plates | Warranty Term: | One Year |
| High Light: | ISO 6941 Flammability Test Apparatus,Textile Flammability Test Apparatus,Fabrics flammability test chamber |
||
Product Description
Electric Vehicle Textile Fabric Flammability Testing Equipment
Complied Standards & Clauses
ISO 6941 "Textile fabrics-Burning behavious-Measurement of flame spread properties of vertically oriented specimens"
Equipment Overview
The test chamber is designed and manufactured according to the standard requirement of ISO 6941.
It is suitable for the vertical combustion performance test of textile fabrics and industrial products of all kinds of single or multi-component (coating, quilting, multi-layer, sandwich products and similar combinations).
This equipment adopts high-precision instruments, automatic ignition system, precision flow regulator, so it has the advantages of simple-accurate flame adjustment, stable performance and convenient operation.
Test principle: It is used a regulated igniter to ignite, and simulate the flame to ignite the bottom edge of the sample in the vertical direction. After the regulated time, measure the afterburning, smoldering time and damage length of the sample to judge whether the sample is qualified or not.
Technical Parameters
| Working power supply | Match client's local power supply requirements |
| Control method |
Button-operation (PLC control + touch screen operation isoptional) |
| Chronograph | 9999X0.01s |
| Burning angle | 25°, adjustable |
| Test clip | It is made of two U-shaped stainless-steel plates of 422*89*2mm, and the inner frame size is 356×51mm |

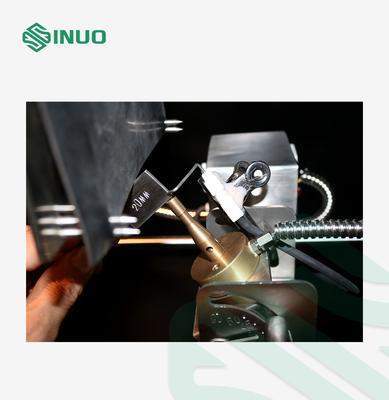

| The height between the bottom and the nozzle of the igniter | 17mm |
| Specimen frame | 560×170mm, 12 specimen fixing pins and 8 positioning cylinders are arranged |
| Flame height | Adjustable, regulated by flow meter |
| Gas category |
A: Select propane or butane or a mixture of propane butane; B: Select methane with a purity higher than 97% |
| Hammer | 54.5, 113.4, 226.8, 340.2, 453.6g, (including a diameter of 1.1, a length of about 76mm, and a 13mm end bent at a 45° angle) |
| Absorbent cotton | Equipped with 2 packs of medical absorbent cotton |
| Illumination | Equipped with test chamber lighting with control |
| Dimensions | WDH=1200×700×1200mm,130kg |
| Use environment |
Power supply: single-phase AC22V±10%, 50/60Hz Ambient temperature: 10℃～35℃ Relative humidity: 30%～90% |
| Combustion chamber | Made of stainless steel, with a heat-resistant transparent observation window; chamber size:329±2* 329±2* 767±2 mm(W*D*H); the bottom plate of the chamber is 304×304×3mm; the receiving tray is 152× 152×1.5mm; there are brackets and test clip fixing devices on the top and side of the chamber to fix the test clips. There are 16 exhaust holes with an inner diameter of 12.5mm on the top of the chamber, and a top plate is installed 30mm away from the top of the chamber to prevent the airflow outside the box. There are 6 ventilation holes with an inner diameter of 12.5mm on both sides of the box, and ventilation holes are arranged around and at the bottom, W×D×H=385mm×204mm×360mm |
