Environmental Temperature Humidity Vibration Climate Test Chamber IEC 60068
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinuo |
| Certification: | Calibration Certificate (Cost Additional) |
| Model Number: | SN888 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Customized |
| Packaging Details: | Plywood Case |
| Delivery Time: | 60 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Applied Standard: | IEC 60068 Series | External Chamber: | A3 Cold Rolled Steel Plate |
|---|---|---|---|
| Internal Chamber: | SUS304 Stainless Steel | Temperature Range: | Can Be Customized |
| Cooling Method: | Water Cooling | Humidity Variation: | 20%～98%RH |
| Vibration Table: | Configured Per User's Requirements | Vibration Frequency: | Can Be Customized |
| High Light: | IEC60068 temperature and humidity test chamber,evse temperature and humidity test chamber,evse temperature humidity environmental chamber |
||
Product Description

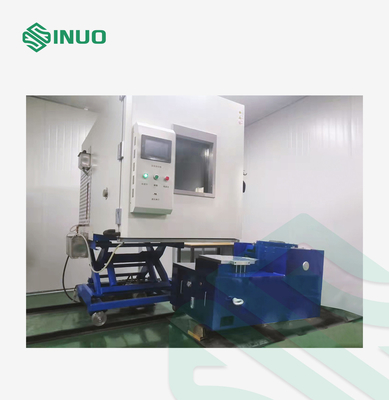

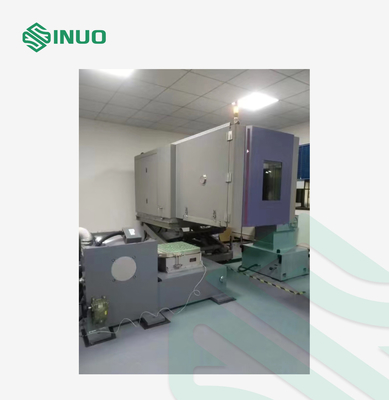

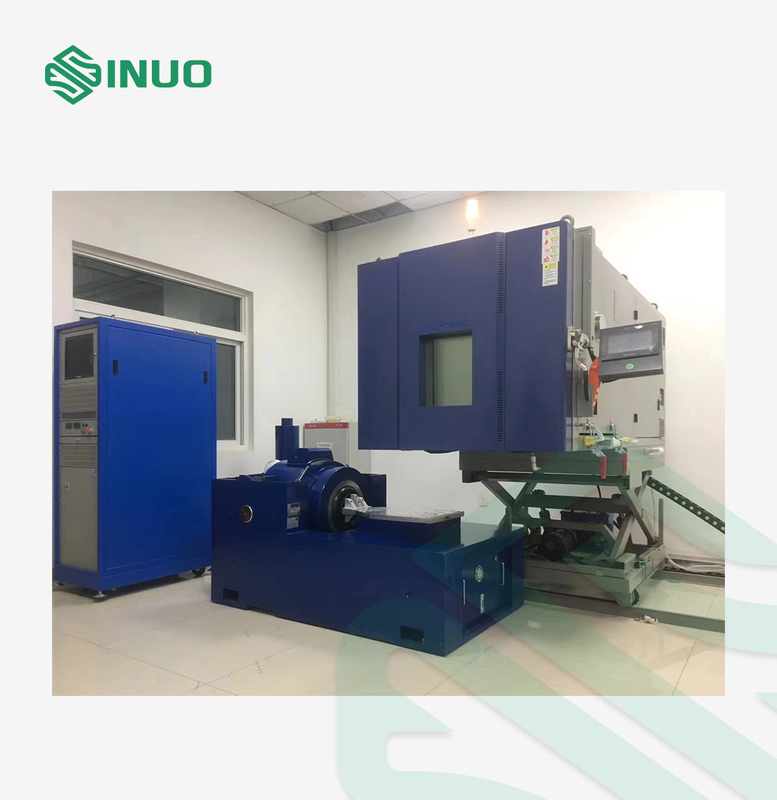

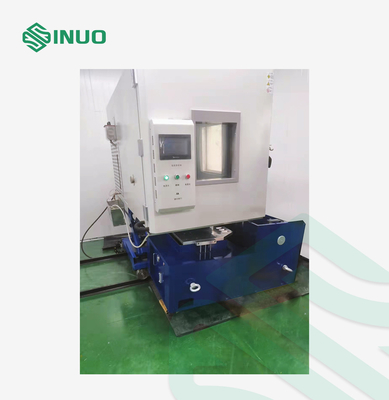

Comprehensive Temperature Humidity Vibration Environmental Test Systems
Complied Standards & Clauses
IEC 60068-2-6:1995 Environmental testing for electric and electronic products-Part 2: Test methods Test Fc: Vibration (sinusoidal)
IEC 60068-2-1:2007 Environmental testing for electric and electric products-Part 2-1: Tests-Test A: Cold, IDT
IEC60068-2-2: 2007 Environmental Testing-Part 2-1:Tests- Test B-Dry heat,IDT
IEC60068-2-30:2005 Environmental Testing-Part 2-30:Tests-Test Db: Damp heat,cyclic(12h+12h cycle),IDT
IEC60068-2-78:2001 Environmental Testing-Part 2-78:Tests-Test Cab: Damp heat,steady state,IDT
Equipment Overview
It is used to provide temperature and humidity change environment for aerospace, aviation, aviation, petroleum, chemical, electronics, communications and other scientific research and production units. At the same time, the electrical vibration stress can be applied to the test sample according to the specified period in the test chamber for test the reliability and adaptivity of the sample.
Technical Parameters
| Model | SN888-408L | SN888-1000L | SN888-Customized Size | |
| Working room volume(L) | 408 | 1000 | Can be customized | |
| Working room volume(W*D*H) | 700*750*800 | 1000*1000*1000 | Can be customized | |
| Performance | Temperature range | -20℃,-40℃,-70℃～+150℃ or can be customized | ||
| Humidity range | 20%～98%RH | |||
| Temperature fluctuation | ±0.5℃ | |||
| Temperature variation | ±2℃ | |||
| Humidity variation |
When the humidity in ≤75%RH: ±3%RH; When the humidity in >75%RH: ±5%RH; |
|||
|
Temperature rising/cooling rate |
≤5℃/Min or ≤10℃/Min (-55℃～+80℃) (can be customized) | |||
|
Temperature and humidity control method |
BT(H) balance temperature regulation (humidity regulation) method | |||
| Material | Internal chamber | SUS304 stainless steel | ||
| External chamber | A3 cold rolled steel plate | |||
| Insulation | Rigid polyurethane foam | |||
| Chiller |
German Bitzer semi-hermetic compressor or German Bock semi-hermetic compressor |
|||
| Cooling method | Water cooling | |||
| Heater | High-quality nickel-chromium alloy heater | |||
| Humidifier | Adopt external humidification method | |||
| Fan | Centrifugal fan | |||
| Temperature sensor | PT-100 platinum resistance | |||
| Controller | Touch screen programmable controller | |||
| Vibration table | It is equipped by the user’s requirements | |||
| Standard configuration | Observation window, cable hole, sample holder (2 sets), lighting lamp | |||
| Safety equipment | Leakage protection, over temperature protection, water shortage protection, fan overload protection, oil shortage of compressor, overpressure, circuit break, overload protection, and etc. | |||
