ISO 4892-3 UV Weathering Test Chamber Accelerated Aging Environmental Test Chamber

ISO 4892-3 UV Weathering Test Chamber Accelerated Aging Environmental Test Chamber

Brand Name:	Sinuo
Model Number:	SN882A
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	20 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Applied Standard:

ISO4892-3:2006, Etc.

Light Source:

UV-B 313

Lamp Quantity:

8 PCS

Lamp Life:

≥3000h

Chamber Temperature:

RT+5℃～85℃

Blackboard Temperature:

40℃～85℃ Under Light

Sample Holders:

48 Pcs

Exposure Area:

5175cm²

Packaging Details:

Plywood case

Supply Ability:

20 sets/month

Highlight:

ISO 4892-3 Environmental Test Chamber

UVB Environmental Test Chamber

uv weathering test chamber

Product Description

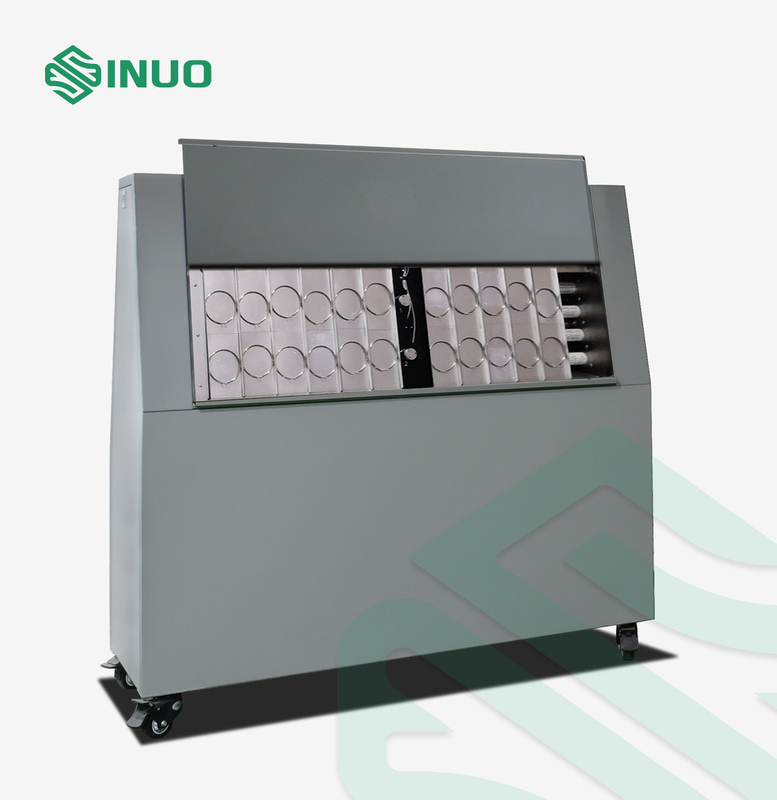

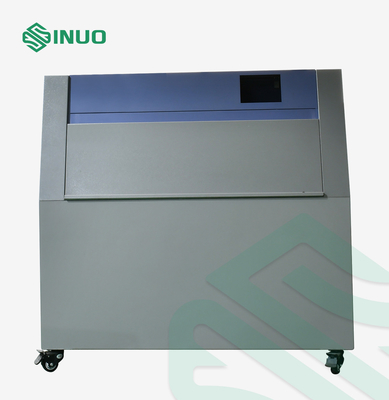

Tower Type UVB 313 Weathering Accelerated Aging Testing Chamber

Complied Standards & Clauses

ISO4892-3:2006 Plastics - Methods of exposure to laboratory light sources - Part 3: Fluorescent UV lamps

ASTM G-154 Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials

ASTM D-4329 Standard Practice for Fluorescent UV Exposure of Plastics

......

Equipment Overview

The UV weathering resistance test chamber is mainly used for artificial accelerated tests of plastics, coatings, and rubber materials under simulated environments of sunlight, rain, and dew. This equipment only takes a few days or a few weeks to reproduce the working conditions in the environment that takes months or even years to occur outdoors, or the aging of various parts and other laboratory damages, including fading, Color changes, loss of luster, chalking, cracking, cracking, wrinkling, blistering, embrittlement, strength reduction, oxidation. The test results can be used to select new materials, improve existing materials, or evaluate changes in material formulations.

Technical Parameters

Light source	UV-B 313
Lamp life	≥3000h(Related to irradiance)
Lamp quantity	8 pcs
Wave length range	UV-B 313:280--315nm
Irradiation intensity	UV-B 313:1.0W/cm2
Center distance in lamp tube	70mm
Chamber temperature range	RT+5℃～85℃, tolerance:±3℃
Blackboard temperature range	40～85℃ under light, tolerance:±3℃
Heating	√
Condensation	√
Spray	√

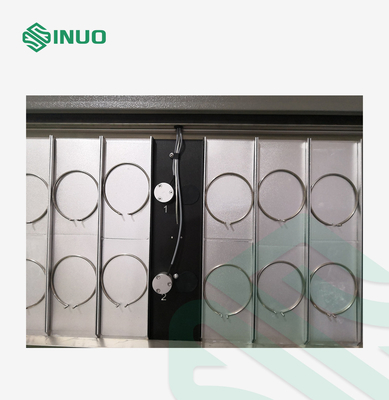

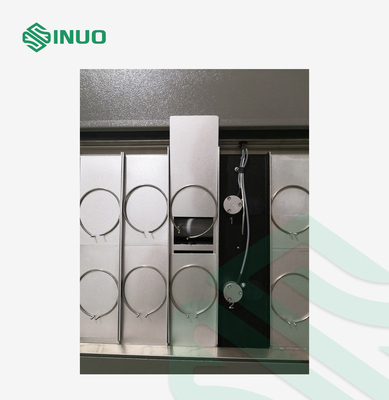

Standard sample holder	48 standard samples (75×150mm) can be placed
Total exposure area	5175cm²
Chamber dimensions	Width:141cm * depth:56 cm * height:135 cm
Required installation area	Width:≥260 cm, Depth:≥200 cm
Chamber inner material	SUS stainless steel plate
Enclosure material	Electrostatic spraying on A3 board
Control method	LCD touch screen controller, programmable
Weight	170kg
Power supply	Match client's local power supply requirements, well grounded
Water source	Pure water

UV Light Source

UV-B-313 simulated sunlight ultraviolet aging intensity is greater than UV-A, and the damage intensity is much greater than UV-A. It is suitable for the maximum degree accelerated UV aging test, and it can quickly provide test results. The short-wavelength UV it uses is stronger than the UV light waves commonly found on the earth. Although these UV light, which is much shorter than the natural wavelength, can accelerate the test to the greatest extent, it can also cause inconsistency and actual degradation of certain materials.

ISO 4892-3 UV Weathering Test Chamber Accelerated Aging Environmental Test Chamber 0
