Product Description

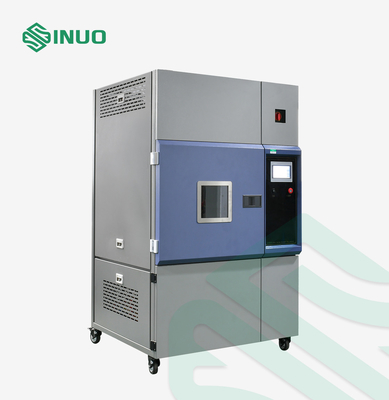

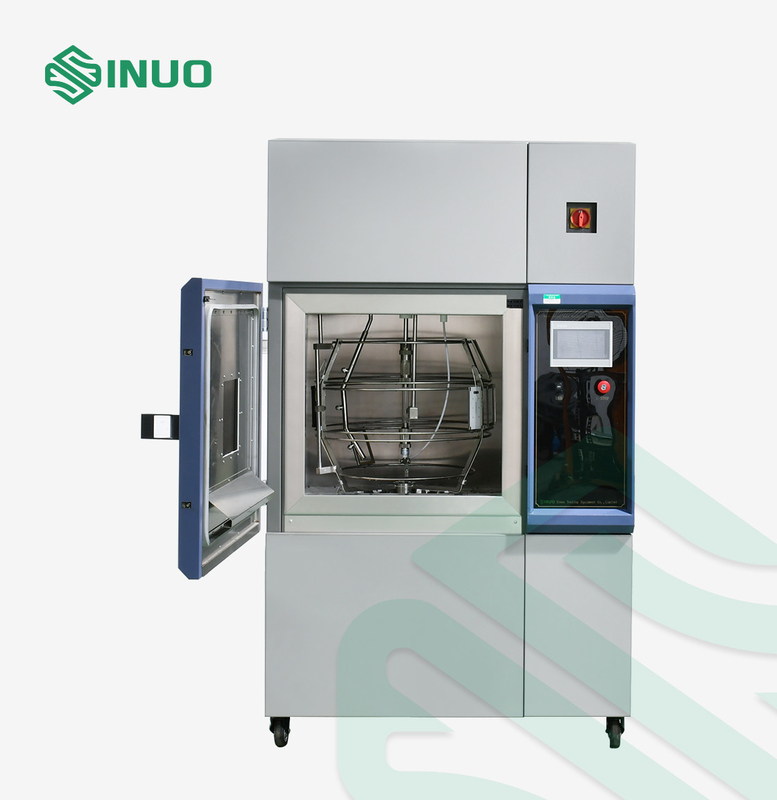

ISO 4892-2 Xenon Arc Lamp Acceleration Aging Environmental Test Chambers

Complied Standards & Clauses

ASTM G155 Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials

AATCC16 Colorfastness to Light

ISO 105-B04:1994 Textiles - Tests for colour fastness - Part B04: Colour fastness to artificial weathering: Xenon arc fading lamp test

ISO 4892-2:2006 Plastics - Methods of exposure to laboratory light sources - Part 2: Xenon-arc lamps

ISO11341:2004 Paints and varnishes-Artificial weathering and exposure to artificial radiation-Exposure to filtered xenon-arc radiation

ISO 16474-1:2013 Paints and varnishes -- Methods of exposure to laboratory light sources -- Part 1: General guidance

IEC60068-2-5:2010 Environmental testing-Part2-5:Tests-Test Sa: Simulated solar radiation at ground level and guidance for solar radiation testing

Equipment Overview

This equipment reproduces the destructive light waves existing in different environments by simulating the xenon arc lamp of the full sunlight spectrum, and can provide corresponding environmental simulation and accelerated tests for scientific research, product development and quality control.

The aging test is carried out by exposing the material sample to the light and thermal radiation of a xenon arc lamp to evaluate the light resistance and weather resistance of some materials under the action of a high temperature light source. Mainly used in automobiles, coatings, rubber, plastics, pigments, adhesives Agents, fabrics, aerospace, ships and ships, electronics industry, packaging industry, etc.

This xenon lamp weather resistance tester can be used to select new materials, change existing materials or evaluate changes in durability of materials after changes in composition. It can well simulate changes in materials exposed to sunlight under different environmental conditions.

Technical Parameters

Model	SN883-280L	SN883-500L	SN883-1000L
Inner box size w*d*h (mm)	600×600×800	800×800×800	1000×1000×1000
Outer box size w*d*h (mm)	1200×1345×1900	1400×1545×2100	1600×1745×2300

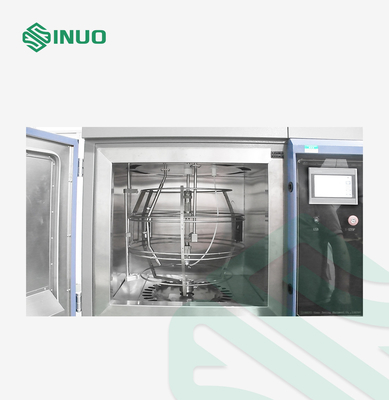

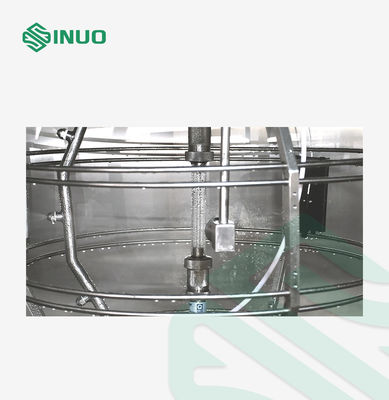

Diameter of turntable (mm)	Ф400	Ф600	Ф800
Temperature range	Rt+10℃～70℃
Black mark temperature	40℃～100℃ adjustable (light cycle); 25～85℃ (dark cycle)
Humidity range	30%～98%rh (dark); 20%～60%rh (light)
Temperature uniformity	±3℃
Temperature accuracy	±0.1℃
Humidity accuracy	±1％rh
Temperature and humidity sensor	Pt100ω/mv platinum resistance
Turntable speed	1～3r/min
Tube light source	1 water-cooled demostic lamp or imported brand lamp
Lamp life	Around 1200 hours
Lamp power	6.5KW
Effective exposure area	3760cm2～7500cm2
Light cycle time	1～999h, m, s continuously adjustable
Rain time	1～9999min continuous rainfall adjustable
Rain cycle	1～240min interval (off) rainfall adjustable
Water spray cycle	18min/102min or 12min/48min (water spray time/no water spray time)
Spray water pressure	0.12～0.15mpa
Nozzle aperture	Ф0.8mm
Standard sample size	75mm×150mm
Filter type	Window glass filter, solar filter, uv filter, you can choose any one
Xenon lamp radiation intensity	290～2450nm band 400～1120w/m2
	420nm band, 0.55～1.1w/m2
	340nm band, 0.35～0.7w/m2
	300～400nm band, 40w～60w
Material used	Outer box material: sus201 stainless steel or cold-rolled sheet paint
	Inner box material: sus304 high quality stainless steel
	Sample holder material: sus304 high quality stainless steel
	Door frame: high and low temperature aging resistant silicone rubber door seal
Conditions of use	Voltage: 380±10%v, 50±1%hz, power 15kw three-phase five-wire system
Environmental conditions	Temperature 5℃～30℃ relative temperature ≤85％rh air pressure 86kpa～106kpa
Safety protection device	Leakage, short circuit, over temperature, water shortage, motor overheating, overcurrent protection
