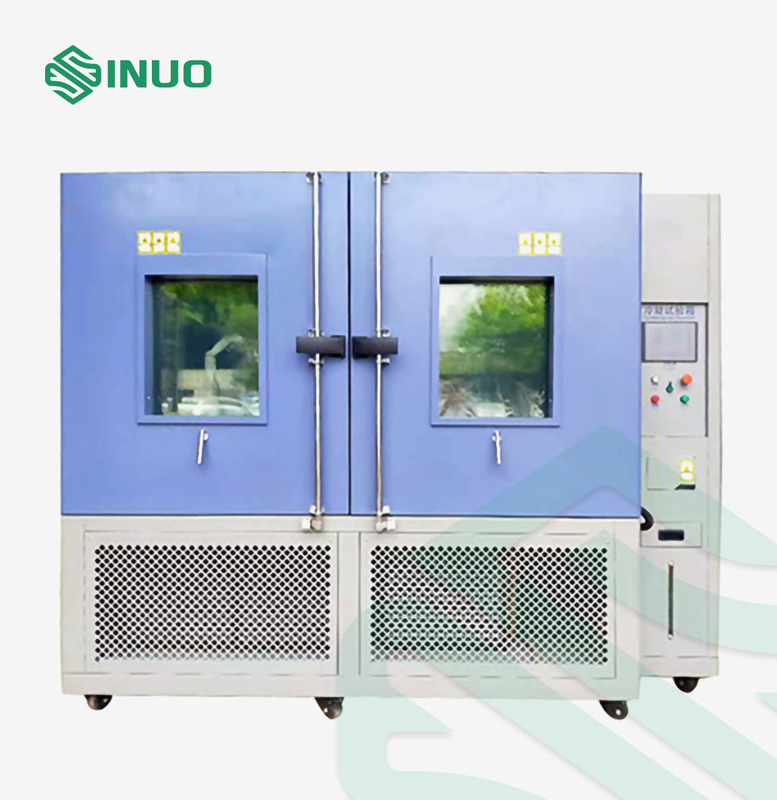

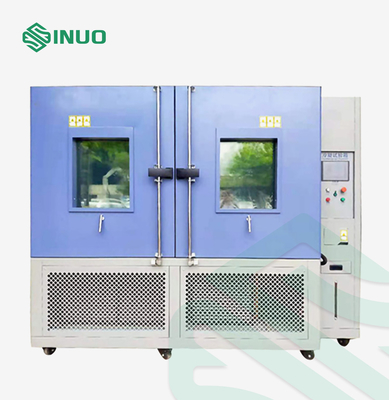

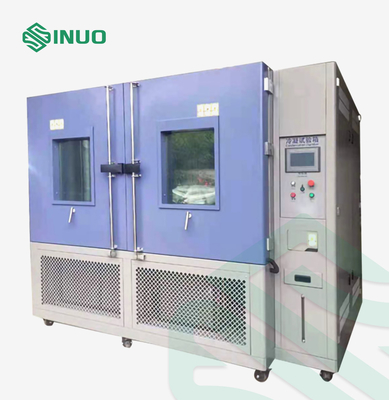

VW80000 Environmental Test Chamber EV Electric Vehicle Components Tester
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinuo |
| Certification: | Calibration Certificate (Cost Additional) |
| Model Number: | SN8817 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Customized |
| Packaging Details: | Plywood case |
| Delivery Time: | 60 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Applied Standard: | VW 80000, ISO 6270-2, Etc. | Inner Size: | Can Be Customized |
|---|---|---|---|
| Humidity Range: | 100%RH | Temperature Range: | RT～+605℃ |
| Heating Rate: | ≥10℃/30min | Cooling Rate: | ≥65℃/75min |
| Heating Method: | Electric Heating | Humidification System: | External Humidification |
| High Light: | VW80000 Environmental Test Chamber,EV Electric Vehicle Environmental Test Chamber,ISO 6270-2 ev test equipment |
||
Product Description
VW80000 Electric Vehicle Electric Components Condensation Test Chamber
Complied Standards & Clauses
ISO 6270-2 Paints and varnishes — Determination of resistance to humidity — Part 2: Procedure for exposing test specimens in condensation-water atmospheres
VW80000 clause 12.6 Electric and Electronic Components in Motor Vehicles up to 3.5t General Requirements, Test Conditions, and Tests
IEC 61300-2-48 Fibre optic interconnecting devices and passive components-Basic test and measurement procedures-Part 2-48: Tests-Temperature-humidity cycling and etc.
DIN 50017: atmospheres and their technical application-Condensation water test atmospheres
Equipment Overview
This testing machine is mainly used for the influence of humidity and temperature changes that may occur during operation, storage or transportation of optical fiber interconnection devices, electronics, communications, and aerospace products. The sample is placed in the test box and subjected to several temperature-humidity cycles defined in the relevant specifications. During the entire test, the attenuation of the sample is monitored.
Technical Parameters
| Size | Working area |
600*500*830mm(W*D*H) Can be customized |
| External size |
Approx. 1200*750*1300mm(W*D*H) Or according to actual design |
|
| Performance | Temperature range | Ambient～60℃ (common used temperature: 38℃/49℃/60℃) |
| Temperature fluctuation | ≤1℃ (≤±0.5℃, tested according to GB/T5170-2008) | |
| Temperature accuracy | 0.1 ℃ | |
| Temperature deviation | ±2℃ | |
| Humidity range | 100%RH (+0%, -5%, during condensation) | |
| Heating rate | ≥10℃/30min (with load of 20KG steel,meet condensation test of VW80000-2013) | |
| Cooling rate | ≥65℃/75min (with load of 20KG steel,meet condensation test of VW80000-2013) | |
| Temperature and humidity measuring parts | Use high-precision A-level PT100 temperature sensor for temperature measurement | |
| Heating method | Electric heating, PID adjustment, actuator: solid state relay | |
| Heating system | New-type ceramic heating frame, with heating wire imported from Germany in the middle, thick wire diameter, high temperature resistance, dry burning resistance | |

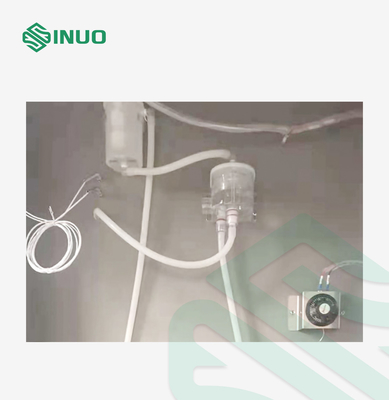

| Humidification system | External humidification, the humidification tube adopts U-shaped design and over-temperature probe hole, | |
| Dehumidification system | Using evaporator coil dew point temperature laminar flow contact dehumidification method | |
| Water supply system | The humidification water supply adopts automatic control, and the residual water can be recycled, saving water and reducing consumption | |
| Cooling System | Fully enclosed Tecumseh compressor imported from France, using R404 and R23 DuPont environmentally friendly refrigerant | |

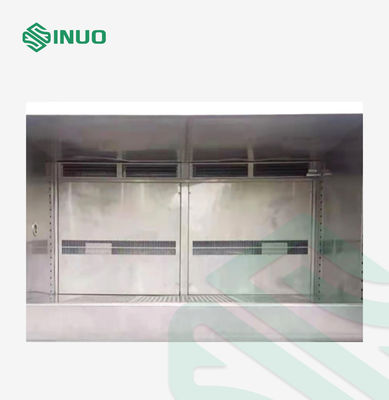

| Wind tunnel | Forced circulating air duct to ensure uniform temperature in the working room; heaters, coolers, and temperature sensors are installed in the air duct | |
| Condensate outlet | With outlet holes for studio condensate and unit condensate | |
| Timing range | 1～9999 mins/hours | |
| Materials | Outer wall material | A3 iron plate sprayed |
| Inner wall material | SUS304 Stainless steel plate | |
| Insulation material | Rigid polyurethane foam | |
| Observation window | Three-layer explosion-proof tempered glass window | |
| Lead hole | 2 Φ100mm lead holes, with cover and soft plug, located on the left and right walls of the chamber | |
| Sample rack | 2PCS, SUS304 stainless steel material, adjustable spacing storage track, sample rack can be adjusted up and down according to needs, evenly bearing 30KG/layer. | |
| Light | There is a lighting lamp on the top of the observation window, which is controlled by the switch outside the door, which is convenient and clear to observation | |
| Movable casters |
4 movable casters
|
|
| Humidification tank | High quality 304 stainless steel water tank | |
| Control element | Using MCGS programmable temperature and humidity controller (7-inch 16-bit true color touch screen); English menu operation mode, 120 groups memory program, each program group contains 1200 program segments, all loops, up to 999 times. Controller: The controller with English display has the function of self-diagnosis, prompts the cause of failure and treatment method, records test data and process, and has a standard RS232 or U disk communication interface. | |
