Product Description

IEC 60529 IP56 Protection Against Foreign Object Dust Test Chamber

Complied Standards & Clauses

IEC60529:2013 “Degrees of protection provided by enclosure (IP code)” IP5 & IP6.

Equipment Overview

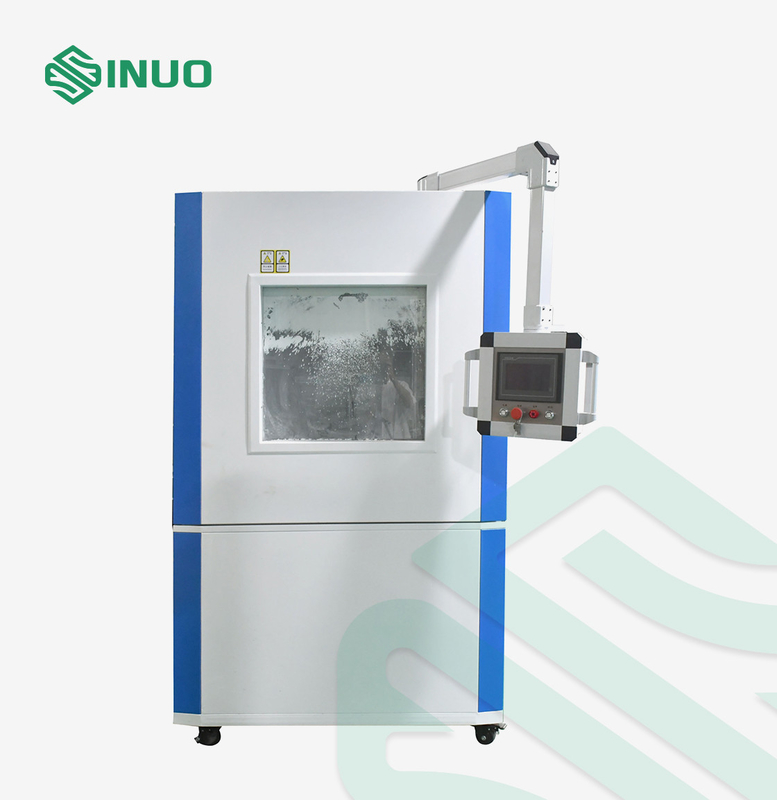

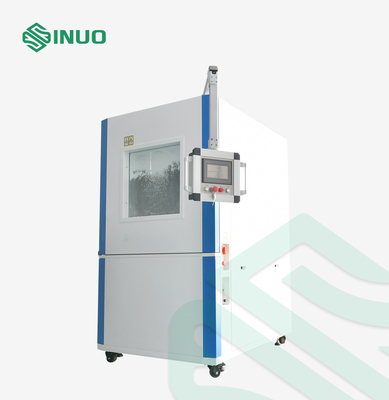

Structure: The machine adopts a closed chamber structure, a suspended man-machine interface operation device, a large visual window, the test circulates inside the cabinet. The inner chamber adopts a mirror panel and a special air duct design, which ensures to produce a standard concentration of laminar airflow in the chamber, there is a vacuum suction device is arranged.

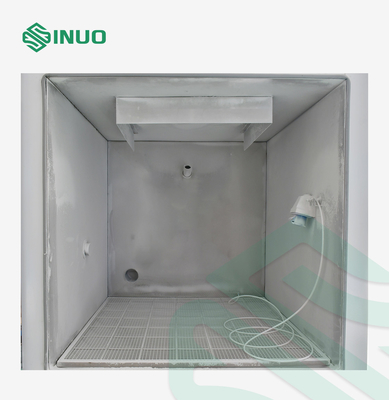

The main structure includes outer chamber, inner chamber, dust suction port, dust recycling funnel, circulating dust blowing device, vacuum system, dust storage tank, flow valve, heating system, reverse flow blade, protective plug.

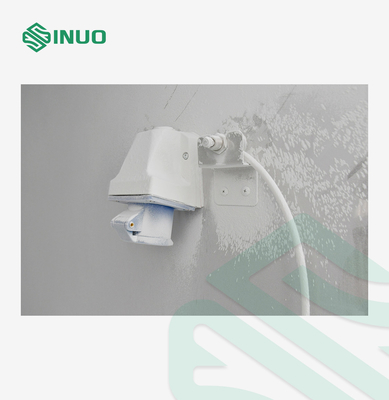

Samples and Restrictions: Electrical and electronic products, automobiles & motorcycle parts, seals, lamps

Application: To verify the performance of the use, storage and transportation of electronic and electrical products, automobiles & motorcycle parts, seals and lamps in a dusty environment, to determine the possible harmful effects to the product by the particles carried by the air stream.

Principle: There is a conical funnel with dust collection port at the bottom; the suction port of the high-pressure turbine circulation fan is installed at the dust extraction port (at the bottom), and the collected dust is sent to the top of the inner chamber and freely sprinkle from top to bottom.

It can simulate an open, dusty air environment condition induced by the natural environment or by human disturbances such as vehicle motion.

Use Environment: Power supply: AC380V±5%/50Hz,3KVA or match client’s local power supply requirements

Use place: temperature 15-35 ° C, relative humidity 25%-75%, atmospheric pressure 86~106kpa (860 mbar-1060 mbar); no sharp shaking, no vibration, no electromagnetic interference, no dust, no explosive & corrosive gas, with good heat dissipation.

Technical Parameters

Model	SN441-216L	SN441-512L	SN441-1000L
Chamber Size	Inner size: WDH= 600× 600×600mm	Inner size: WDH= 800× 800×800mm	Inner size: WDH= 1000× 1000×1000mm
	External size: WDH=850×1050×1800mm	External size: WDH=1050×1250×2000mm	External size: WDH=1250×1450×2200mm
Control & Operation	PLC & touch screen
Square-meshed Sieve	Nominal wire diameter: Ф50µm,nominal width of a gap between wires: 75µm
Talcum Powder	Dry talcum powder which can pass through the square-meshed sieve
Dust Concentration	The amount of talcum powder in the test chamber is 2Kg /m³
Air Velocity	≤2m / s
Air Flow Meter	1-25L/min, digital display
Test Time	1s~99 H 59 m 59s, can be preset
Dust Blowing Period	Stop/blowing time: 1s~99 H 59 m 59s, can be preset
Blowing Sequence	OFF-ON-OFF
Vacuum Pumping Speed	60-600L/min
Blower	Full plastic centrifugal fan
Heating Device	New ceramic heating frame
Safety Protection	Phase sequence protection, leakage protection, over temperature protection, abnormal protection
