Product Description

IEC 60529 IPX1 IPX2 Water Ingress Vertical Drip Testing Equipment


Complied Standards & Clauses


IEC60529:2013 “Degrees of protection provided by enclosure (IP code)” IPX1 &IPX2

Equipment Overview

 Samples and Restrictions: Electrical and electronic products, automobiles, motorcycle parts, communication products, household appliances, outdoor lighting and signal devices, etc.

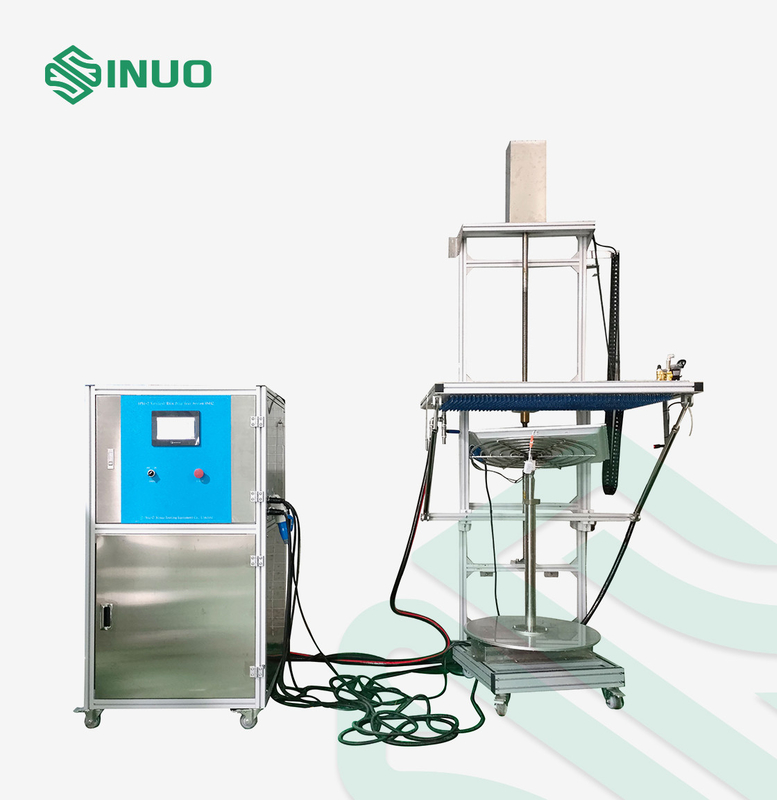

Structure: The test equipment consists of a drip mechanism, an electrical control cabinet and a turntable. The bracket of drip box is wall-hanging and with anti-drop function, which can lift automatically controlled by motor. The turntable has a rotation speed of 1r/min, used for IPX1 test; the turntable can be tilted 15°, used for IPX2 test. The test equipment is equipped with a water filter cleaning device to prevent pinhole blockage. This whole system adopts open structure.

Application: To verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water dripping at degree IPX1 ans IPX2.

Principle: Ensure that the dripping speed reaches the standard required value by controlling the water supply flow, the test equipment can produce a uniform flow of water drops over the whole area of the enclosure.

Use Environment: Power supply: AC380V±5%/50Hz, 3KVA, or match client’s local power supply requirements.
Use place: temperature 15-35 ° C, relative humidity 25%-75%, atmospheric pressure 86 ~ 106kpa (860 mbar -1060 mbar), there should be equipped with lighting and waterproof leakage switch (or socket), the ground needs to be flat, and the water intake and drainage function should be good.
Water source: clean water or tap water without impurities, equipped with water cleaning filter.

Technical Parameters

Control & Operation	PLC and touch screen intelligent control system
Drip Area	WD=1000×1000mm, other sizes can be customized
Drip Height	200mm distance of the needle to the sample is automatically measured by infrared sensor
Drip Speed / Water Flow	1+0.5 0mm/min or 3+0.5 0mm/min switchable, rainfall is digitally controlled

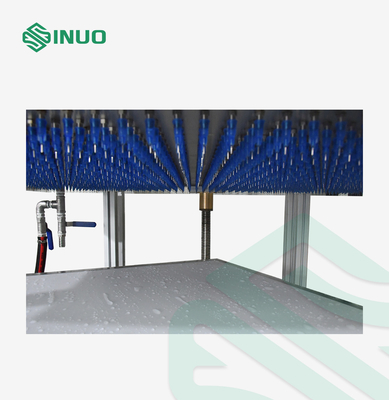

Needle Pinhole Aperture	Φ0.4mm
Drip Hole Spacing	20mm×20mm

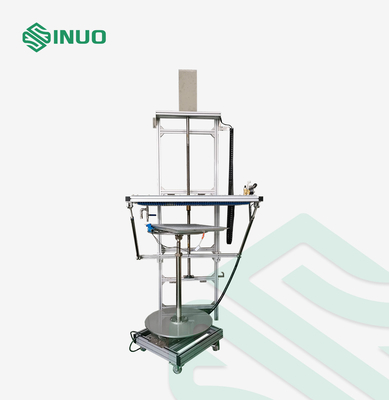

Turntable	Diameter: Φ600mm, can be tilted 15°, rotating speed 1r/min, with lifting support frame, bearing capacity ≤50kg
Drip Box Lifting	Driven by motor, adjustable from 1100-1800mm, screw guide ensures smooth lifting and self-locking
Test Time	0-99.9min, can be preset
Installation Method	Wall-mounted

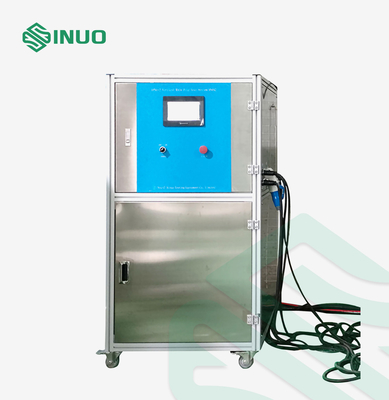

Water Storage System	The control box and water storage tank are built in one cabinet, the water storage tank is equipped with a water level float valve to automatically control the water inlet, and has high and low water level alarm detection, to effectively prevent the pump from being damaged due to dry water.
Safety Protection	Phase sequence protection, leakage protection, water shortage protection, abnormal protection
Equipment Dimensions	WDH=1250×1450mm×2450mm
