IPX1 IPX2 Water Ingress Testing Equipment Vertical Rain Drip Box IEC 60529
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinuo |
| Certification: | Calibration Certificate (Cost Additional) |
| Model Number: | SN443 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Customized |
| Packaging Details: | Plywood Case |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Applied Standard: | IEC60529 | Inner Size: | 800×800mm×800mm |
|---|---|---|---|
| Drip Area: | WD=600×600mm | Drip Height: | 200mm |
| Needle Pinhole Aperture: | Φ0.4mm | Drip Hole Spacing: | 20mm×20mm |
| Test Time: | 0-99.9min Can Be Preset | Drip Speed: | 1+0.5 0mm/min Or 3+0.5 0mm/min |
| High Light: | SUS304 Water Ingress Testing Equipment,IPX1 IPX2 Water Ingress Testing Equipment,IEC 60529 rain spray test chamber |
||
Product Description
IEC 60529 IPX1 IPX2 Vertical Rain Drip Box Water Ingress Test Chamber
Complied Standards & Clauses
IEC60529:2013 “Degrees of protection provided by enclosure (IP code)” IPX1 and IPX2.

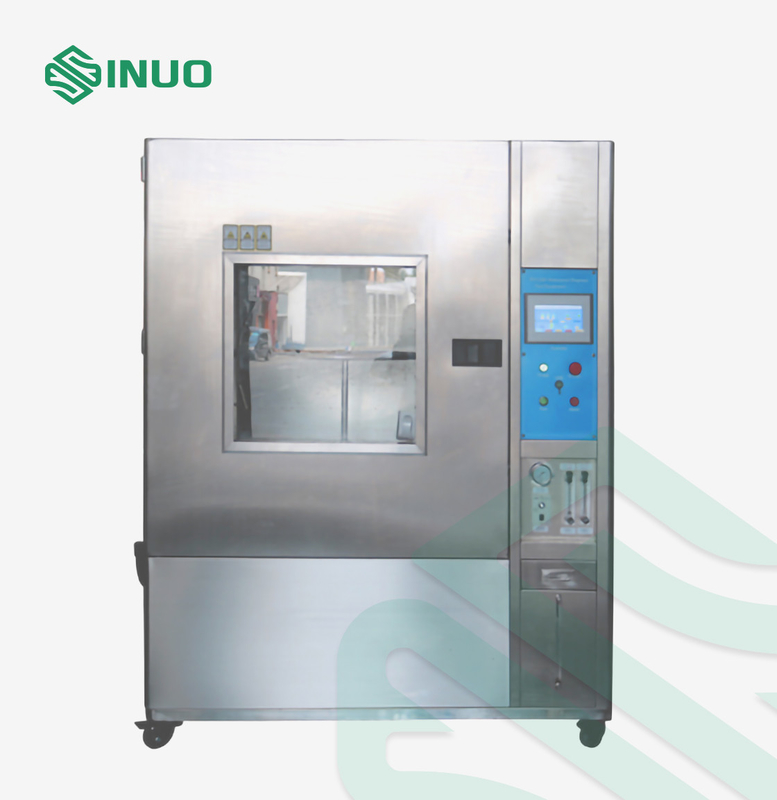

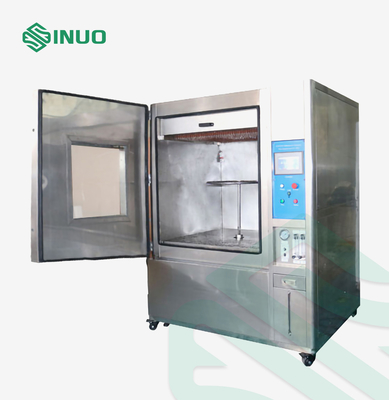

Equipment Overview

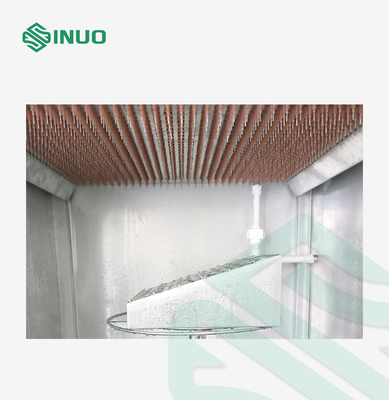

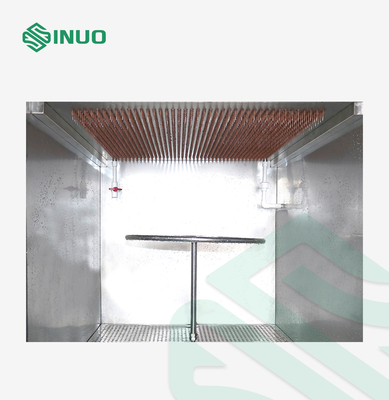

Structure: The device is composed of a drip mechanism and an electric control cabinet. The drip box is fixed to the top of the chamber. There is a turntable, has a rotation speed of 1r/min, used for IPX1 test; With 15° sample support block, used for IPX2 test; the height of the turntable can be adjusted manually, matching the distance 200mm from the needle to the sample. The test equipment is equipped with a water filter cleaning device to prevent pinhole blockage. This whole system adopts chamber structure.
Samples and Restrictions: Electrical and electronic products, automobiles, motorcycle parts, communication products, household appliances, outdoor lighting and signal devices, etc
Application: To verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water dripping at degree IPX1 and IPX2.
Principle: Ensure that the dripping speed reaches the standard required value by controlling the water supply flow, the test equipment can produce a uniform flow of water drops over the whole area of the enclosure.
Use Environment: Power supply: AC380V±5%/50Hz, 3KVA, or match client’s local power supply requirements.
Use place: temperature 15-35 ° C, relative humidity 25%-75%, atmospheric pressure 86 ~ 106kpa (860 mbar -1060 mbar), there should be equipped with lighting and waterproof leakage switch (or socket), the ground needs to be flat, and the water intake and drainage function should be good.
Water source: clean water or tap water without impurities, equipped with water cleaning filter.
Technical Parameters
| Control & Operation | PLC and touch screen intelligent control system |
| Chamber Size |
Inner: WDH=800×800mm×800mm |
| Drip Area | WD=600×600mm, other sizes can be customized |
| Drip Height | 200mm distance of the needle to the sample is achieved by adjusting the height of the turntable or raising the specimen |
|
Drip Speed |
1+0.5 0mm/min or 3+0.5 0mm/min adjustable |
| Needle Pinhole Aperture | Φ0.4mm |
| Drip Hole Spacing | 20mmx20mm |
| Turntable | Diameter: Φ400mm, rotation speed:1-5r/min, with a 15° sample support block and a lifting bracket, bearing capacity ≤20kg |
| Drip Box Position | Located at the top of the inner chamber, fixed |
| Test Time | 0-99.9min, can be preset |
| Chamber Material | Inner chamber adopts SUS304 stainless steel |
| Water Circulatory System | There is a clean filter device at the water inlet, and the drip water is automatically collected into the storage tank through the chassis and can be recycled. |
| Safety Protection | Phase sequence protection, leakage protection, water shortage protection, abnormal protection |
