IPX4 IEC 60529 Test Equipment Oscillating Tube Rain Moisture Test Chamber

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN445

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood Case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30 sets/month
Contact Now

Detail Information

Applied Standard: IEC 60529 Inner Size: WDH=900×900mm×900mm
Oscillating Tubes: R200mm, R400mm Needle Pinhole Aperture: Φ0.4mm
Oscillating Tube Swing Angle: IPX3:120°(±60°); IPX4:350°(±175°) Oscillating Tube Swing Speed: IPX3:4s /cycle(2×120°); IPX4:12s /cycle(2×350°);
Drip Hole Spacing: 20mm×20mm Spray Water Flow: 1-10L/min Adjustable
High Light:

IPX3 IEC 60529 test equipment

,

Oscillating Tube IEC 60529 test equipment

,

Rain moisture test chamber

Product Description

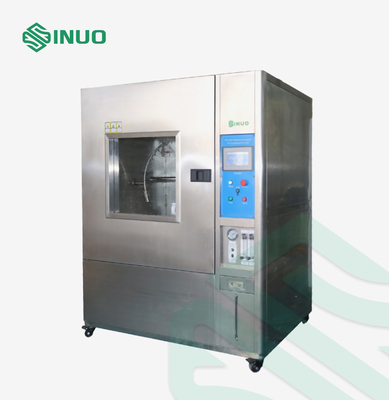

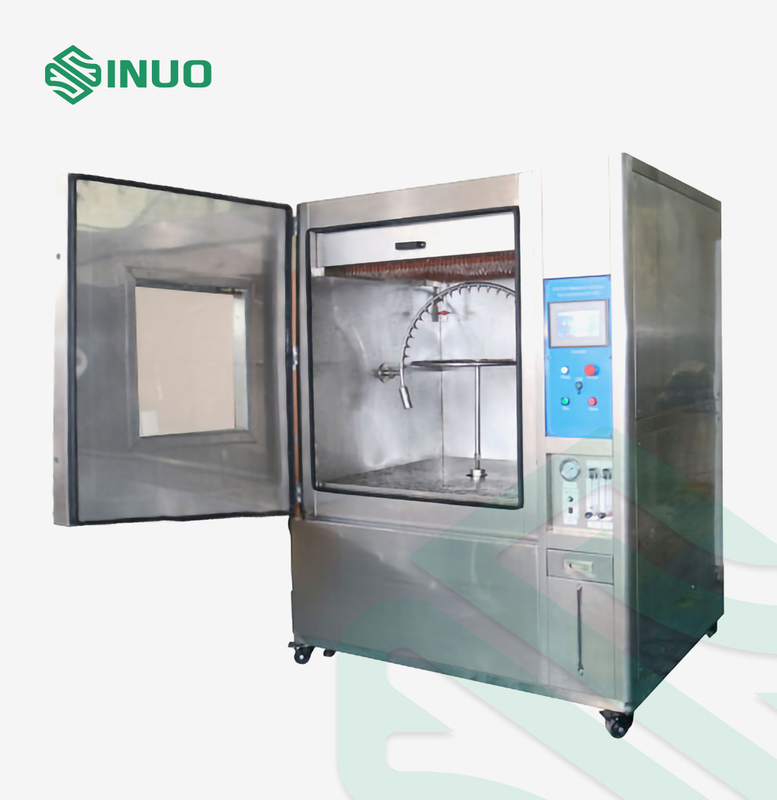

IEC 60529 IPX3 IPX4 Oscillating Tubes Rain Moisture Test Chamber

Complied Standards & Clauses



IEC 60529:2013 “Degrees of protection provided by enclosure (IP code)” IPX3 & IPX4.

Equipment Overview

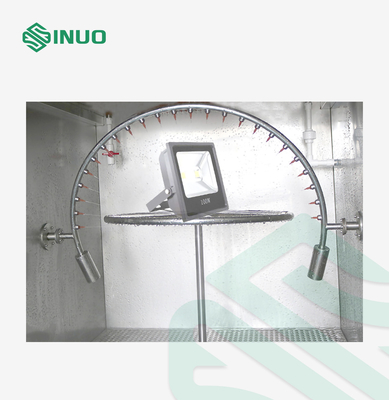

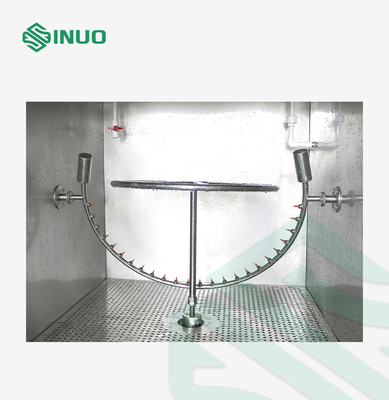

Structure: The test equipment consists of an oscillating mechanism, an electrical control cabinet and a turntable. The oscillating mechanism is mounted in the chamber, the tube is caused to oscillate by motor driving. The turntable has a rotation speed of 1r/min, to make the enclosure of the specimen to be splashed in all directions. The test equipment is equipped with a water filter cleaning device to prevent pinhole blockage. This whole system adopts chamber structure.

Application: To verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water spraying and splashing at degree IPX3 and IPX4.

Samples and Restrictions: Electrical and electronic products, automobiles, motorcycle parts, communication products, household appliances, outdoor lighting and signal devices, etc

Principle: Ensure that the water spraying and splashing speed reaches the standard required value by controlling the water supply flow, make the enclosure of the specimen to be splashed in all directions.

Use Environment:
Power supply: AC220V±5%/50Hz, or match client’s local power supply requirements.
Use place: temperature 15-35 ° C, relative humidity 25%-75%, atmospheric pressure 86 ~ 106kpa (860 mbar -1060 mbar), there should be equipped with lighting and waterproof leakage switch (or socket), the ground needs to be flat, and the water intake and drainage function should be good.
Water source: clean water or tap water without impurities, equipped with water cleaning filter

Technical Parameters


Control & OperationPLC and touch screen intelligent control system
Chamber Size

Inner size: WDH=900×900mm×900mm,
outer size: WDH=1400×1120mm×1750mm
Can be customized

Oscillating TubesR200, R400, made of stainless steel
Needle Pinhole ApertureΦ0.4mm
Spray Holes Distribution

IPX3:over an arc of 60° either side of the center point (120°)
IPX4:over the whole 180° of the semicircle
Hole spacing: 50mm

IPX3/4 SwitchingSwitching by changing a certain number of blind hole needles or through-hole needles
Oscillating AngleIPX3:120°(±60°); IPX4:350°(±175°)
Oscillating Speed

IPX3:4s /cycle(2×120°);
IPX4:12s /cycle(2×350°);

Water Flow1-10L/min adjustable
Test Time0.01S~99.9 min, can be preset
TurntableDiameter:Φ400mm, rotation speed: 1r/min, can pause at 4 angles, lifting height: 350-600mm, load capacity: ≤50kg
Pressure Gauge0~0.25MPa
Water Circulation SystemThe test is processed in the chamber, the equipment has a bilt-in water tank, the water can be recycled. And the inner chamber has a water collecting device, the test spraying and splashing water is automatically collected into the water storage tank through the chassis. The water inlet can be automatically controlled through the float valve in the water tank, the system can give out high and low water level alarm detection alarms, which can effectively prevent the pump from being damaged due to dry water shortage. Also, there is a cleaning filter device at the water inlet position.
Safety ProtectionPhase sequence protection, leakage protection, water shortage protection, abnormal protection.
