IEC 60529 IPX3/4 Handheld Water Spray Nozzle IP Code Testing Equipment
Complied Standards & Clauses
IEC 60529:2013 “Degrees of protection provided by enclosure (IP code)” IPX3 & IPX4.
Equipment Overview

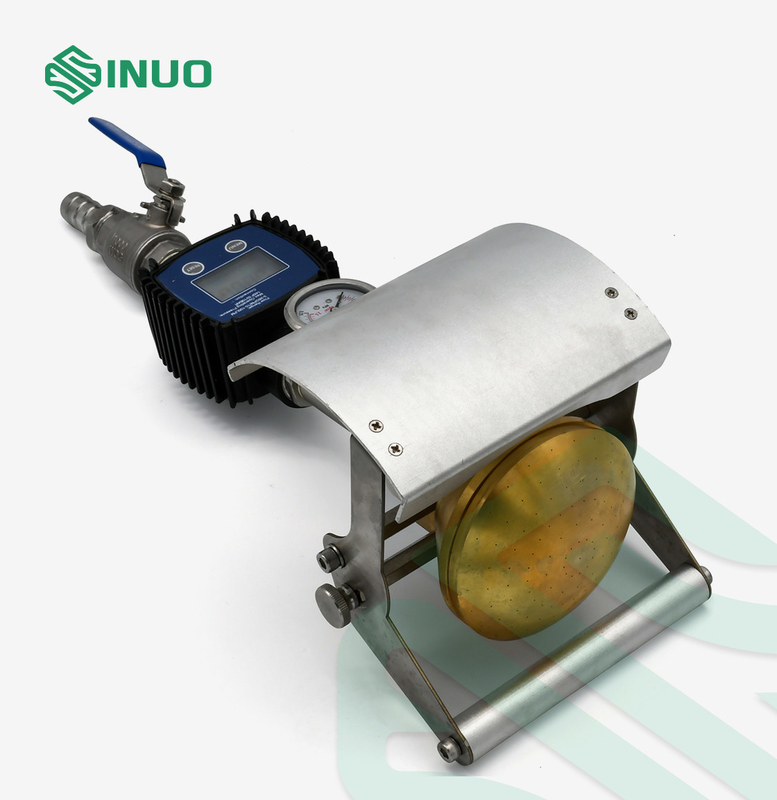

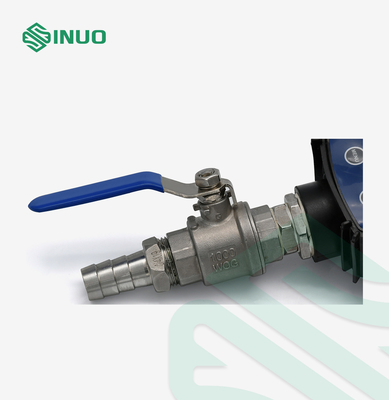

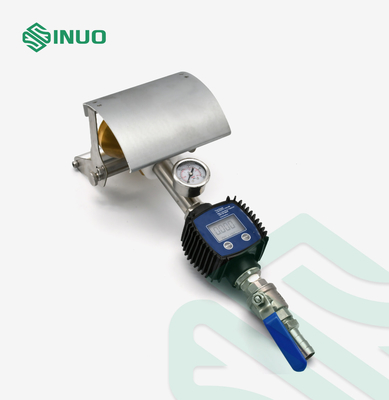

Structure: This device is manufactured according IEC 60529 figure 5, it can achieve IPX3 / IPX4 hand-held spraying test by connecting water pipe.
Samples and Restrictions: Electrical and electronic products, automobiles, motorcycle parts, communication products, household appliances, outdoor lighting and signal devices, etc
Application: To verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water spraying and splashing at degree IPX3 and IPX4.
Principle: Ensure that the water spraying and splashing speed reaches the standard required value by controlling the water supply flow, make the enclosure of the specimen to be splashed in all directions.
Use Environment:
Use place: temperature 15-35 ° C, relative humidity 25%-75%, atmospheric pressure 86 ~ 106kpa (860 mbar -1060 mbar), there should be equipped with lighting and waterproof leakage switch (or socket), the ground needs to be flat, and the water intake and drainage function should be good.
Water source: clean water or tap water without impurities, equipped with water cleaning filter.
Technical Parameters

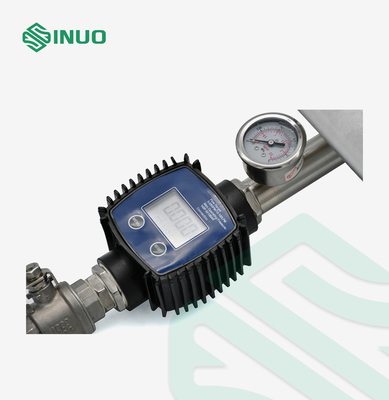

| Parameters of Spray Nozzle | Outer diameter: Ф102mm, spherical diameter: SФ75.5mm, 1 hole at the center, 2 inner circles of 12 holes at 30° pitch,4 outer circles of 24 holes at 15° pitch , total 121 holes of Ф0.5mm, made of brass. |
| Water Flow | 10L/min±5%, flow meter is adjustable |
| Pressure | 50～150Kpa, the pressure gauge measuring range: 0～0.25Mpa |
| Moving Shield | Made of aluminum, can be detachable |
| Optional | Configure with 18L/min rotameter: 1 piece, water pipe: 3 M, Hoop: 4 pieces |
