Handheld Hose Nozzle IPX6 IPX5 Water Ingress Testing Equipment IEC 60529

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN447

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Carton Box
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Contact Now

Detail Information

Applied Standard: IEC60529 Test Contents: IPX5 And IPX6
Nozzle Internal Diameter: Ф6.3mm, Ф12.5mm Water Spray Distance: 2.5~3m
Test Duration: Likely 1min/m² (minimum: 3 Min) Pressure Gauge: 0~0.25MPa
SN447-1 Delivery Rate: 12.5±0.625L/min SN447-2 Delivery Rate: 100±5 L/min
High Light:

IPX6 Water Ingress Testing Equipment

,

IPX5 Water Ingress Testing Equipment

,

IEC 60529 test equipment

Product Description

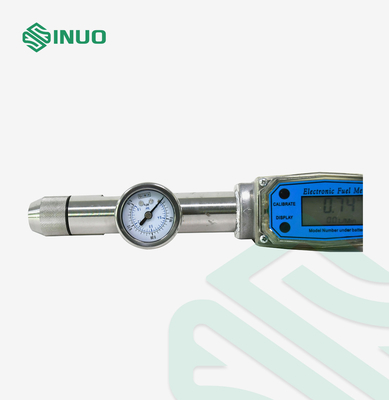

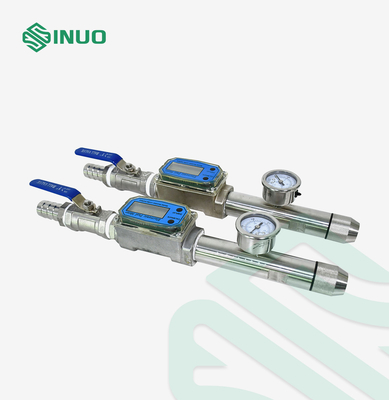

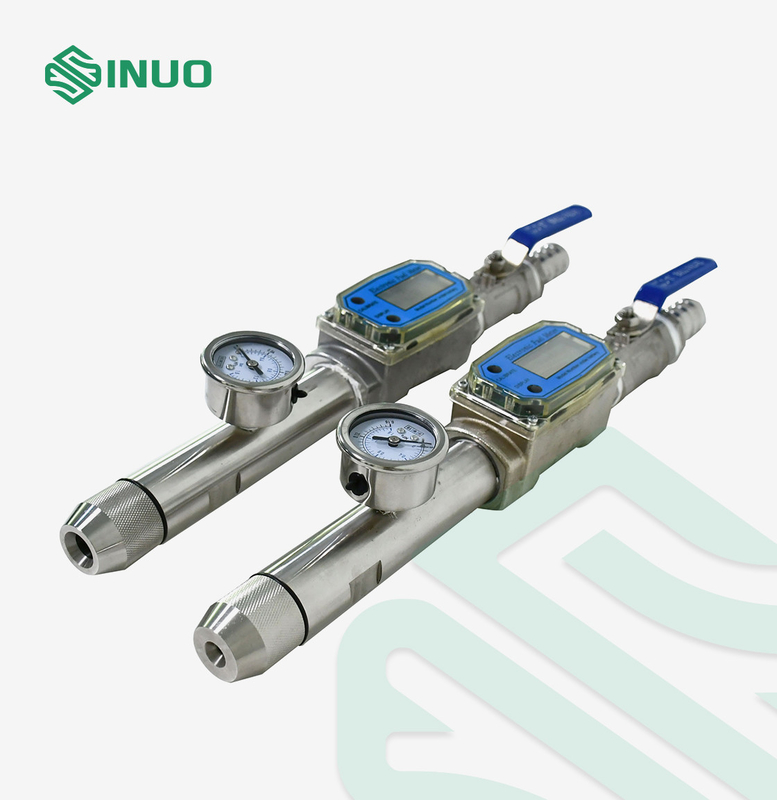

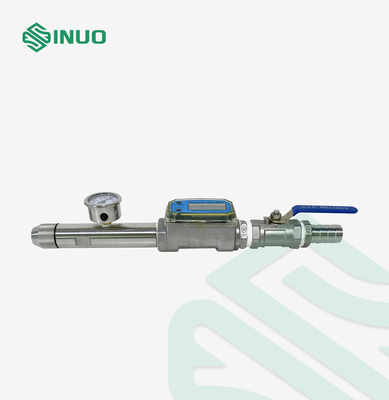

IEC 60529 IPX5/6 Handheld Hose Nozzle Water Ingress Testing Equipment



Complied Standards & Clauses




IEC60529:2013 “Degrees of protection provided by enclosure (IP code)” IPX5 & IPX6.



Equipment Overview


Samples and Restrictions: Electrical and electronic products, automobiles, motorcycle parts, communication products, household appliances, outdoor lighting and signal devices, etc



Structure: This device is manufactured according to IEC 60529 figure 6.



Application: To verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water jets at degree IPX5 and IPX6.



Principle: Ensure that the water jet speed reaches the standard required value by controlling the water supply flow, the enclosure is sprayed from all practicable directions with a stream of water from a standard test nozzle as shown in IEC 60529 figure 6.



Use Environment:

Use place: temperature 15-35 ° C, relative humidity 25%-75%, atmospheric pressure 86 ~ 106kpa (860 mbar -1060 mbar), there should be equipped with lighting and waterproof leakage switch (or socket), the ground needs to be flat, and the water intake and drainage function should be good.

Water source: clean water or tap water without impurities, equipped with water cleaning filter.



Technical Parameters


Model SN447-1 SN447-2
Nozzle Internal Diameter Ф6.3mm Ф12.5mm
Delivery Rate 12.5±0.625L/min, flow meter is adjustable 100±5 L/min, flow meter is adjustable
Distance from Nozzle to Enclosure Surface 2.5~3m 2.5~3m
Core of the Substantial Stream Circle of approximately 40 mm diameter at 2.5 m distance from nozzle Circle of approximately 120 mm diameter at 2.5 m distance from nozzle
Test Duration Likely 1min/m² (minimum: 3 min) Likely 1min/m² (minimum: 3 min)
Pressure Gauge 0~0.25MPa 0~0.25MPa
Optional Configure with 0-18L/min rotameter, flexible hose Configure with 20-120L/min rotameter, flexible hose
