IPX7 Water Ingress Protection Test Equipment IEC 60529 Temporary Immersion

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN4410

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood Case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30 sets/month
Contact Now

Detail Information

Applied Standard: IEC 60529 Control & Operation: Push-button Operation
Inner Size: Can Be Customized Water Depth: 1200mm Or Customized
Basket Size: Can Be Customized Lifting Control: Driven By Electric Hoist
Test Duration: 30 Min Tank Material: Stainless Steel
High Light:

30min ingress protection test equipment

,

IPX7 Water ingress protection test equipment

,

Temporary Immersion ipx4 test equipment

Product Description





IEC 60529 IPX7 Temporary Immersion Water Ingress Testing Equipment



Complied Standards & Clauses




IEC60529:2013 “Degrees of protection provided by enclosure (IP code)” IPX7.



Equipment Overview


Samples and Restrictions: Electrical and electronic products, automobiles, motorcycle parts, communication products, household appliances, outdoor lighting and signal devices, etc.

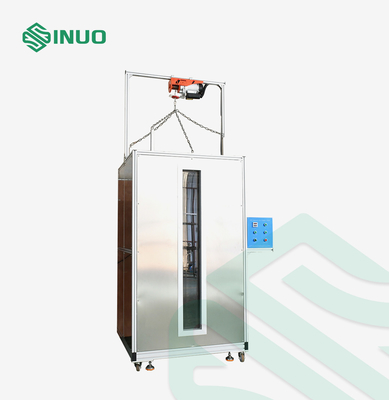

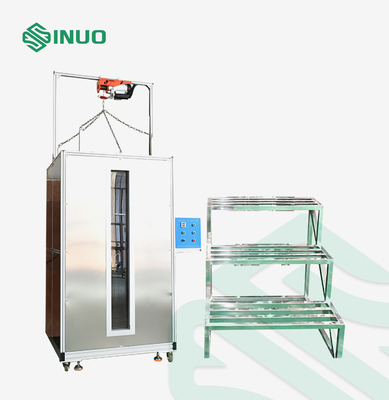

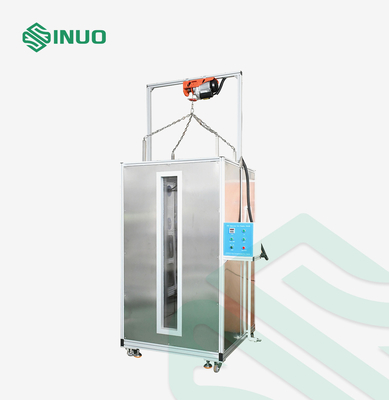

Structure: The test chamber is made of stainless-steel frame, and transparent transparent thickened tempered glass. The basket lifting is driven by electric hoist, which is convenient for operation.



Application: To verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under temporary immersion in water at degree IPX7.



Principle: By controlling the depth of the sample in the water to achieve a standard equivalent pressure, to produce water pressure across the entire surface of the specimen enclosure.



Use Environment:

Use place: temperature 15-35 ° C, relative humidity 25%-75%, atmospheric pressure 86 ~ 106kpa (860 mbar -1060 mbar), there should be equipped with lighting, the ground needs to be flat, and the water intake and drainage function should be good.

Water source: clean water or tap water without impurities, equipped with water cleaning filter.



Technical Parameters


Control & Operation Push-button operation
Chamber Size

Inner chamber: WDH=800×800mm×1200mm

Outer chamber: WDH=860×860mm×1800mm

Or can be customized

Highest Water Depth

1200mm, with a scale, the resolution of scale is 1mm

Or can be customized

Basket Size Stainless steel basket: WD=500×500mm

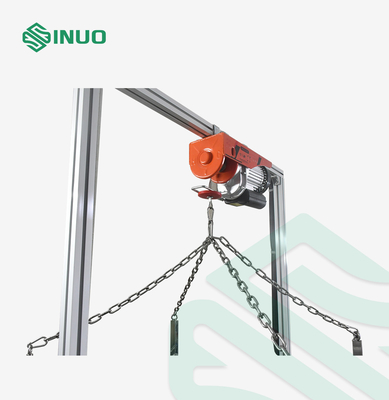

Lifting Control Driven by electric hoist
Test Duration 30min, manually controlled
Material Stainless steel frame, tempered glass
