| Brand Name: | Sinuo |
| Model Number: | SN4411 |
| MOQ: | 1 |
| Price: | Customized |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets/month |
IEC 60529 IPX8 50M Water Pressure Continuous Immersion Test Equipment
Complied Standards & Clauses
IEC60529:2013 “Degrees of protection provided by enclosure (IP code)” IPX8.
Equipment Overview
Samples and Restrictions: Electrical and electronic products, automobiles, motorcycle parts, communication products, household appliances, outdoor lighting and signal devices, etc

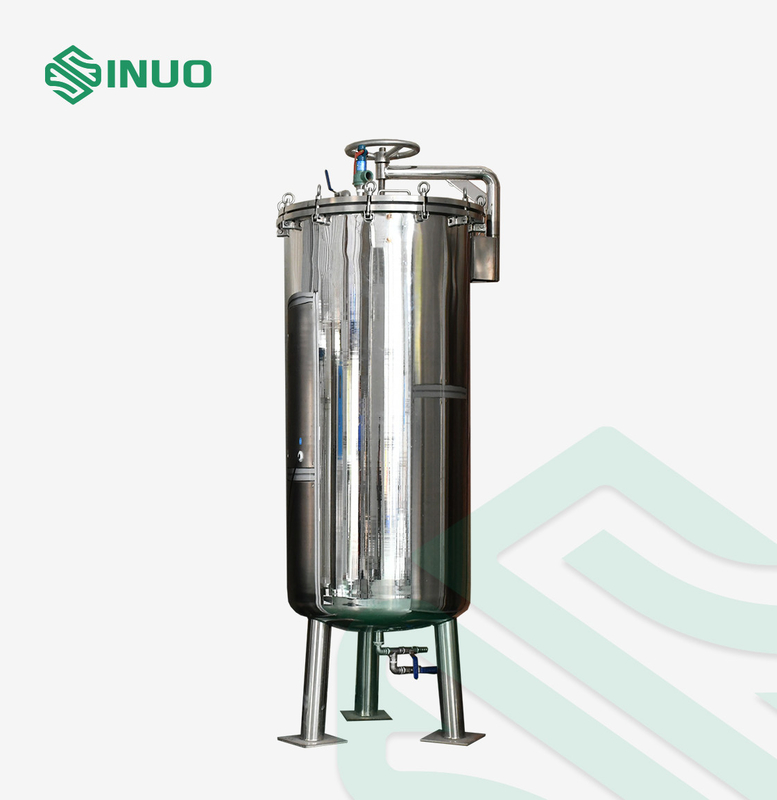

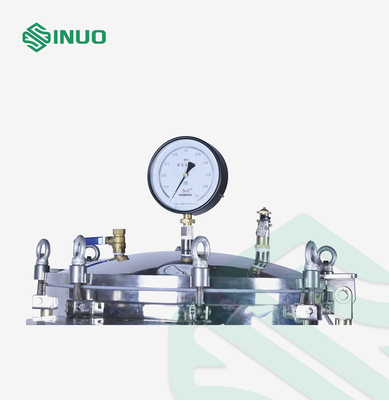

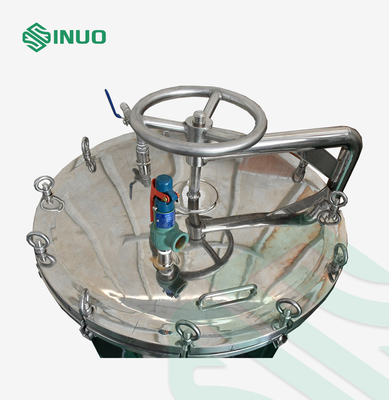

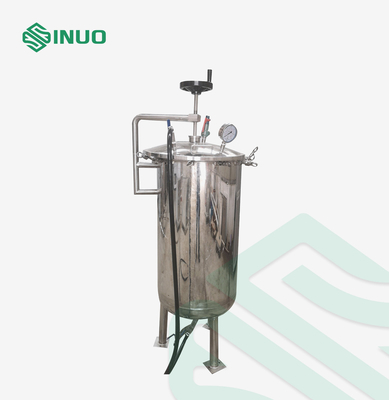

Structure: The test chamber is made of stainless steel, and the cover is automatically lifted by a cylinder. It is easy for operation, with functions of safety valve protection and automatic pressure relief.
Application: To verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under continuous immersion in water at degree IPX8.
Principle: By controlling the depth of the sample in the water to achieve a standard equivalent pressure, and simulating water depth pressure by applying a certain pressure of air pressure, to produce water pressure across the entire surface of the specimen enclosure. The water depth range simulation of IPX8 is harsher than IPX7.
Use Environment:
Use place: temperature 15-35 ° C, relative humidity 25%-75%, atmospheric pressure 86 ~ 106kpa (860 mbar -1060 mbar), there should be equipped with lighting, the ground needs to be flat, and the water intake and drainage function should be good.
Water source: clean water or tap water without impurities, equipped with water cleaning filter.
Technical Parameters
| Control & Operation | Push-button operation |
| Chammber Size |
Inner size: Ф600×1200mm, outer size: WDH=800×980mm×1850mm |
| Water Depth Simulation Range | 0-50 m |
| Air Pressure Corresponding Adjustment Range | 0-0.5MPa, can be automatically adjusted by pressure sensor, accuracy: 0.001MPa |
| Safety Valve Discharge Pressure | 0.55MPa |
| Test Duration | 0-9999 min |
| Safety Protection | Leakage protection, short circuit protection, safety valve overpressure protection |
