IPX8 Water Ingress Testing Equipment 0.5MPa High Pressure Water Tank IEC 60529

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN4411-2

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood Case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30 sets/month
Contact Now

Detail Information

Applied Standard: IEC 60529 IP Code: IPX8
Water Tank Size: Ф600×1200mm Water Depth Simulation: 0-50 M
Air Pressure: 0-0.5MPa Valve Pressure: 0.55MPa
Control Method: PLC And Touch Screen Test Duration: 0-9999 Min
High Light:

IPX8 Water Ingress Testing Equipment

,

0.5MPa Water Ingress Testing Equipment

,

0.5MPa High Pressure Water Tank

Product Description





IEC 60529 IPX8 Continuous Immersion Water Ingress Testing Equipment



Complied Standards & Clauses




IEC60529:2013 “Degrees of protection provided by enclosure (IP code)” IPX8



Equipment Overview


Samples and Restrictions: Electrical and electronic products, automobiles, motorcycle parts, communication products, household appliances, outdoor lighting and signal devices, etc

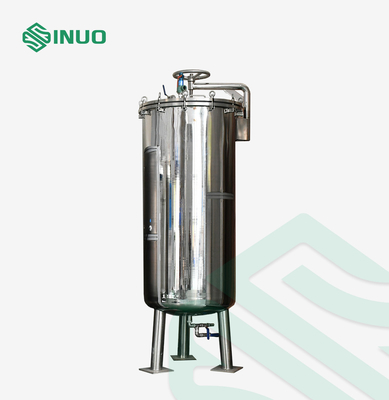

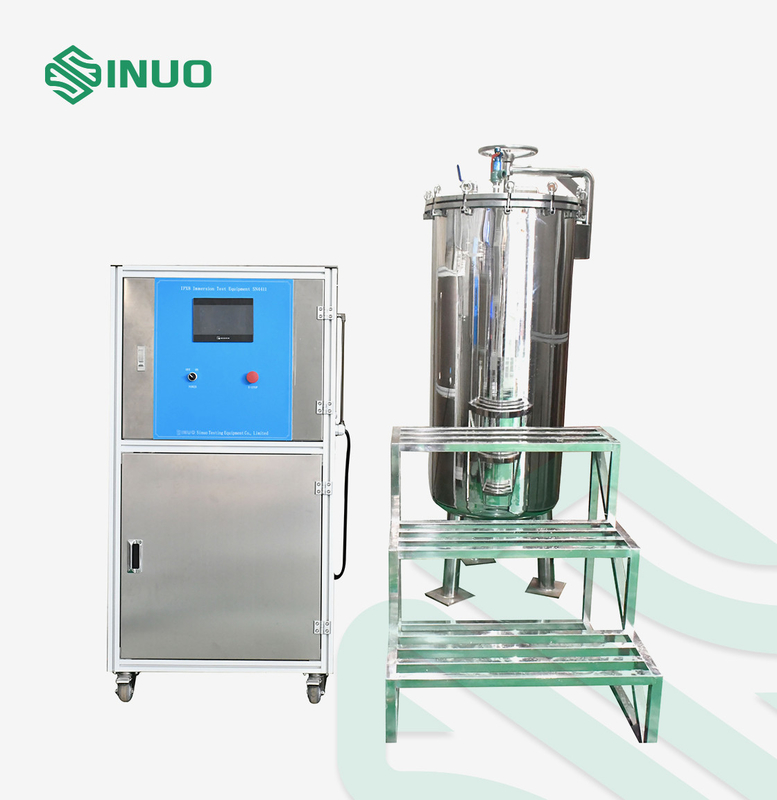

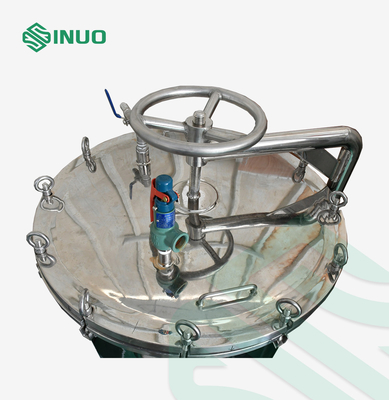

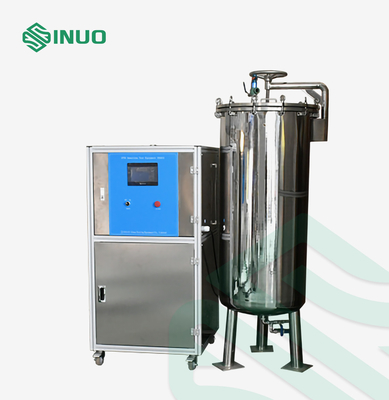

Structure: The test chamber is made of stainless steel, and the cover is automatically lifted by a cylinder. It is easy for operation, with functions of safety valve protection and automatic pressure relief.



Application: To verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under continuous immersion in water at degree IPX8.



Principle: By controlling the depth of the sample in the water to achieve a standard equivalent pressure, and simulating water depth pressure by applying a certain pressure of air pressure, to produce water pressure across the entire surface of the specimen enclosure. The water depth range simulation of IPX8 is harsher than IPX7.



Use Environment:

Use place: temperature 15-35 ° C, relative humidity 25%-75%, atmospheric pressure 86 ~ 106kpa (860 mbar -1060 mbar), there should be equipped with lighting, the ground needs to be flat, and the water intake and drainage function should be good.

Water source: clean water or tap water without impurities, equipped with water cleaning filter.



Technical Parameters


Control & Operation PLC and touch screen
Water Tank Size

Inner size: Ф600×1200mm,

outer size: WDH=800×980mm×1850mm

Water Depth Simulation 0-50 m
Air Pressure Corresponding Adjustment Range 0-0.5MPa, can be automatically adjusted by pressure sensor, accuracy: 0.001MPa
Safety Valve Discharge Pressure 0.55MPa
Test Duration 0-9999 min
Safety Protection Leakage protection, short circuit protection, safety valve overpressure protection
