Product Description

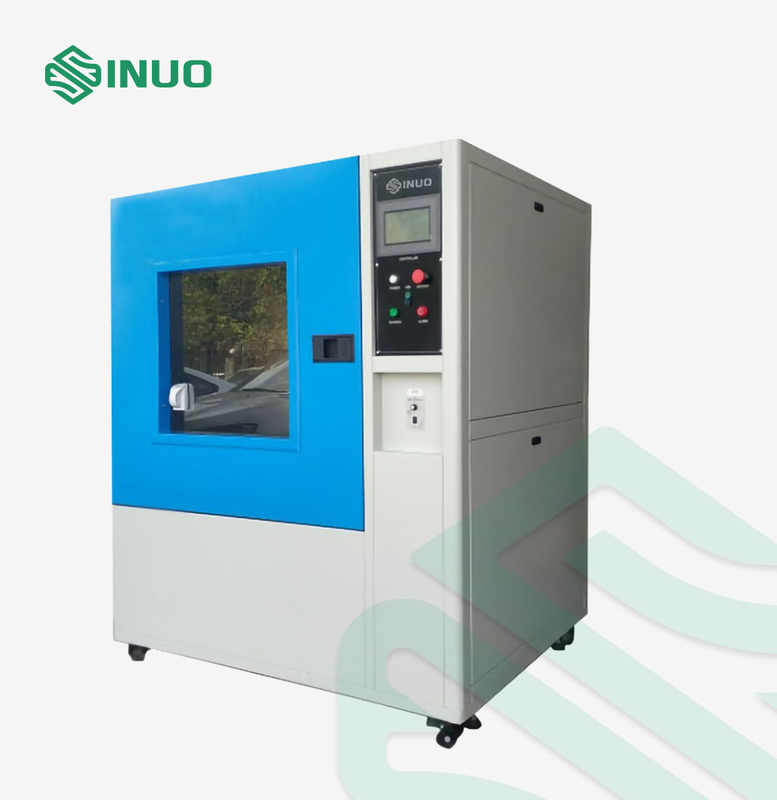

IPX9 High Pressure High Temperature Water Jet Fan Nozzle Test Chamber



Complied Standards & Clauses




IEC60529:2013 “Degrees of protection provided by enclosure (IP code)” IPX9, figure 7 to 12.



ISO20653-2013 “Road vehicles-Degrees of protection (IP code)-Protection of electrical equipment against foreign objects, water and access” figure 7, 8, 9 and table 7 (9K) ”



DIN40050-9 “Road vehicles-Degrees of protection (IP code)-Protection against foreign objects,water and access Electrical equipment>figure 8and table 8 (9K) ”



Technical Parameters


Control & Operation PLC and touch screen intelligent control system
Chammber Size

Inner size: WDH=800×800mm×800mm

Outer size: WDH=1400×1000mm×1750mm

Inner size: WDH=1000×1000mm×1000mm

Outer size: WDH=1600×1200mm×1900mm

Inner size: WDH=1500×1500mm×1500mm

Outer size: WDH=2100×1700mm×2400mm

Fan Jet Nozzles Manufactured according to IEC 60529 figure 7, or can be customized
Water Jett Pressure 8000-10000Kpa
Water Jet Flow 14-16L/min, adjustable
Water Jet Angle 0°, 30°, 60°, 90°
Test Duration 30s per position
Overall Test Time 0-99H59M59S, can be preset
Test Water Temperature 80±5°C
Distance between Nozzle and Sample

a) for small enclosures (largest dimension less than 250 mm): R125±25mm

b)for large enclosures (largest dimension greater or equal to 250 mm): R175±25mm

Impact Force The set-up for measuring the impact force of the water jet is according to IEC 60529 figure 10
Turntable Diameter: Φ600mm, rotation speed: 1-5r/min, bearing capacity:≤ 30kgs
Power Load to Sample Optional, provide test socket, AC220V
Water Circulation System The test is processed in the chamber, the equipment has a bilt-in water tank, the water can be recycled. And the inner chamber has a water collecting device, the test water is automatically collected into the water storage tank through the chassis. The water inlet can be automatically controlled through the float valve in the water tank, the system can give out high and low water level alarm detection alarms, which can effectively prevent the pump from being damaged due to dry water shortage.
Safety Protection Phase sequence protection, leakage protection, short circuit protection, water shortage protection, abnormal protection.


Equipment Overview


Use Environment:

Power supply: AC380V±5%/50Hz, 15KVA, or match client’s local power supply requirements.

Use place: temperature 15-35 ° C, relative humidity 25%-75%, atmospheric pressure 86 ~ 106kpa (860 mbar -1060 mbar), there should be equipped with lighting and waterproof leakage switch (or socket), the ground needs to be flat, and the water intake and drainage function should be good.

Water source: clean water or tap water without impurities, equipped with water cleaning filter.



Samples and Restrictions: Passenger vechiles, buses, lamps, motorcycles and other parts and components, as well as other products that need to be tested under IPX9 (IPX9K) environment.



Structure:

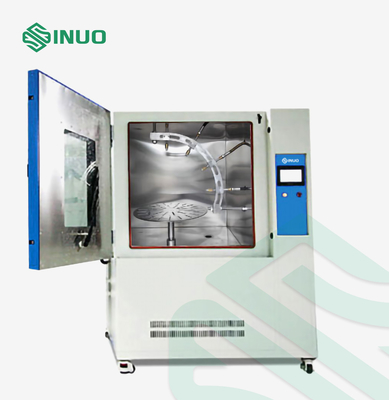

The device is composed of a chassis, a water spray mechanism, a high-pressure high-temperature device, a turntable and an electrical control cabinet.

1. The outer casing of the chamber is made of high-quality steel plate. The inner chamber and the turntable are all made of SUS304 stainless steel to ensure waterproof and anti-corrosion. The test chamber has its own water circulating system, and has a water collecting device inside. The test water is automatically collected into the water storage tank through the chassis. The water inlet can be automatically controlled through the float valve in the water tank, the system can give out high and low water level alarm detection alarms, which can effectively prevent the pump from being damaged due to dry water shortage.

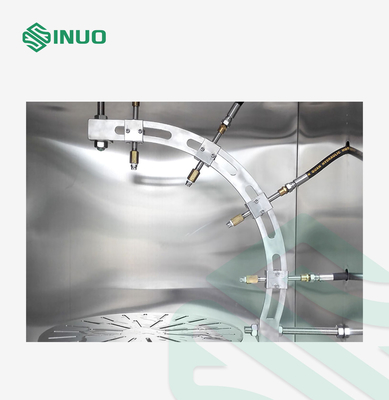

2. 4 standard nozzles are installed in the 0°, 30°, 60°, 90° position of the ring bracket.



3. The built-in water heating thermostat device ensures that the test water temperature meets the standard requirements. The high-pressure water is supplied by the high-pressure water pump through the frequency conversion, and the water jetting flow can be preset on the touch screen.

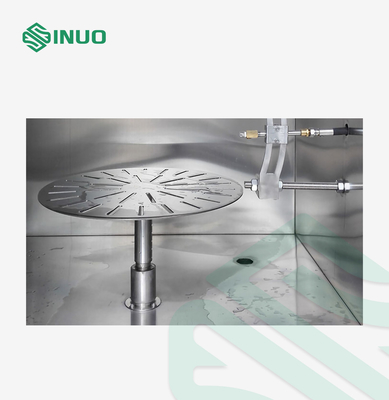

4. The test chamber is equipped with a turntable, the turntable is caused to rotating by motor driving at a rotation speed of 1r/min, to make the enclosure is sprayed from all practicable directions.



5. The water heating, constant temperature, water pressure, water flow, c water spray time, cycle program process and the turntable rotation action are controlled by the electrical control cabinet.



Application: To verify the protective performance of the components of road vechiles, lamps, motorcycles and other parts under high pressure and temperature water jetting at degree IPX9 (IPX9K).



Principle: Ensure that the water jetting speed reaches the standard required value by controlling the water supply flow, temperature and pressure, the enclosure is sprayed from all practicable directions with a stream of water from the standard test nozzles as shown in IEC 60529 figure 7, 8 and 9.
