IEC 60529 Water Ingress Testing Equipment IPX1 IPX4 Vertical Rain Drip Oscillating Tube

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN4413

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood Case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30 sets/month
Contact Now

Detail Information

Applied Standard: IEC60529 And Etc. Test Contents: IPX1, IPX2, IPX3, IPX4
Control & Operation: PLC And Touch Screen Needle Pinhole Aperture: Φ0.4mm
IPX1 & IPX2 Drip Area: WD=1000×1000mm IPX1 & IPX2 Drip Height: 200mm
IPX1 & IPX2 Drip Hole Spacing: 20mm×20mm IPX3 & IPX4 Water Flow: 1-10L/min Adjustable
Oscillating Tube Swing: IPX3:120°(±60°); IPX4:350°(±175°) General Pressure Gauge: 0~0.25MPa
High Light:

IEC60529 Water Ingress Testing Equipment

,

IPX1 Water Ingress Testing Equipment ev

,

IPX4 Oscillating Tube Testing Equipment

Product Description





IEC 60529 IPX1~4 Vertical Rain Drip and Oscillating Tube Testing Equipment



Complied Standards & Clauses




IEC60529:2013 “Degrees of protection provided by enclosure (IP code)” IPX1, IPX2, IPX3 & IPX4.



Equipment Overview


Application: To verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water dripping at degree IPX1 & IPX2 and water spraying and splashing at degree IPX3 & IPX4.



Samples and Restrictions: Electrical and electronic products, automobiles, motorcycle parts, household appliances, communication products, outdoor lighting and signal devices, etc.

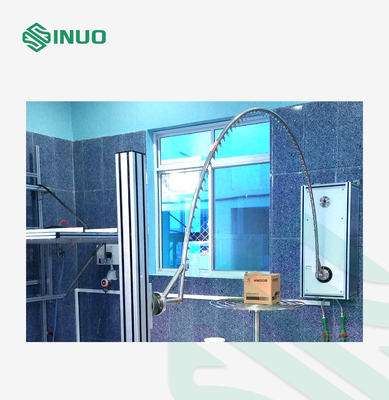

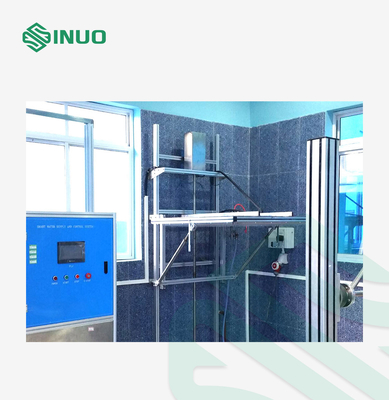

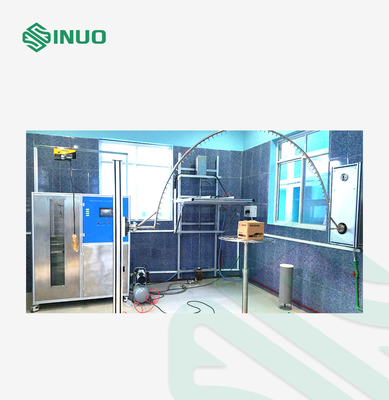

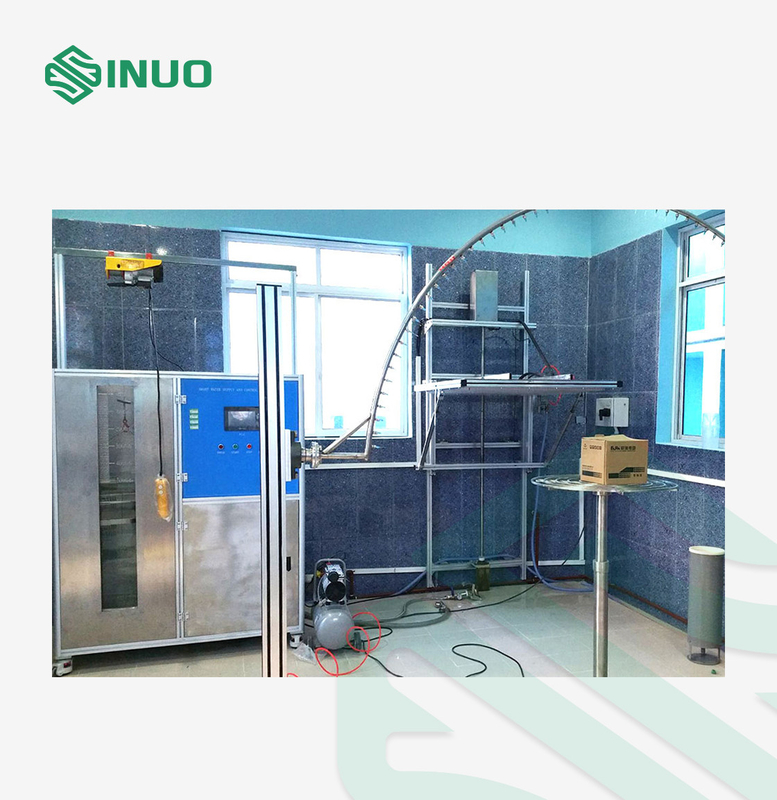

Structure: The test equipment consists of a drip mechanism, an oscillating mechanism, an electrical control cabinet and a turntable. The bracket of drip box is wall-hanging and with anti-drop function, which can lift automatically controlled by motor. One end of the oscillating mechanism is mounted on the wall, and the other end of the oscillating mechanism is fixed on the floor support, the tube is caused to oscillate by motor driving. The turntable has a rotation speed of 1r/min, used for IPX1 ~IPX4 test; the turntable can be tilted 15°, used for IPX2 test. The test equipment is equipped with a water filter cleaning device to prevent pinhole blockage. This whole system adopts open type structure.



Principle: Ensure that the dripping speed or spraying speed reaches the standard required value by controlling the water supply flow, the test equipment can produce a uniform flow of water drops over the whole area of the enclosure (IPX1 and IPX2) or make the enclosure of the specimen to be splashed in all directions (IPX3 and IPX4).



Use Environment:

Power supply: AC380V±5%/50Hz, 15KVA, or match client’s local power supply requirements.

Use place: temperature 15-35 ° C, relative humidity 25%-75%, atmospheric pressure 86 ~ 106kpa (860 mbar -1060 mbar), there should be equipped with lighting and waterproof leakage switch (or socket), the ground needs to be flat, and the water intake and drainage function should be good.

Water source: clean water or tap water without impurities, equipped with water cleaning filter.



Technical Parameters


IPX1 & IPX2
Drip Area WD=1000×1000mm, other sizes can be customized
Drip Height 200mm distance of the needle to the sample is automatically measured by infrared sensor
Drip Speed / Water Flow 1+0.5 0mm/min or 3+0.5 0mm/min switchable, rainfall is digitally controlled
Needle Pinhole Aperture Φ0.4mm
Drip Hole Spacing 20mm×20mm
Drip Box Lifting Driven by motor, adjustable from 1100-1800mm, screw guide ensures smooth lifting and self-locking

IPX3 & IPX4
Oscillating Tube R200, R400, R600, R800, R1000, R1200, R1400, R1600mm are optional, made of stainless steel
Needle Pinhole Aperture Φ0.4mm
Spray Holes Distribution

IPX3:over an arc of 60° either side of the center point (120°)

IPX4:over the whole 180° of the semicircle

Hole spacing: 50mm

IPX3/4 Switching Switching by changing a certain number of blind hole needles or through-hole needles
Oscillating Angle IPX3:120°(±60°); IPX4:350°(±175°)
Oscillating Speed

IPX3:4s /cycle(2×120°);

IPX4:12s /cycle(2×350°);

Water Flow 1-10L/min adjustable

General
Control & Operation PLC and touch screen intelligent control system
Turntable Diameter: Φ600mm, can be tilted 15°, rotating speed 1r/min, with lifting support frame, bearing capacity ≤50kg
Test Duration 0-99.9min, can be preset
Pressure Gauge 0~0.25MPa
Water Storage System The control box and water storage tank are built in one cabinet, the water storage tank is equipped with a water level float valve to automatically control the water inlet, and has high and low water level alarm detection, to effectively prevent the pump from being damaged due to dry water.
Optional The hand-held spray nozzle as per IEC 60529 figure 5 can be configured
Safety Protection Phase sequence protection, leakage protection, water shortage protection, abnormal protection
