IPX1 IPX4 Water Ingress Testing Equipment Rain Spray IP Code Test Chamber IEC 60529

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN4414

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood Case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30 sets/month
Contact Now

Detail Information

Applied Standard Number: IEC 60529 Needle Pinhole Aperture: Φ0.4mm
IPX1 & IPX2 Drip Area: WD=600×600mm IPX1 & IPX2 Drip Height: 200mm
IPX1 & IPX2 Drip Hole Spacing: 20mm×20mm IPX3 & IPX4 Water Flow: IPX3:4s /cycle(2×120°); IPX4:12s /cycle(2×350°)
Oscillating Tube Swing Angle: IPX3:120°(±60°);IPX4:350°(±175°) Oscillating Tube Swing Speed: IPX3:4s /cycle(2×120°); IPX4:12s /cycle(2×350°)
Control Method: PLC And Touch Screen Power Supply: AC380V±5%/50Hz, 15KVA
High Light:

IPX3 ipx4 Water Ingress Testing Equipment

,

ipx4 Water Ingress Testing Equipment

,

IEC 60529 ipx4 test equipment

Product Description





IEC 60529 IPX1/2/3/4 Rain Spray Water Ingress IP Code Test Chamber



Complied Standards & Clauses




IEC60529:2013 “Degrees of protection provided by enclosure (IP code)” IPX1, IPX2, IPX3, IPX4.



Equipment Overview


Use Environment:

Power supply: AC380V±5%/50Hz, 15KVA, or match client’s local power supply requirements.

Use place: temperature 15-35 ° C, relative humidity 25%-75%, atmospheric pressure 86 ~ 106kpa (860 mbar -1060 mbar), there should be equipped with lighting and waterproof leakage switch (or socket), the ground needs to be flat, and the water intake and drainage function should be good.

Water source: clean water or tap water without impurities, equipped with water cleaning filter.



Samples and Restrictions: Electrical and electronic products, automobiles, motorcycle parts, household appliances, communication products, outdoor lighting and signal devices, etc.

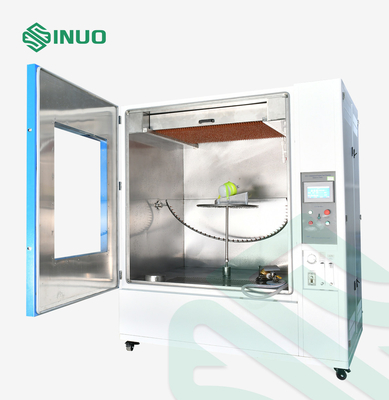

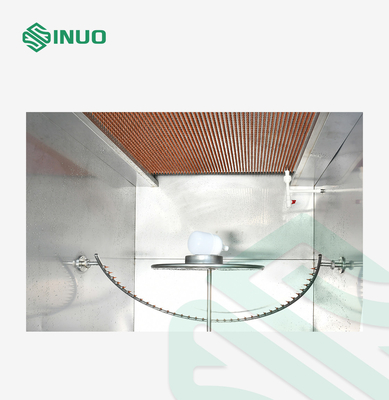

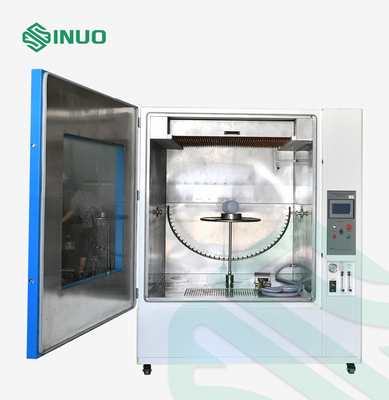

Structure: The device is composed of a drip mechanism, an oscillating mechanism, an electric control cabinet and a turntable. The drip box is fixed to the top of the chamber. The oscillating mechanism is installed inside of the inner chamber, and the left and right ends of the oscillating tube are fixed to the side wall of the inner chamber. There is a turntable, has a rotation speed of 1r/min, used for IPX1 ~IPX4 test; With 15° sample support block, used for IPX2 test; the height of the turntable can be adjusted manually, matching the distance 200mm from the needle to the sample. The test equipment is equipped with a water filter cleaning device to prevent pinhole blockage. This whole system adopts chamber type structure.



Application: To verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water dripping at degree IPX1 & IPX2 and water spraying and splashing at degree IPX3 & IPX4.

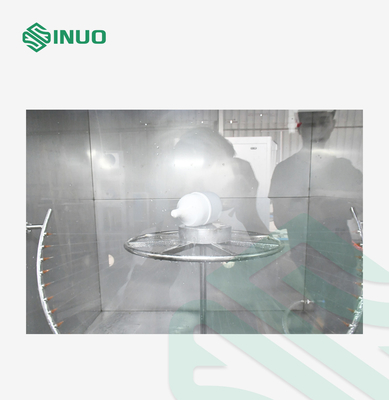

Principle: Ensure that the dripping speed or spraying speed reaches the standard required value by controlling the water supply flow, the test equipment can produce a uniform flow of water drops over the whole area of the enclosure (IPX1 and IPX2) or make the enclosure of the specimen to be splashed in all directions (IPX3 and IPX4).



Technical Parameters


IPX1 & IPX2 Vertical Drip
Chamber Size

Inner size: WDH=900×900mm×1050mm

Outer size: WDH=1350×1150mm×1750mm

Drip Area WD=600×600mm, other sizes can be customized
Drip Height 200mm distance of the needle to the sample is achieved by adjusting the height of the turntable or raising the specimen

Drip Speed

(Water Flow)

1+0.50mm/min or 3+0.50mm/min adjustable
Needle Pinhole Aperture Φ0.4mm
Drip Hole Spacing 20mmx20mm
Drip Box Position Located at the top of the inner chamber, fixed
IPX3 & IPX4 Oscillating Tube
Oscillating Tube R400mm, R200mm is optional, made of stainless steel
Needle Pinhole Aperture Φ0.4mm
Spray Holes Distribution

IPX3:over an arc of 60° either side of the center point (120°)

IPX4:over the whole 180° of the semicircle

Hole spacing: 50mm

IPX3/4 Switching Switching by changing a certain number of blind hole needles or through-hole needles
Oscillating  Angle IPX3:120°(±60°); IPX4:350°(±175°)
Oscillating Speed

IPX3:4s /cycle(2×120°);

IPX4:12s /cycle(2×350°);

Oscillating Tube Position Located in the middle of the inner chamber, the left and right ends are fixed on the side wall of the inner chamber
General
Waterproof Turntable Diameter:Φ400mm,rotation speed: 1-5r/min, with 15° sample support block,and lifting frame 400-750mm adjustable, bearing capacity:≤50kgs
Control & Operation PLC and touch screen intelligent control system
Test Duration 0-99.9min, can be preset
Chamber Material Inner chamber is made of SUS304 stainless steel
Water Circulation System The test is processed in the chamber, the equipment has a bilt-in water tank, the water can be recycled. And the inner chamber has a water collecting device, the test water is automatically collected into the water storage tank through the chassis. The water inlet can be automatically controlled through the float valve in the water tank, the system can give out high and low water level alarm detection alarms, which can effectively prevent the pump from being damaged due to dry water shortage. Also, there is a cleaning filter device at the water inlet position.
Safety Protection Phase sequence protection, leakage protection, water shortage protection, abnormal protection
