IPX3 IPX6 IP Test Equipment Spray Nozzles Rain Spray Testing Apparatus

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN4415

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood Case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30 sets/month
Contact Now

Detail Information

Applied Standard: IEC 60529 IP Code: IPX3,IPX4,IPX5,IPX6
IPX3 & IPX4 Water Flow: 10L/min±5% IPX5 & IPX6 Water Flow: IPX5: 12.5±0.625L/min; IPX6: 100±5 L/min
Control Method: PLC And Touch Screen Turntable Diameter: Φ600mm
Turntable Rotation Speed: 1r/min Turntable Bearing Capacity: ≤50kgs
High Light:

IPX3 ip test equipment

,

IPX4 ip test equipment

,

IPX5 Nozzle Hose rain spray test chamber

Product Description





IEC 60529 IPX3/4/5/6 Spray Nozzle Hose Nozzles IP Code Test Equipment



Complied Standards & Clauses




IEC60529:2013 “Degrees of protection provided by enclosure (IP code)” IPX3, IPX4, IPX5 & IPX6.



Equipment Overview


Use Environment:

Power supply: AC380V±5%/50Hz, 5KVA, or match client’s local power supply requirements.

Use place: temperature 15-35 ° C, relative humidity 25%-75%, atmospheric pressure 86 ~ 106kpa (860 mbar -1060 mbar), there should be equipped with lighting and waterproof leakage switch (or socket), the ground needs to be flat, and the water intake and drainage function should be good.

Water source: clean water or tap water without impurities.



Samples and Restrictions: Electrical and electronic products, automobiles, motorcycle parts, household appliances, communication products, outdoor lighting and signal devices, etc.

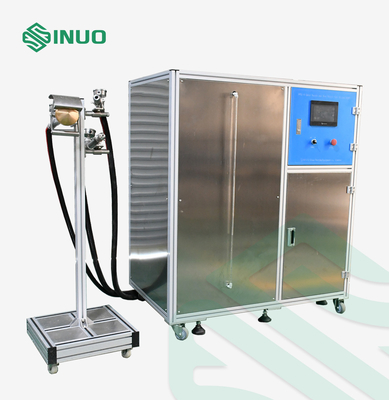

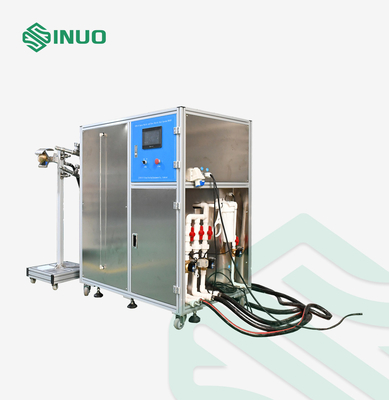

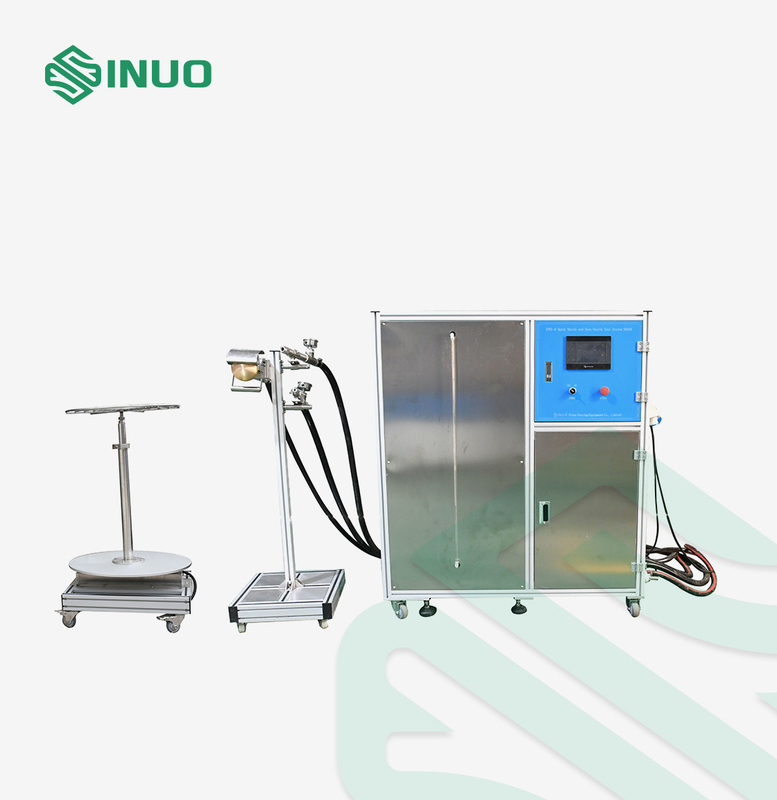

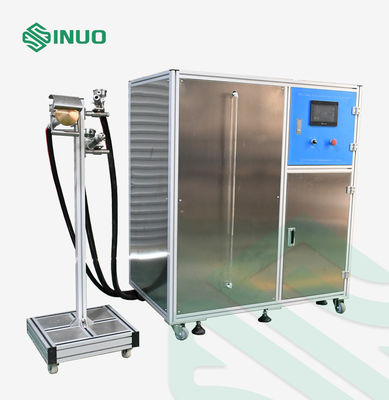

Structure: The test equipment consists of a hand-held spray nozzle, a hose nozzle, a support, water storage tank an electrical control cabinet and a turntable. The nozzles are fixed on the support, the sample is placed on the turntable, the turntable has a rotation speed of 1r/min and its rotation is driven by motor, to make the enclosure of the specimen to be splashed in all directions or sprayed from all practicable directions. The water storage tank and electrical control part are interaged. This whole system adopts open type structure.



Application: To verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water spraying and splashing at degree IPX3 & IPX4 and water jets at degree IPX5 and IPX6.



Principle: Ensure that the water spray and water jet speed reach the standard required value by controlling the water supply flow, make the enclosure of the specimen to be splashed in all directions or sprayed from all practicable directions.



Technical Parameters

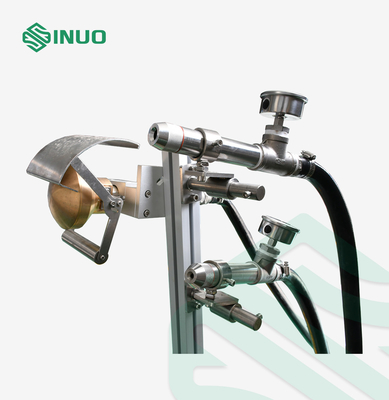

IPX3 & IPX4 Spray Nozzle
Parameters of Spray Nozzle Outer diameter: Ф102mm, spherical diameter: SФ75.5mm, 1 hole at the center, 2 inner circles of 12 holes at 30° pitch,4 outer circles of 24 holes at 15° pitch , total 121 holes of Ф0.5mm, made of brass.
Water Flow 10L/min±5%, flow meter is adjustable through rotameter, electronic flowmeter is optional
Pressure 50~150Kpa, the pressure gauge measuring range: 0~0.25Mpa
Moving Shield Made of aluminum, can be detachable
Water Spray Directions The angle of water spraying can be adjusted
IPX5 & IPX6 Hose Nozzle
Parameters of Hose Nozzle IPX5: Ф6.3mm; IPX6: Ф12.5mm
Delivery Rate IPX5: 12.5±0.625L/min; IPX6: 100±5 L/min, flow meter is adjustable through rotameter, electronic flowmeter is optional
Distance from Nozzle to Enclosure Surface 2.8m ((The distance from the nozzle to the center surface of the turntable, standard requires 2.5-3m)
Water Jet Directions The angle of water jetting can be adjusted
General
Control & Operation PLC and touch screen intelligent control
Nozzle Fixed Method Spray nozzle and hose nozzles are fixed on the support
Pressure Gauge 0~0.25MPa, can be displayed
Test Duration 0.01S~99.9 min, can be preset
Turntable Diameter: Φ600mm, rotation speed: 1r/min, bearing capacity: ≤50kgs
Water Storage Tank This test system adopts open type structure, the test water is not recycled. The test system is equipped with an approximately 500L stainless steel water storage tank. The water storage tank is equipped with a water level float valve to automatically control the water inlet, and has high and low water level alarm detection, to effectively prevent the pump from being damaged due to dry water. The water storage tank and electrical control part are integrated.
Safety Protection Phase sequence protection, leakage protection, water shortage protection, abnormal protection.
