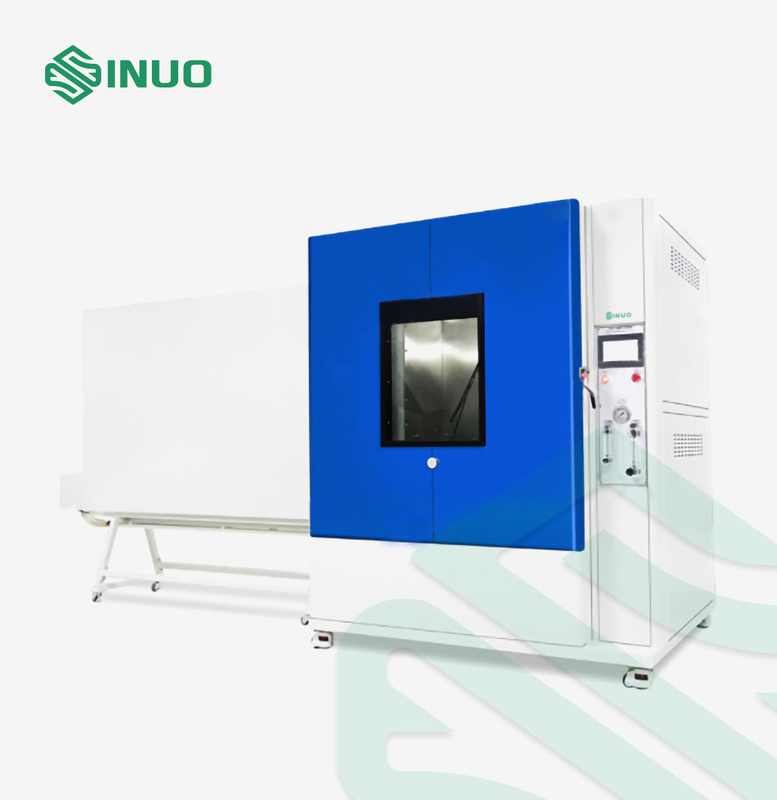

IEC 60529 IPX1 to IPX6 Water Ingress Moisture Testing Chamber



Complied Standards & Clauses




IEC60529:2013 “Degrees of protection provided by enclosure (IP code)” IPX1, IPX2, IPX3, IPX4, IPX5 & IPX6



Equipment Overview


Use Environment:

Power supply: AC220V±5%/50Hz, 10KVA, or match client’s local power supply requirements.

Use place: temperature 15-35 ° C, relative humidity 25%-75%, atmospheric pressure 86 ~ 106kpa (860 mbar -1060 mbar), there should be equipped with lighting and waterproof leakage switch (or socket), the ground needs to be flat, and the water intake and drainage function should be good.

Water source: clean water or tap water without impurities, equipped with water cleaning filter.



Samples and Restrictions: Electrical and electronic products, automobiles, motorcycle parts, household appliances, communication products, outdoor lighting and signal devices, etc.

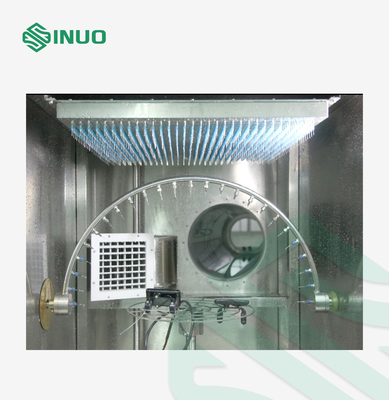

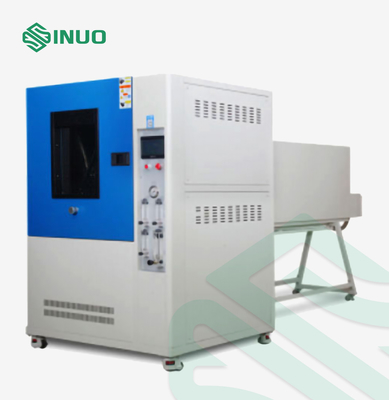

Structure: The test equipment consists of a chassis, a vertical drip mechanism, an oscillating tube water spraying mechanism, a water jetting mechanism, a tunnel, an electrical control cabinet and a turntable. The vertical drip mechanism is mounted on the top of inner chamber. The oscillating mechanism is installed in the middle of the inner chamber, two ends are fixed on the side walls of the inner chamber. The water jetting mechanism is located in the left side and connected to inner chamber through the long tunnel, which ensure the distance between the nozzle and the sample. The sample is placed on the turntable, the turntable is caused to rotating by motor driving at a rotation speed of 1r/min for IPX1~IPX6 testing, to make the enclosure of the specimen to be splashed in all directions or sprayed from all practicable directions; and the height of the turntable can be adjuted manually, to match the test distance from needle to the sample. This whole system is equipped with a water filtration cleaning device to prevent pinhole blockage. And the test system adopts the chamber type structure.



Application:

To verify the protective performance of the enclosure for components of electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under:

Water dripping at degree IPX1 and IPX2

Water spraying and splashing at degree IPX3 and IPX4.

Water jets at degree IPX5 and IPX6



Principle: Ensure that the water drip, water spray or water jet speed reach the standard required value by controlling the water supply flow, and achieve equivalent pressure by controlling the depth of the sample immersed in water, produce a uniform flow of water or pressure over the whole area of the enclosure.



Technical Parameters


1. Vertical drip mechanism
Drip Area WD=600×600mm, other sizes can be customized
Drip Height 200mm distance of the needle to the sample is achieved by adjusting the height of the turntable or raising the specimen

Drip Speed

(Water Flow)

1+0.5 0mm/min or 3+0.5 0mm/min adjustable
Needle Pinhole Aperture Φ0.4mm
Drip Hole Spacing 20mmx20mm
Drip Box Position Located at the top of the inner chamber, fixed
2Oscillating tube water spraying mechanism
Oscillating Tube R400, R200 is optional, made of stainless steel
Needle Pinhole Aperture Φ0.4mm
Spray Holes Distribution

IPX3:over an arc of 60° either side of the center point (120°)

IPX4:over the whole 180° of the semicircle

Hole spacing: 50mm

IPX3/4 Switching Switching by changing a certain number of blind hole needles or through-hole needles
Oscillating Angle IPX3:120°(±60°); IPX4:350°(±175°)
Oscillating Speed

IPX3:4s /cycle(2×120°);

IPX4:12s /cycle(2×350°);

Water Flow 1-10L/min adjustable

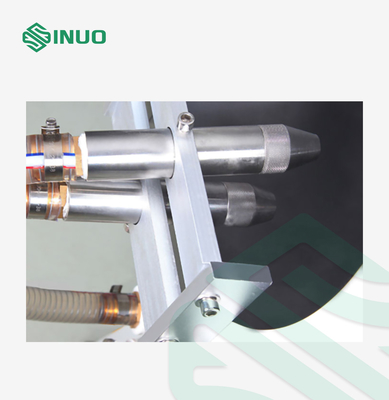

3. Water jetting mechanism
Water Jetting Direction Horizontal
Nozzle Internal Diameter IPX5:Ф6.3mm;IPX6:Ф12.5mm
Delivery Rate IPX5: 12.5±0.625L/min; IPX6: 100±5 L/min, flow meter is adjustable through rotameter manually
Distance from Nozzle to Enclosure Surface 2.8m ((The distance from the nozzle to the center surface of the turntable, standard requires 2.5-3m)
Nozzle Fixed Method Mechanical fixing
4. General
Pressure Gauge 0~0.25MPa, can be display
Test Duration 0.01S~99.9 min, can be preset
Turntable Diameter: Φ400mm; rotation speed: 1r/min, can pause at 4 angles, the lifting height: 350-600mm, bearing capactity: ≤50kgs
Chamber Material Inner chamber and tunnel are made of stainless steel
Water Circulation System The test is processed in the chamber, the equipment has a bilt-in water tank, the water can be recycled. And the inner chamber has a water collecting device, the test water is automatically collected into the water storage tank through the chassis. The water inlet can be automatically controlled through the float valve in the water tank, the system can give out high and low water level alarm detection alarms, which can effectively prevent the pump from being damaged due to dry water shortage. Also, there is a cleaning filter device at the water inlet position.
Safety Protection Phase sequence protection, leakage protection, water shortage protection, abnormal protection.
