IEC 60695-11-3 500W 50W Horizontal and Vertical Flame Test Chamber

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN771

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood Case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30 sets/month
Contact Now

Detail Information

Applied Standard: IEC 60695-11-3 And Etc. Control Method: PLC And Touch Screen
50W Gas Flow: 105±5ml/min 500W Gas Flow: 965±30ml/min
50W Flame Test Angle: 0°,45° 500W Flame Test Angle: 20°
Burning Time: 0-9999X0.1S, Can Be Preset Flame Applications: 0-9999 Times,can Be Preset
High Light:

Horizontal Flammability Testing Equipment

,

Automotive Flammability Testing Equipment

,

Vertical flammability test chamber

Product Description





IEC 60695-11-3 500W 50W Horizontal and Vertical Flame Test Chamber



Complied Standards & Clauses


UL 94 “Tests for Flammability of Plastic Materials for Parts in Devices and Appliances”



IEC 60695-11-3 “Fire hazard testing - Part 11-3: Test flames - 500 W flames - Apparatus and confirmational test methods”



IEC 60695-11-10 “Fire hazard testing -- Part 11-10: Test flames -- 50 W horizontal and vertical flame test methods”



IEC 60695-11-20 “Fire hazard testing - Part 11-20: Test flames - 500 W flame test method”



IEC 60695-11-4 “Fire hazard testing - Part 11-4: Test flames - 50 W flame - Apparatus and confirmational test method”



Equipment Overview


Application: It simulates the influence of early-stage flame when there is a fire around the electric and electronic products, so that to judge the igniting danger degree. It is mainly used to check the relative combustion characteristic in the Horizontal, vertical flammability test of plastic and other non-metallic material sample, solid material, and foam plastics whose density is no-less than 250kg/m according to ISO845 test method.



Test Principle: By controlling the gas flow and the flame application time, the equivalent heat value of the flame applied to the sample can be controlled to simulate and evaluate the fire hazard degree.

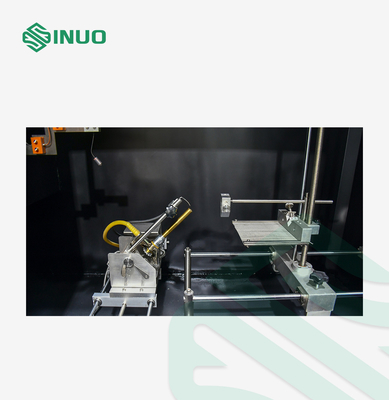

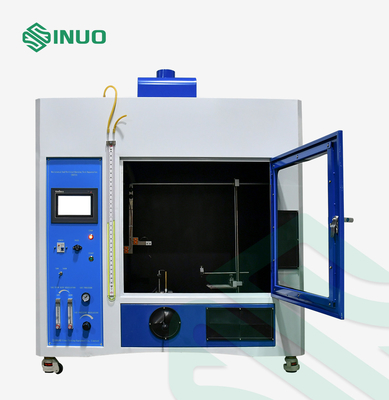

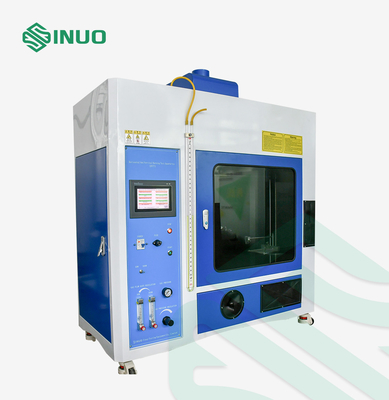

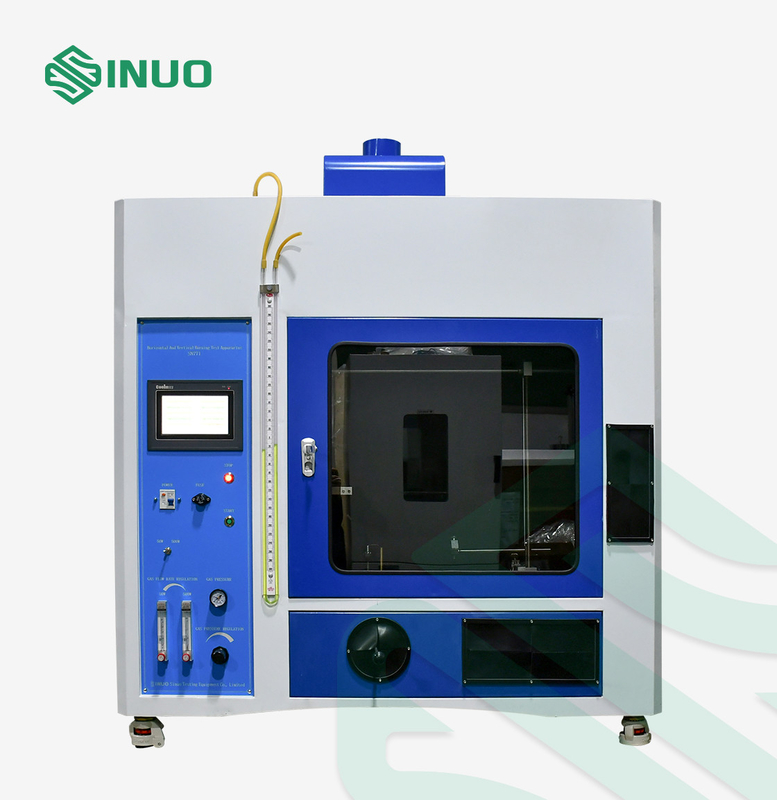

Structure: This series of flammability test chambers use integral air intake automatic ignition system, the combustion delay is only 0.1 seconds, to ensure the full combustion of the gas; the chamber is made of steel, the inner chamber is sprayed black matte background, the observation window is large, and the imported high-precision digital display is adopted, which ensures the accurate detection.



Technical Parameters


Model SN771A(Touch Screen Version)
Control and Operation Mode PLC control, operated on 7-inch color touch screen, with infrared remote control
Burner Standard IEC60695-11-3/IEC60695-11-4/10,UL94,inner diameter of Φ9.5±0.3mm, length100mm,made of brass
Gas Pressure 0.1MPa
Gas Flow 50W:105±5ml/min or 18±1 mm; 500W:965±30ml/min or 117±3 mm,adjusted by flowmeter
Back Pressure Water Column Height of U-Shaped Pressure Gauge 50W: 10mm 500W:125±5 mm
Test Angle 50W: 0°,45° 500W: 20°
Burning Time 0-9999X0.1S, can be preset
Number of Flame Applications 0-9999 times,can be preset
After Flame / afterglow Time 0-9999X0.1S can be displayed
Test Flame Calibration Temperature measuring copper head:50W:Ф5.5mm±0.01mm,weight before drilling 1.76 ± 0 .01 g;500W:Ф9mm±0.01mm,weight before drilling 10 ± 0 .05g
Thermocouple: The American original Omega φ0.5 armour nickel-chromium/nickel aluminum wire K-Thermocouple, temperature resistance 1100°
Distance between the bunsen burner port to temperature measuring copper block:50W: 10±1 mm; 500W: 55±1 mm
Flame height:50W: 20±2mm(there is no internal and external flame); 500W: Inner flame:40±2mm,Outer flame:125±10mm
Temperature rise time from100±2°to 700°±3°: 50W: 44±2S 500W:54±2S
Lighting Equipped with a light, with control
Test Chamber and Dimensions >0.75 cubic, black matte background, with exhaust fan, dimensions: 1100*550*1200mm, 140kg
