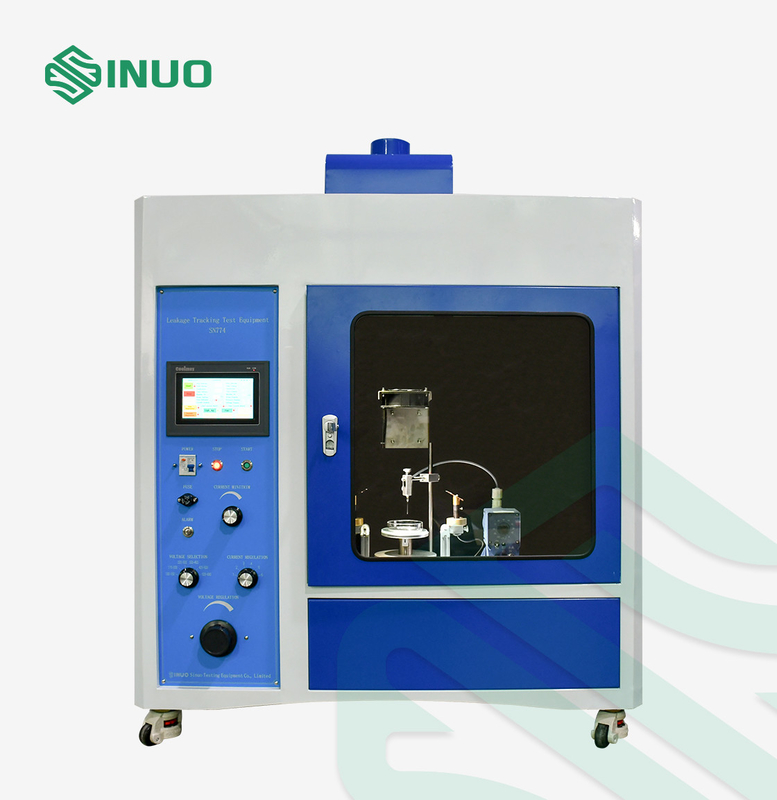

IEC 60112 Leakage Tracking Test Apparatus For Electric Vehicle Components
Complied Standards & Clauses
IEC 60112 “Method for the determination of the proof and the comparative tracking indices of solid insulating materials”
Equipments Overview
Samples and Restrictions: Lighting equipment, low-voltage electrical appliances, household appliances, machine tool appliances, motors, power tools, electronic instruments, electrical instruments, information technology equipmentinsulating materials, engineering plastics, electrical connectors, etc.
Application: Used to measure the relative tracking resistance of solid electrical insulating materials when the surface is exposed to water containing impurities under the action of an electric field when the voltage is up to 600V.
Test Principle: Tracking test (tracking index test) is that, on the surface of the solid insulating material, apply a certain voltage between platinum electrodes of the specified size (2mm × 5mm) and drop a specified droplet volume of conductive liquid (0.1%NH 4 CL) at a fixed height (35mm) at a fixed time (30s), then evaluate the leakage resistance performance of the solid insulating material surface under the combined action of electric field and humid or polluted medium, and to determine its comparative tracking index (CT1) and tracking resistance index (PT1).

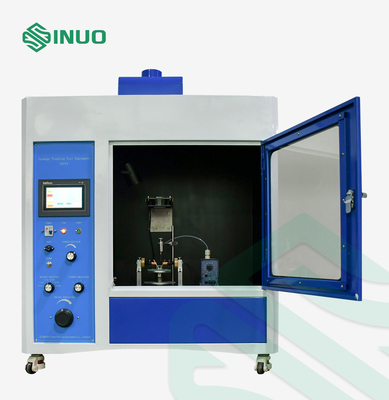

Structure: Chamber structure, with fume hood.
Power supply: single-phase AC220V±10%, 50/60Hz, or match client's local power supply requirements.
Use Environment: Ambient temperature: 10℃～35℃, relative humidity: 30%～60%.
Technical Parameters
| Model | SN774A(Button version) | SN774 A (Touch screen version) |
| Control and Operation Mode | Electric control, operated by buttons | PLC control, operated on 7-inch color touch screen, with infrared remote control |
| Test Voltage | 0～600V adjustable, accuracy 1.5% | |
| Timing Device | 9999X0.1S | |

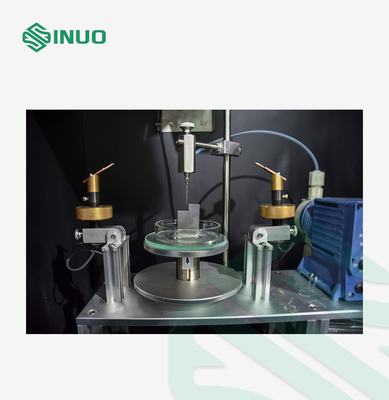

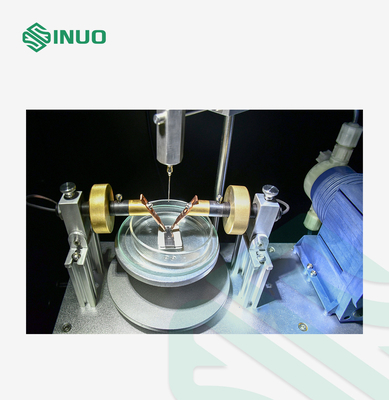

| Electrodes | Material: platinum electrode + brass post | |
| Dimensions: (5±0.1) × (2±0.1) × (≥12) mm, 30° bevel, rounded tip R0.1mm | ||
| Relative Electrode Position | Angle: 60°±5°, the distance between electrodes is 4±0.1mm | |
| Pressure of Electrode to Test Sample | 1.00N±0.05N, displayed touch screen | |
| Drip | Interval time: 30±5S, digital display, can be preset | |
| Height: 35±5mm | ||
| The number of drips is 0-9999, which can be preset. The volume of drips is controlled by the imported micro pump at 45-50 drops/cm3 | ||
| Resistance of Test Solution | A liquid 0.1%NH4Cl, 3.95±0.05Ωm, B liquid 1.7±0.05Ωm | |
| Delay Circuit | 2±0.1S (at 0.5A or more current) | |
| Short Circuit Current and Voltage Drop | 1±0.1A 1%, pressure drop 8% MAX | |
| Test Wind Speed | 0.2m/s | |
| Environmental Requirements | 0～40℃, relative humidity ≤80%, no obvious vibration and no corrosive gas | |
| Lighting | Equipped with a light, with control | |
| Test Chamber and Dimensions | WDH=1100×550×1200mm, weight is about 130kg | |
