IEC 60332 Single Insulated Cable Vertical Flammability Test Chamber
Complied Standards & Clauses
IEC 60332-1-1 “Tests on electric and optical fibre cables under fire conditions - Part 1-1: Test for vertical flame propagation for a single insulated wire or cable - Apparatus”
IEC 60332-1-2 “Tests on electric and optical fibre cables under fire conditions - Part 1-2: Test for vertical flame propagation for a single insulated wire or cable - Procedure for 1 kW pre-mixed flame”
IEC 60332-1-3 “Tests on electric and optical fibre cables under fire conditions - Part 1-3: Test for vertical flame propagation for a single insulated wire or cable - Procedure for determination of flamingdroplets/particles”
Equipments Overview
Samples and Restrictions: Single insulated wire or cable.
Application: It is suitable for vertical burning test of a single insulated wire, cable or optical fibre cable to determine the burning characteristics of its insulating material.
Test Principle: Integral air-intake automatic ignition system is adopted, and the combustion delay is only 0.1 seconds to ensure full combustion of gas.
Structure: Chamber structure, fume hood is optional.
Technical Parameters
| Control and Operation Mode |
Electric control button operation (PLC control 7-inch color touch screen operation is optiona) |
| Burner | IEC 60695-11-2 Annex A, burner opening Φ7±0.05mm, made of brass |
| Gas Flow and Gas Source Type | Mixed gas: 650±30mL/min propane; 10±0.5L/min air, adjusted by dual flow meters |
| Burning Time | 9999X0.1S |
| Burning Angle | Tilt 45°±2°, adjustable |
| Test Flame Verification | Temperature measuring copper head: 500W: Ф9mm±0.01mm, 10±0.05g before drilling |
| Thermocouple: American original Omega φ0.5 armored nickel-chromium/nickel aluminum wire, K type, temperature resistance 1100° | |
| Distance between Bunsen burner port and temperature measuring copper block: 95 mm | |
| Flame height: inner flame 55±5mm, outer flame 180±10mm | |
| The heating time from 100±5°C to 700°±3°C is 45±5s | |
| Test chamber Dimension | WDH=300×450×1200±25mm |
| Gas | >95% propane gas or coal gas |
| Requirements of Sample | Length: 600±25mm, 50mm from the bottom of the chamber |
| Horizontal Support Sample Fixtures | Two, distance 550mm |

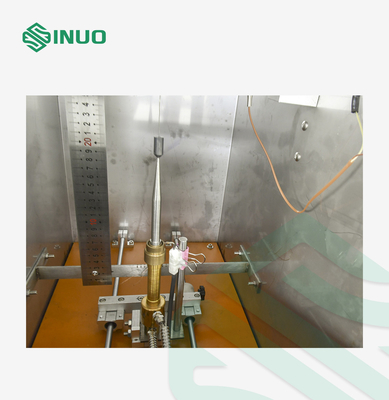

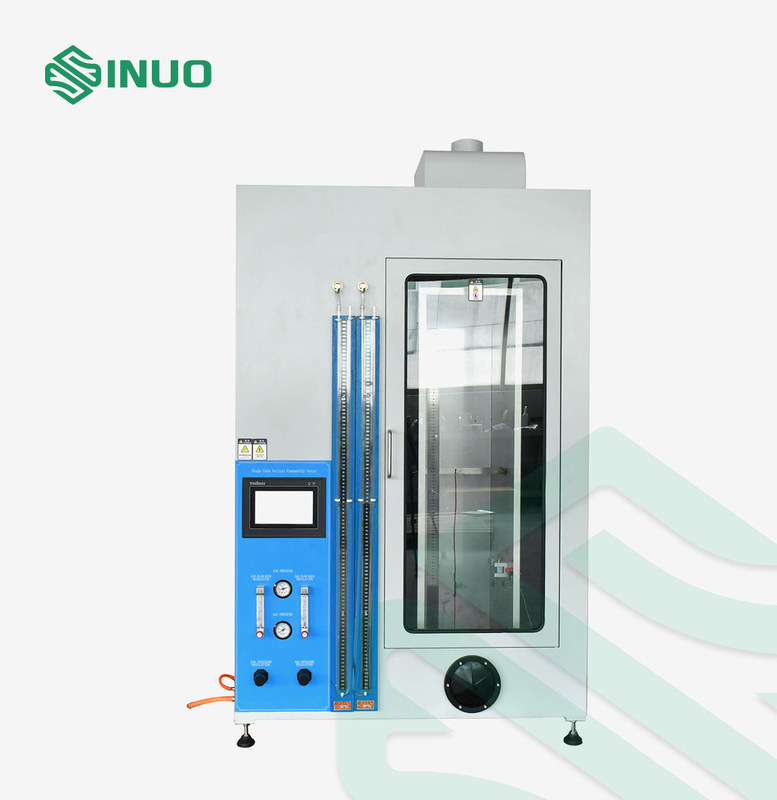

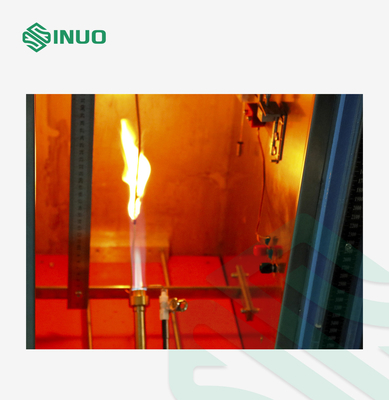

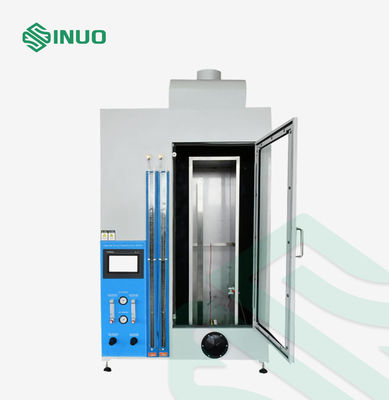

| External Dimensions | WDH=1100×600×1550mm,Weight about 160kg, equipped with fume hood |
