ISO 9772 Cellular Plastic Horizontal Burning Small Flame Test Chamber

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN777

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood Case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30 sets/month
Contact Now

Detail Information

Applied Standard: ISO 9772 Bunsen Burner: Φ9.5±0.3mm
Gas Pressure: 0.1MPa Gas Flow: 965±30ml/min
Gas Source: 98% Purity Methane Gas Support Net: 215×75×13mm, 6.4mm Grid
Flame Height: 38±2mm Flame Type: Blue Flame
High Light:

Cellular Flammability Testing Equipment

,

Plastic Flammability Testing Equipment

,

Horizontal Burning Test Chamber

Product Description





ISO 9772 Cellular Plastic Horizontal Burning Small Flame Test Chamber



Complied Standards & Clauses


ISO 9772:2012 “Cellular plastics — Determination of horizontal burning characteristics of small specimens subjected to a small flame”



Equipment Overview


Samples and Restrictions: Cellular plastic with density less than 250kg/m'



Application: It is suitable for evaluating the horizontal burning characteristics of small samples of celluar plastics with a density of less than 250kg/m' measured in accordance with ISO845:1985 under a small flame under laboratory conditions. It is not used as a basis for evaluating fire hazard under actual conditions



Test Principle: Integral air-intake automatic ignition system is adopted, and the combustion delay is only 0.1 seconds to ensure full combustion of gas

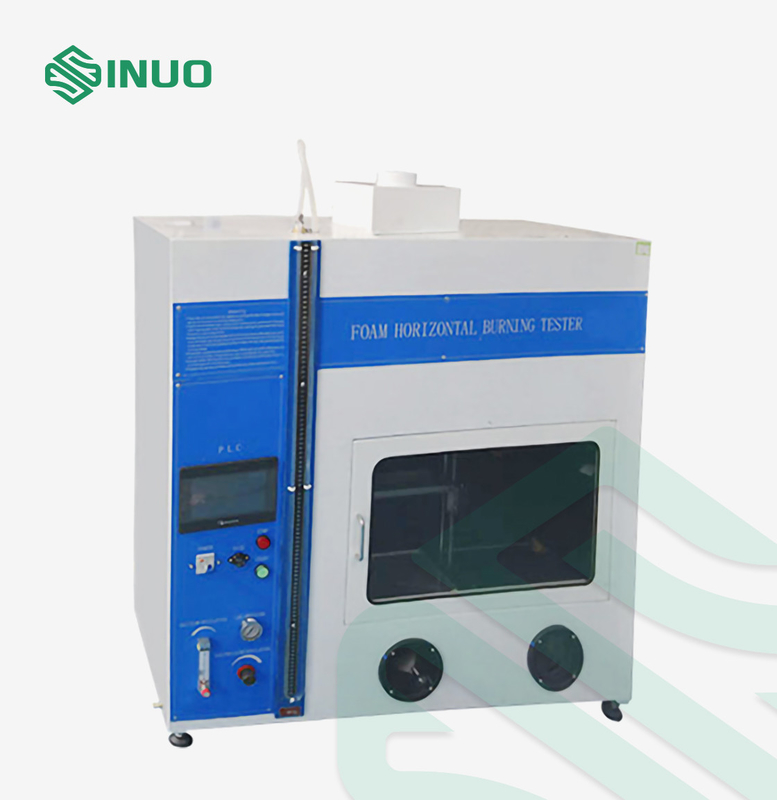

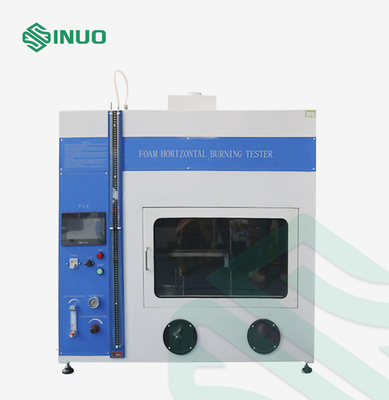

Structure: The testing machine is composed of a control chamber, a combustion burner, a flow meter, a high-pressure igniter and fixtures and a fume hood. The control chamber and fume hood can be made of high-grade steel, with beautiful appearance, smoke and gas corrosion resistance, and the control system has a high degree of automation, with automatic ignition, automatic air supply, automatic timing, automatic end of the test and other functions.



Technical Parameters


Model SN777 (Touch screen version)
Control and Operation Method PLC control, touch screen operation

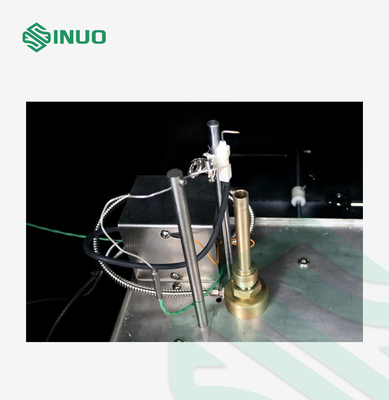

Burner ISO10093: 1998, burner inner diameter Φ9.5±0.3mm, cylinder length 100±10mm, with Bunsen burner wing top 48±1×1.3 ±0.05mm
Gas Pressure 0.1MPa
Gas Flow and Gas Source Type 965±30ml/min, 98% purity methane gas, mixed gas or propane gas can also be selected, adjusted by flow meter
Burning/self-extinguishing Time 0-9999X0.1S
Distance from The Top of the Burner Wing To The Sample 13±1mm
Flame Height 38±2mm, blue flame

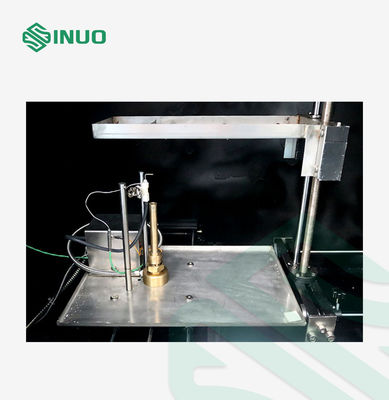

Support Net 215×75×13mm, 6.4mm grid made of Φ0.8 stainless steel wire
Lighting Equipped with a light, with control
Chamber and External Dimensions >0.5 cubic, black matte background, with exhaust fan, dimensions: WDH=1100×550×1200mm, 130kg
