| Brand Name: | Sinuo |
| Model Number: | SN778 |
| MOQ: | 1 |
| Price: | Customized |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets/month |

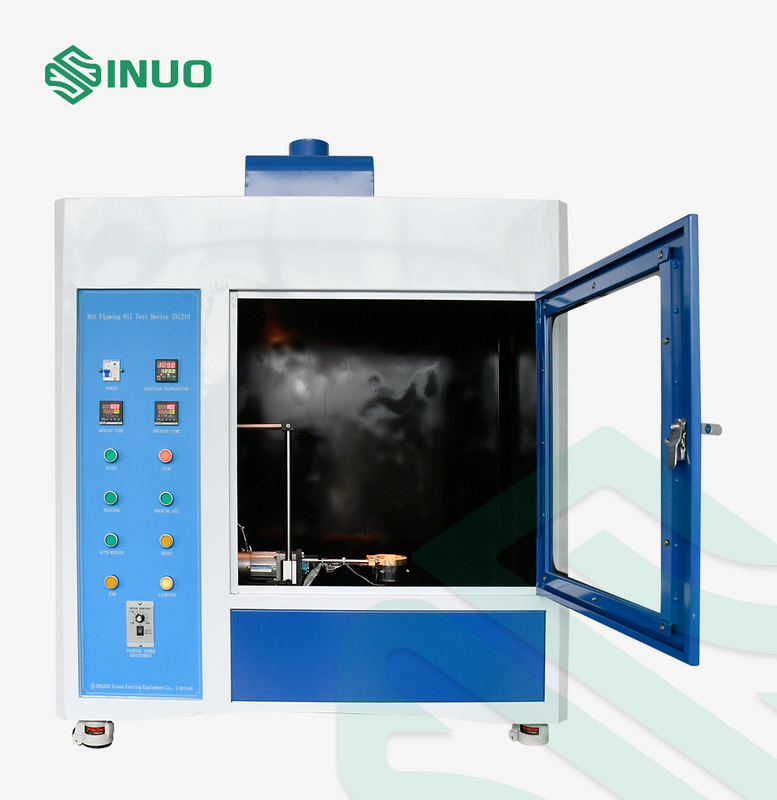

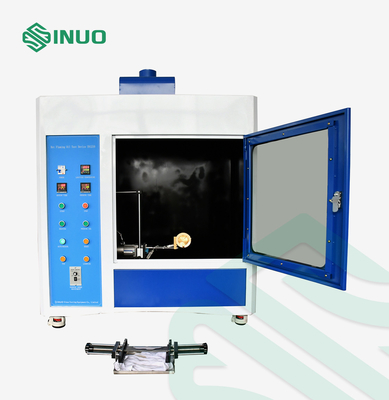

IEC 60695-2-20 Hot Wire Ignition Coil Test Method Apparatus
Complied Standards & Clauses
IEC60695-2-20 “Fire hazard testing - Part 2: Glowing/Hot wire based test methods - Section 20: Hot-wire coil ignitability test on materials”
Equipment Overview
Application: Suitable for fire hazard tests on solid electrical insulating materias of information technology equipment, low-voltage switchgear and control equipment parts, etc., simulate the thermal stress caused by hot components or overload resistance or ignition sources in a short time.
Test Principle: Adopts the electric heating wire of specific size (ф0.5mm length 250mm) and specific material (Ni80/Cr20). After the specified heating power (0.26W/mm) and the specified time (8s～12s) are pre-annealed, according to a certain winding tension (5.4N) and a certain winding distance (6 or 6.35mm), wind 5 full turns on the sample, test the sample with electric heating wire under the specified heating power (0.26W/mm) for 120s, and evaluate its fire hazard based on whether the sample is ignited or ignition time
Structure: Chamber structure, with fume hood.
Technical Parameters
| Control & Operation method |
Electrical control, button operation (PLC control touch screen operation is optional) |
| Hot-wire | ф0.5mm,Ni80/Cr20,length 250mm±5mm, cold resistance 5.28Ω/m |
| Annealing Bracket Spacing | 250mm |
| The Distance and Height of The Sample Holder | 70mm,height 60mm (the distance from the surface of the support to the surface of the receiving tray) |
| Winding Tension and Winding Pitch | 5.4N±0.05N, 6.35mm±0.5mm (with 5 full circles within 31.5mm±0.5mm, 6mm as per China national standard) |
| Annealing Time and Power | 8s～12s (1s～999.9s digital display can be preset), 0.26W/mm±4% (digital display can be adjusted) |
| Test Time and Power | 120s (1s～999.9s digital display can be preset), 0.26W/mm±4% (digital display can be adjusted) |
| Sample Size | L×W×H:(125 ± 5mm) ×(13.0 ± 0.5mm) ×(0.75+0.075 0mm,1.5+0.15 0mm,3+0.3 0mm)[ 0.75± 0.1 mm,1.5± 0.1 mm,3± 0.2 mm as per China national standard] |
| During Test | Automatic control of test program, independent ventilation |
| Equipped with Test Chamber Lighting, With Control | Equipped with a light, with control |
| Test Chamber and External Dimensions | >0.5 cubic, black matte background, with exhaust fan, dimensions: WDH=1100×550×1200mm, 130kg |
| Power supply | Match client's local power supply requirements |

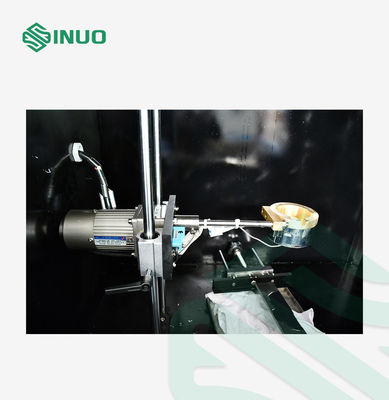

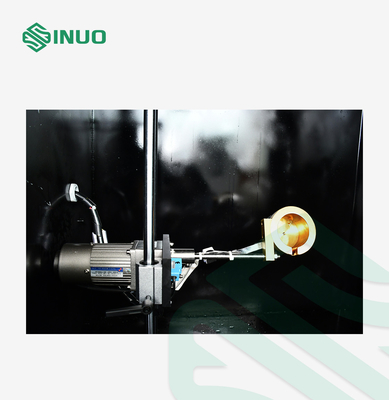

Details
