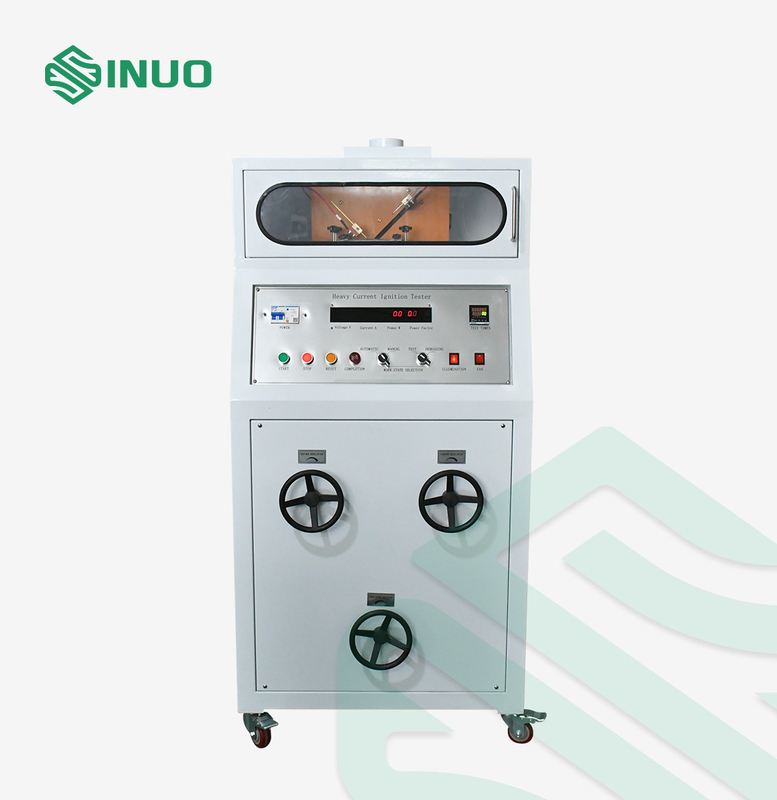

UL 746A High Current Arc Ignition Combustion Testing Equipment

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN779

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood Case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 20 sets/month
Contact Now

Detail Information

Applied Standard: UL 746A, UL498 And Etc. Control & Operation Method: Electrical Control & Button Operation
Arc Ignition Rate: 40 Times/min Electrode Separation Speed: 254±25㎜/S
Fixed Electrode Material: Copper Movable Electrode Material: Stainless Steel
Electrode Angle: At 45° To The Level Warranty Term: One Year
High Light:

IEC60695 Flammability Testing Equipment

,

ev Flammability Testing Equipment

,

High Current Arc Ignition Test Apparatus

Product Description





UL 746A High Current Arc Ignition Combustion Testing Equipment



Complied Standards & Clauses




UL 746A “Polymeric Materials - Short Term Property Evaluations” clause 33



UL 746C "Polymeric Materials – Use in Electrical Equipment Evaluations" clause 49



UL 498 "Attachment Plugs and Receptacles" clause 114



IEC 60950-1 “Information technology equipment - Safety - Part 1: General requirements”



......



Equipment Overview


Samples and Restrictions: Information technology equipment, low-voltage switchgear and control equipment parts



Application: Suitable for arcing resistance test of electrical and electronic products, household appliances and their materials, simulating possible leakage that caused on the insulator between live parts of different polarities or between live parts and grounded metal parts, used to measure and evaluate the arcing resistance of the insulator under the specified voltage.

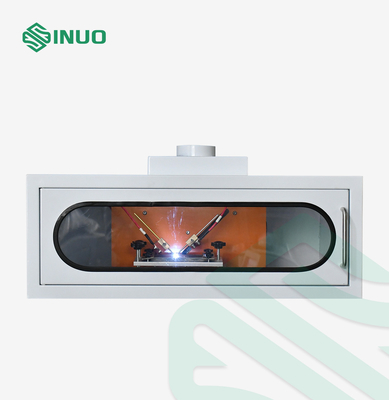

Test Principle: The high current arc ignition test apparatus adopts double electrodes, under a specific current (33A) and power factor (COSφ0.5), according to a certain arc ignition speed (254mm/s) and repetition frequency (40 times/min), the arc is repeated to 200 times on the surface of the sample, the high-current arc ignition resistance of the sample is evaluated (HAI) according to whether the sample is ignited or not. The smaller the level number, the harder the material is to be ignited.

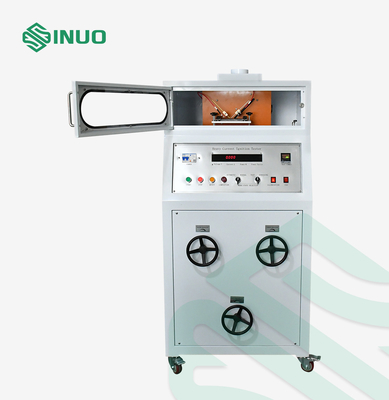

Structure: The chamber structure comes with a protective cover.



Technical Parameters


Control & Operation Method Electrical control, button operation
Arc Ignition Current, Power Factor When the power factor is 0.5, the current is 33A±0.5A
Arc Ignition Rate 40 times per minute.
Electrode Separation Speed 254±25㎜/S
Arc Strike Times 0-9999 can be preset

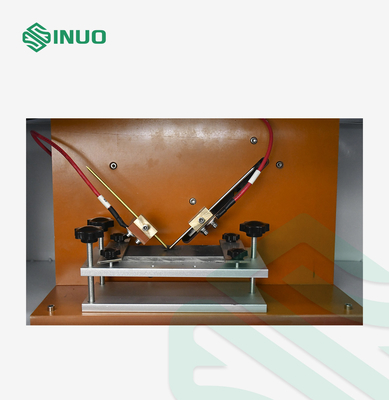

Electrode Material Fixed electrode: copper, diameter Ф3.5mm (Ф3.2) × 152mm, top 30° chisel-shaped chisel
Movable electrode: stainless steel, diameter Ф3.5mm (Ф3.2) ×152mm, end cone angle 60°
Electrode Angle At 45° to the level, the radius of curvature of the electrode head is 0.1mm
During Test Automatic control of test program, independent ventilation
Lighting Equipped with a light, with control
External Dimension WDH=800×700×1600mm,300kg
