| Brand Name: | Sinuo |
| Model Number: | SN772A |
| MOQ: | 1 |
| Price: | Customized |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets/month |

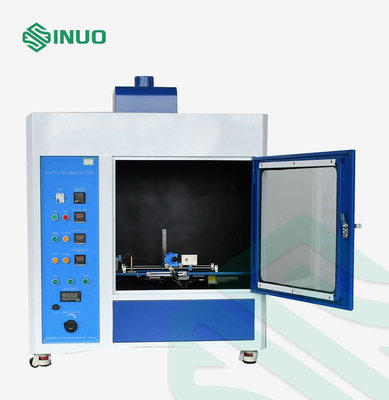

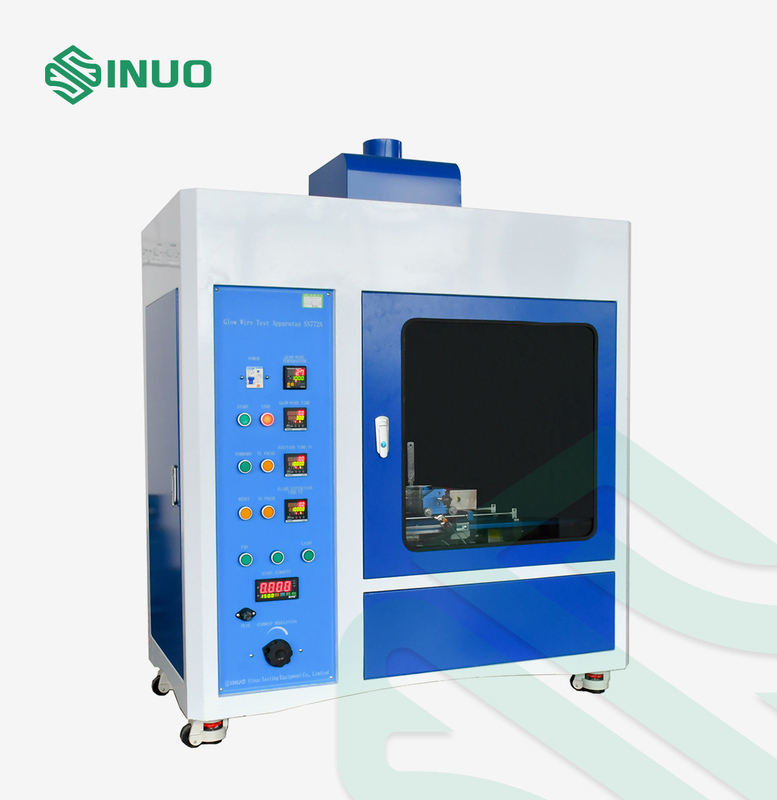

IEC 60695-2-10 Glow Wire Test Equipment Fire Hazard Testing Chamber
Complied Standards & Clauses
IEC60695-2-10 "Fire hazard testing - Part 2-10: Glowing/hot-wire based test methods - Glow-wire apparatus and common test procedure"
IEC 60695-2-11 "Fire hazard testing - Part 2-11: Glowing/hot-wire based test methods - Glow-wire flammability test method for end products (GWEPT)"
IEC 60695-2-12 "Fire hazard testing - Part 2-12: Glowing/hot-wire based test methods - Glow-wire flammability index (GWFI) test method for materials"
IEC60695-2-13 "Fire hazard testing - Part 2-13: Glowing/hot-wire based test methods - Glow-wire ignition temperature (GWIT) test method for materials"
UL746A "Polymeric Materials-Short Term Property Evaluations"
Equipment Overview
This device simulates the thermal stress test of glowing component or heat source like overload resistance or ignition source which is caused in s short time. It is suitable for electric and electronic products, household appliances and other material to do fire hazard testing. It is also used in the No flame ignition source fire test to test initiation temperature and flammability index of related glowing filament.

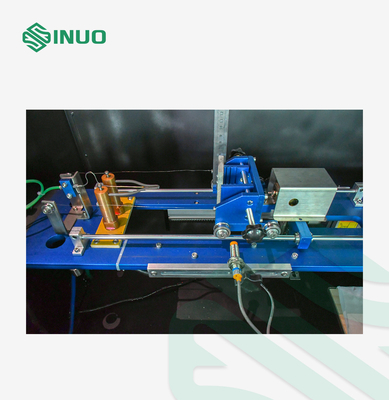

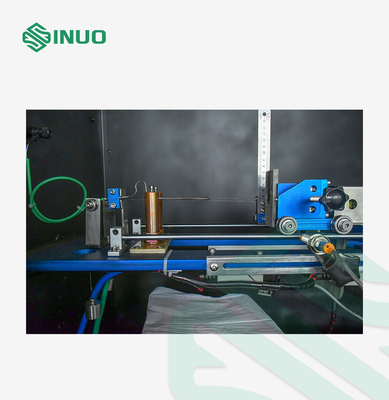

1.2 The test equipment adopts to solenoid valve switch to control the burning depth of test sample and equipped with measuring gauge. The test sample will break away automatically from glowing filament after reaching the set time. Also adopting the original imported UK BB K type armour (Ф1mm) whose temperature resistance is up to 1100° (exceed 1050°of standard requirement), this device is with accuracy temperature control.
Technical Parameters
| Working voltage | Match client's local power supply requirements |
| Control operation mode | Button control |
| Glow-wire element | Ф4mm ± 0.04mm (> 77 % Ni/20 ± 1 % Cr) special standard ring shape, horizontal standing |
| Specimen pressure on glow-wire element | 0.95N±0.1N |
| Maximum depth of heating | 7mm ± 0.5mm |
| Specimen fixture movement speed | 10mm /s ～ 25mm /s |
| Temperature calibration |
Calibration temperature:960°±10°C The glow wire element is heated by electric heating |
| Thermocouple: imported original BB 1mm armour nickel-chromium/nickel/ nickel aluminum K-Thermocouple, temperature resistance up to 1100°C | |
| Silver foil: purity 99.8%, area :2mm², thickness:0.06mm | |
| Tray | A layer of silk paper (12~30g/m³) is covered on the 10mm thick pine board, with a distance of 200±5mm below the test sample |
| Test chamber | >0.5 cube, sample distance from the inside of the chamber is greater than 100mm, black yogon background,background illuminance ≤ 20Lx,with exhaust fan |
| Glow-wire time | 30s±1s |
| Test procedure | The test sample is clamped on the movable fixture, the movable fixture can run forward automatically after testing started and will return automatically after glow-wire time is finished |
| Lighting | Equipped with lighting in the test chamber |
| Dimension | 1100*550*1200mm, 140kg |
