Gauges Copper Block Consumables for Flammability Testing Equipment

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN7712

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Carton Box
Delivery Time: 3 days
Payment Terms: T/T
Supply Ability: 100 pcs/month
Contact Now

Detail Information

U Head Size: Ф4mm ± 0.04mm Platinum Electrode Size: (5.0±0.1) × (2.0±0.1) Mm
Ф1mm Thermocouple: Temperature Resistance 1100° Ф0.5mm Thermocouple: American Original Omega Brand
Silk Paper: 180×180mm, 12-30g/m2 Pine Board: 180×180×10mm
50W Temperature Measuring Copper Head: Ф5.5±0.01mm 500W Temperature Measuring Copper Head: Ф9.0±0.01mm
High Light:

Gauges Flammability Testing Equipment

,

Consumables Flammability Testing Equipment

,

Electric Vehicle Flammability Test Apparatus

Product Description





Consumables for Flammability Testing Equipment



Complied Standards & Clauses


The consumables are for various of flammability test chambers, such as glow wire test apparatus, needle-flame test apparatus, tracking leakage test apparatus, horizontal and vertical burning test apparatus, etc.



Equipment Overview


Name  Accessories for flammability testing equipment as following:

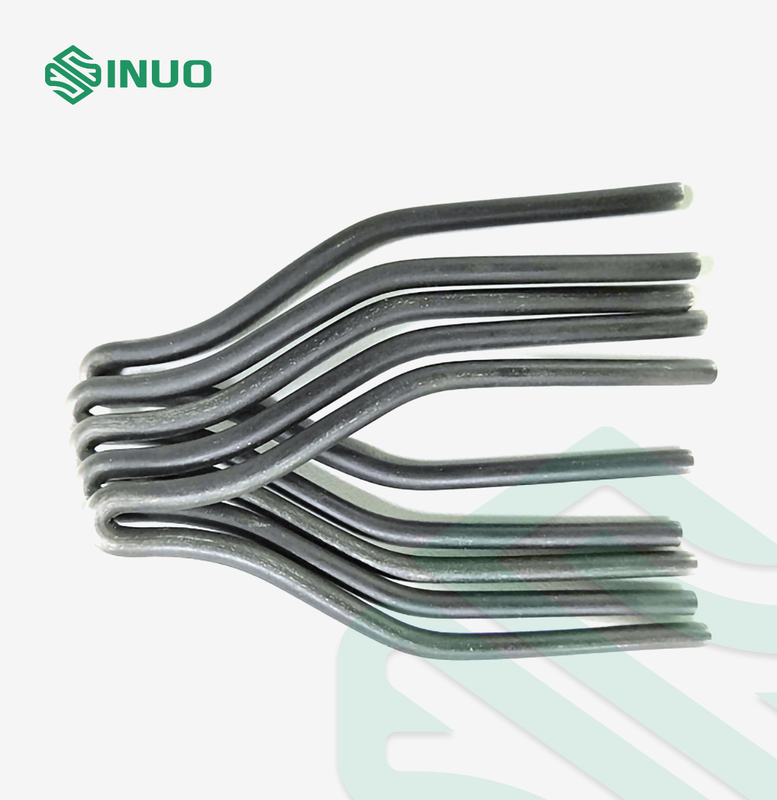

Glow Wire U Head Ф4mm ± 0.04mm (> 77 % Ni/20 ± 1 % Cr) standard shape
Ф1mm Thermocouple Ф1 Armored nickel-chromium/nickel-aluminum wire, K type, temperature resistance 1100°
Ф0.5mm Thermocouple American original Omega Ф0.5 armored nickel-chromium/nickel aluminum wire, K type, temperature resistance 1100°

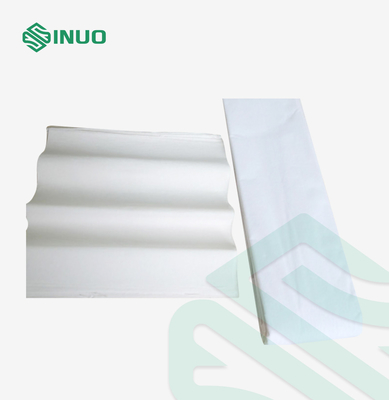

Silk Paper 180×180mm,12-30g/m2
Pine Board 180×180×10mm
Temperature Measuring Copper Head 50W:Ф5.5±0.01mm;500W: Ф9.0±0.01mm; needle-flame: Ф4.0±0.01mm
Platinum Electrode (5.0±0.1) × (2.0±0.1) mm, 30°±2° bevel, blade width 0.01-0.1mm, platinum purity greater than 99.0%



Gauges Copper Block Consumables for Flammability Testing Equipment 0



Gauges Copper Block Consumables for Flammability Testing Equipment 1
