UL2580 EV Lithium EV Battery Testing Equipment Cell Heavy Weight Impact Tester

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN555

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood Case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30 sets/month
Contact Now

Detail Information

Applied Standard: UL2580, UN38.3, UL 1642, UN38.3 Lifting Method: Electric
Visual Window Size: 390×360mm Inner Chamber Size: 500×300×800mm
Test Weight: 9.1kg±0.1kg Falling Height: 0~770mm
Bar Diameter: 15.8 ±0.2mm Control Method: PLC And Touch Screen
High Light:

PLC UL2580 EV Battery Testing Equipment

,

ul1642 EV Battery Testing Equipment

,

UL2580 Heavy Weight impact testing equipment

Product Description

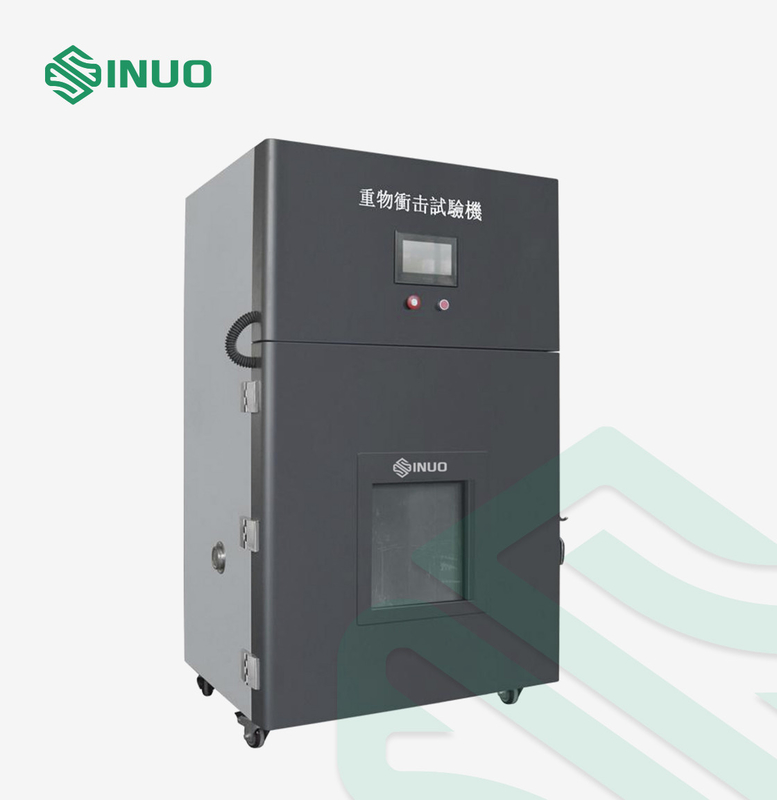

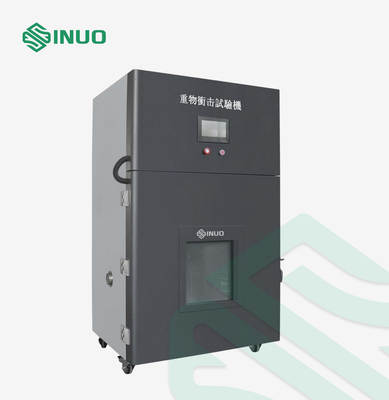

UL2580 EV Lithium Battery Cell Heavy Weight Impact Testing Equipment



Complied Standards & Clauses


UL 2580:2020 STANDARD FOR SAFETY Batteries for Use In Electric Vehicles Annex D3.4 figure D.1



GB31241-2014clause7.7



UN38.3 ,UL 1642



Equipment Overview


Application: It is used to simulate all kinds of batteries suffering from external impact during using, transportation and storage.



Test Principle:

The test sample battery placed on the same plane, a rod cross with a diameter of 15.8 ± 0.2mm (5 / 8Iinch) Cross cross placed in the center of the sample. One 9.1kg or 10kgHeavy objects fall from a certain height(610mm or1000mm)to the sample. Cylindrical or square battery when receiving impact test, the longitudinal axis should parallel to the plane, perpendicular to the longitudinal axis of the steel column. The maximum axis of square batteries is perpendicular to the steel column, and the maximum surface is perpendicular to the impact direction, and each battery only accepts an impact test.



Structure: One machine structure, the door uses explosion-proof lock + explosion-proof chain



Technical Parameters

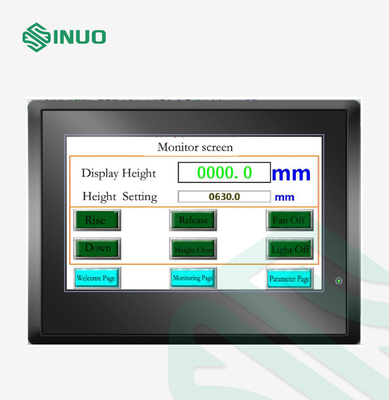

Control and Operation PLC touch screen intelligent control system, with remote control device
Dimensions

Inner box WDH=500×300×800mm,304 stainless steel

Outer box WDH=940×780×1620mm,A3 Cold rolled steel plate paint,thickness1.0mm

Visual window WH=390×360,20mm Tempered explosion-proof glass + protective steel network double-layer protection

Exhaust port 150mm, on the upper of the back box,

Visual window WH=390×360,20mm

Lifting method Electric
Upper and down impact surface Steel Plate
Test weight 9.1kg±0.1kg
Falling Height 0~770mm(Adjustable),(Default) 610±25mm
Bar Diameter 15.8 ±0.2mm
USB With USB interface, test data can be exported
Safety Protection System Explosion-proof relief device, exhaustive device, fire extinguishing system, electronic door lock system, safe stop switch.
Optional Purchase Temperature capture, voltage collection system, video surveillance system
