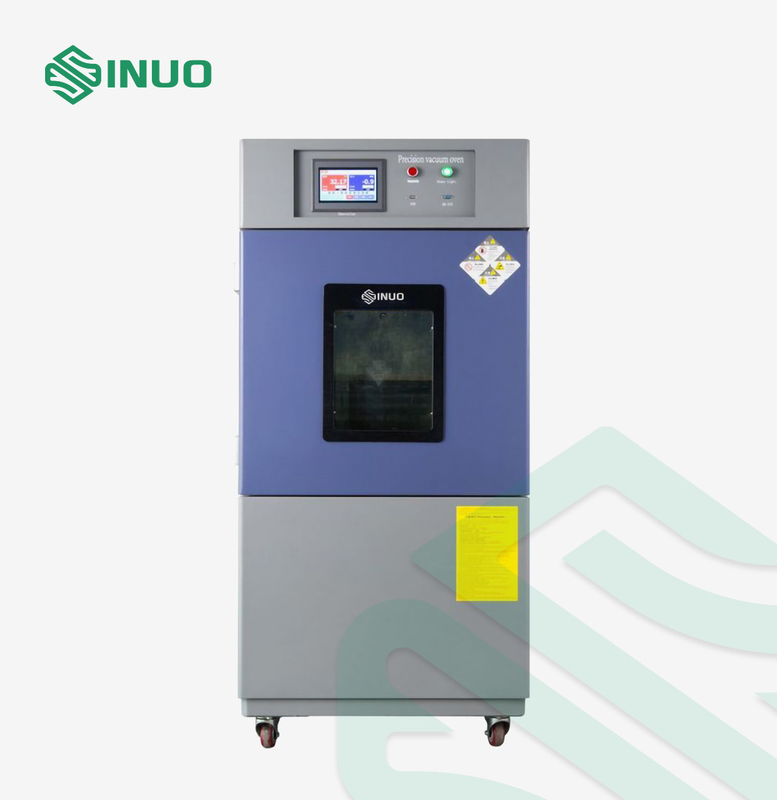

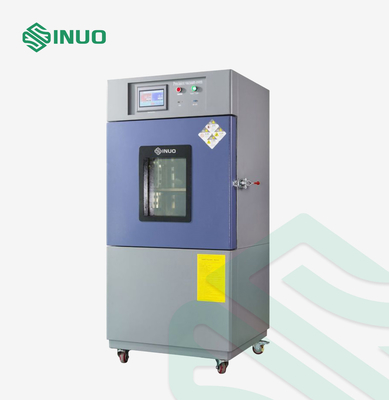

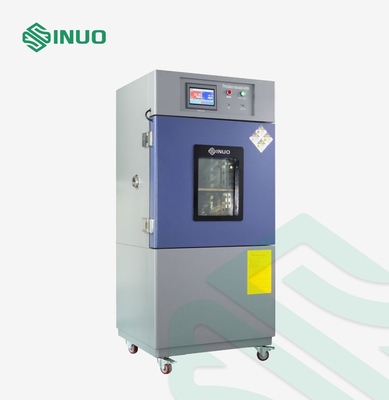

Lithium Ion Cells Thermal Abuse Heating Oven EV Battery Testing Equipment UL2580

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN556

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood Case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30 sets/month
Contact Now

Detail Information

Applied Standard: UL2580, UN38.3, UL 1642 Inner Size: WDH=600×500×600mm
Temperature Range: RT~ 160 ° C Control Precision: ±0.5℃
Temperature Deviation: ±2.0℃(No Load) Heating Rate: RT~150°C (linear 5±2℃/min)
Constant Temperature Time: 0~99 Hours 59 Times 59 Seconds Control Method: PLC And Touch Screen
High Light:

PLC IEC EV Battery Testing Equipment

,

UL2580 Lithium EV Battery Testing Equipment

,

UL2580 battery and cell test equipment

Product Description





UL2580 Electrical Vehicle Lithium-ion Battery Cells Heating Testing Equipment



Complied Standards & Clauses


UL 2580 Batteries for Use In Electric Vehicles Annex B2.5 and Annex D3.7



IEC 62133-1: 2017 Secondary cells and batteries containing alkaline or other non-acid electrolytes – Safety requirements for portable sealed secondary cells, and for batteries made from them, for use in portable applications – Part 1: Nickel systems clause 7.3.5



UN38.3, UL 1642



Equipment Overview


Application: It is used to simulate all kinds of battery security performance of prevent fire and explosion in the fast-tempered environment.



Test Principle:

Battery thermal impact testing machine is also called battery heat abuse test chamber, which is placed in natural convection or forced high-temperature tanks to be placed in a high temperature tank of natural convection or incentive, and maintains a certain temperature and maintains a certain time, using a hot air circulation system. Which can ensure the work temperature evenly distributed.



Structure: One machine structure, the door uses explosion-proof lock + explosion-proof chain



Technical Parameters


Control and Operation PLC touch intelligent control system, with remote control system
Dimensions

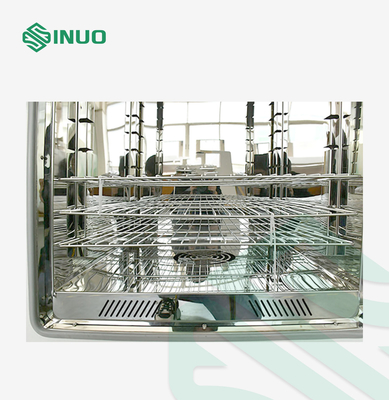

Inner box WDH=600×500×600mm,304 stainless steel

Outer box WDH=940×780×1620mm,A3 cold rolled steel plate paint,thincless1.0mm

Visual window WH=390×360,20mm Tempered explosion-proof glass + protective steel network double-layer protection

Insulation material: import high-density glass rock cotton, good insulation, maximize temperature insulation, anti-secret force material is high temperature silica gel, can withstand more than 300 degrees for a long time

Test hole:There is a test hole hole cover cap with a diameter of 50 mm on the left and right sides of the box.

Temperature Range Regular temperature ~ 160 ° C can adjust control
Control Precision ±0.5℃
Temperature Deviation ±2.0℃(No load)
Heating Rate RT~150°C (linear 5±2℃/min)
Constant Temperature Time 0~99hours59times59seconds
USB With USB interface, test data can be exported
Safety Protection System Explosion-proof relief device, smoke device, explosion-proof lighting device, electronic door lock system, safe stop switch
