IEC 60086-4 Battery Test Machine Lithium Batteries Fire Explosion Testing Equipment
Complied Standards & Clauses
IEC60086-4:2014 Primary batteries –Part 4: Safety of lithium batteries clause 6.2.5 & 6.2.7 figure 1
UL 2580 Batteries for Use In Electric Vehicles Annex B2.10 and D3.10
UL 1642 BATTERIES FOR USE Lithium Batteries Clause 20 FIG. 20.1
UL 2054 Advantage for Battery Packs Clause 22 FIG. 22
Technical Parameters
| Sample limits |
This test equipment prohibits: Testing or storage of biological specimens Test or storage of strong electromagnetic emission source specimens Testing or storage of radioactive material samples Testing or storage of samples of highly toxic substances Test or storage of specimens during testing or storage that may produce such substances or objects |
|
| Number of stations | 1 station | |
| Burner | Bunsen burner, pipe inner diameter 0.375 inch (9.5mm) | |
| Flame Applicate Time | 99H59M59.9S±0.1s | |
| Flame Height | 10~75±2mm can be adjustable | |
| Testing Hole Diameter | 102mm | |
| Fire Ignition Device | Auto fire ignition | |
| Schematic diagram of blowtorch and electric fire device |  |
|
| Testing Bar Diameter | 1/4 inch (6.4mm) ×12 inch (305mm) | |
| Test Cover Width | 24 inches (610mm) ×12 inch (305mm), octagonal | |
| Test Cover Height | 12inch (305mm) | |
| Testing Aluminum Mesh Diameter | 0.010-inch (0.25mm) 16hole×16hole | |
| Octagonal stainless steel net cover | Distance between each other 2 feet (610mm), Octagonal net cover height1 feet (305mm) | |
| Screen | 150×150mm (made of steel wire mesh with 20 holes per foot or steel wire 0.017 inch /0.43mm), Max capacity:5kg | |
|
Standard drawing of Eight-sided cover |
 |
|
|
Physical picture for Eight-sided cover |
 |
|
| Burning Gas Requirement | High purity liquefied petroleum gas (should be prepared by Customer) | |
| Control system | PLC, and a remote controller is offered, whole test procedure fully automatic | |
| Display and Operation Method | Touch Screen | |
| Video Monitor | Brand | MI |
| Model | MJSXJ09CM | |
| Size | 115*78*78mm | |
| Resolution | 1296P(3 megapixel) | |
| Viewing angle | Horizontal 360° Vertical 108° | |
| PTZ control | APP control (Horizontal + Vertical) | |
| Full color night market | Low light full color | |
| Infrared night vision | Support | |
| Two-way voice | Support | |
| Tracking function | Support | |
| Install method | lay flat /upside down /side mounted | |
| Wifi channel | 2.4GHz | |
| Storage | Come with 32G microSD card | |
| Inter Size | W800XD700XH700 mm | |

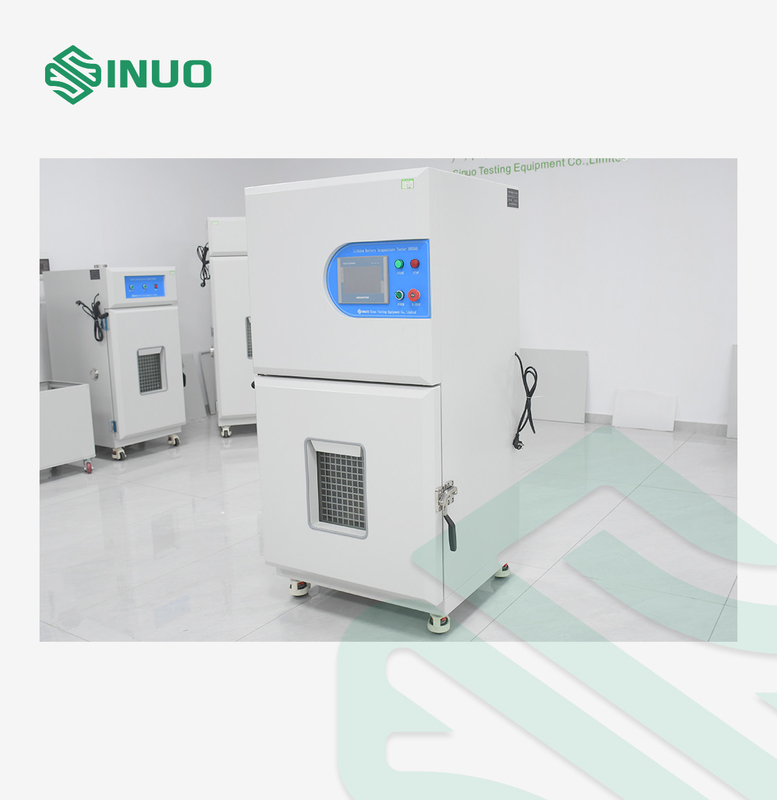

| Overall Dimension | W1000XD900XH1620 mm | |

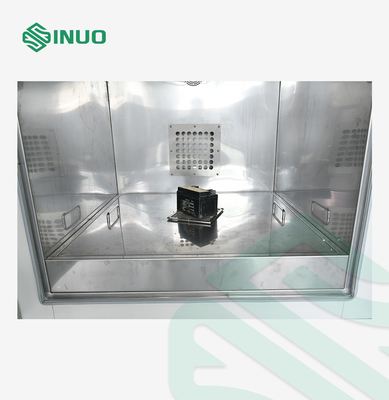

| Observation Window | 430 X 350mm(20mm thickness tempered explosion proof glass), with explosion-proof net | |
| Inner chamber Material | SUS304 Stainless steel | |
| Outer Chamber Material | Cold rolled powder painted | |
| Smoke Extractor | Φ 150mm on back side | |
| Bottom | Installed with universal wheels | |
| Pressure Relief Port | Test chamber with pressure relief device, when the pressure in the chamber to set up, self-open the pressure relief hole to release the pressure out of the chamber | |
Equipment Overview
1 Product Overview
1.1 Applied standards
This apparatus conforms to IEC60086-4:2014 FIG 1, UL2054 Clause 22 FIG. 22.1, UL 1642-2009 Clause 20 FIG. 20.1, GB 31241-2014 Article 7.9 FIG. E.2.
1.2 Application
Battery Fire Exposure Test Apparatus is an essential test equipment for battery manufacturers and quality inspection departments. This equipment has the characteristics of convenient operation, safety and reliability, and high precision. It is an ideal testing machine for battery combustion and projectile testing.
1.3 Features
1.3.1 PLC and touch screen for control and operation.
1.3.2 When there is a smoke alarm, the exhaust will automatically open, and when there is no smoke, it will be closed after a delay.
1.3.3 Unsuccessful ignition alarm and cut off steam source.
1.3.4 Built-in lighting, through external reflection, to ensure the life and safety of lighting, etc.
1.3.5 The HD video camera and visual window can enable operator to clearly observe the changes of the test object in the experiment.
1.3.6 With explosion-proof glass, and equipped with steel mesh, double protection.
1.3.7 Controlled by remote controller, the maximum distance can reach 10 meters.
1.4 Test procedures

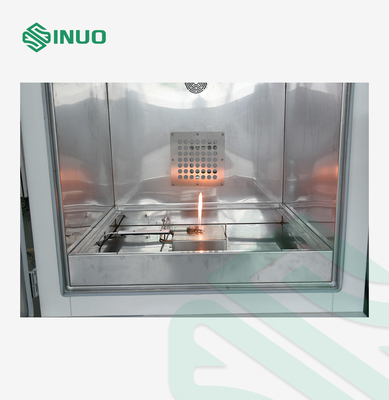

The test battery is placed on a flat table covered with a cover plate with a 4-inch diameter hole in the middle. Cover plate is made of steel wire mesh with 20 holes per foot or steel wire 0.017 inch (0.43mm). Place a screen with 8 sides of 2 feet wide (610 mm) and 1 foot high (305 mm) on each side around the specimen. The metal mesh consists of 0.010-inch (0.25mm) metal wire at 16-18 wires per inch. The sample is placed on a metal mesh, covering the hole in the center of the table, and then heated until it explodes or is destroyed. The direction of the safety valve is parallel to the asbestos cloth.
Acceptance: No part of the explosive battery penetrates the screen, and no part or all of the battery protrudes from the screen.
