| Brand Name: | Sinuo |
| Model Number: | SN558 |
| MOQ: | 1 |
| Price: | Customized |
| Payment Terms: | T/T |
| Supply Ability: | 10 sets/month |

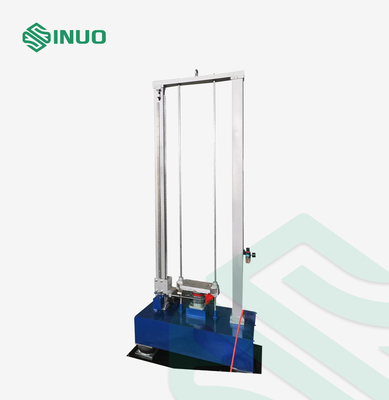

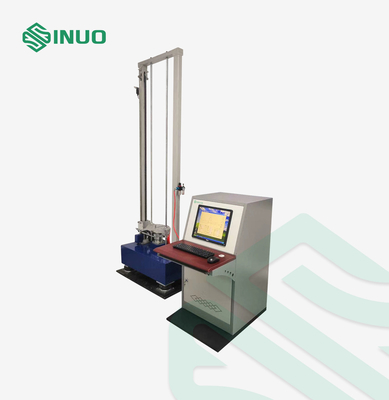

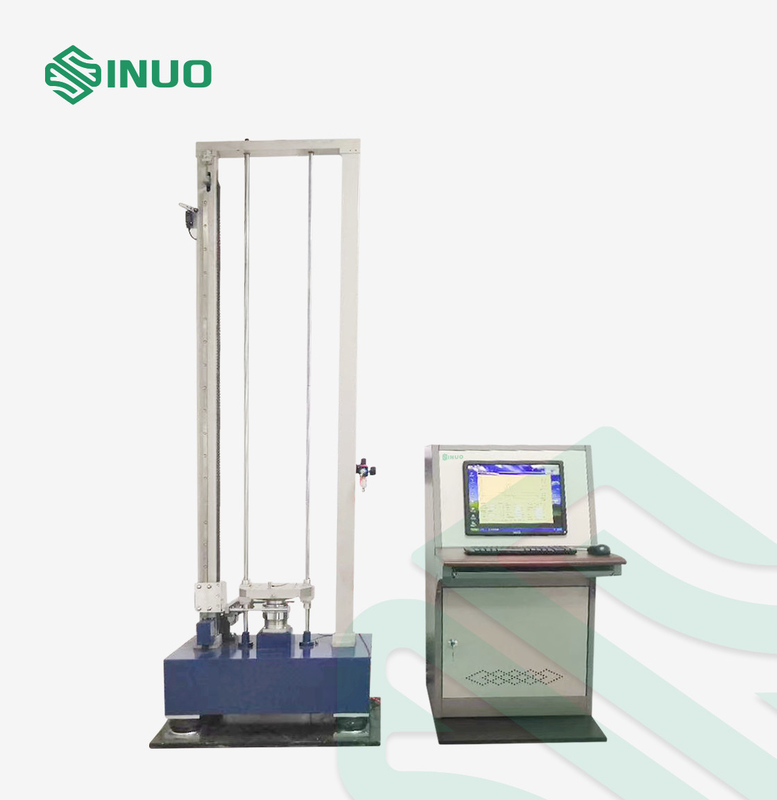

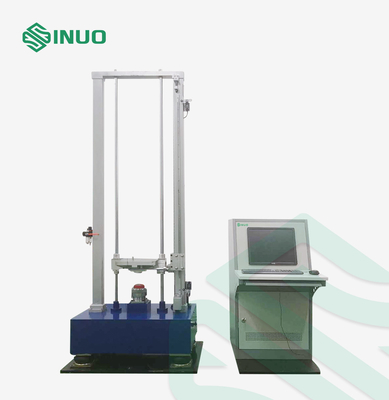

UL2580 EV Lithium Battery Acceleration Mechanical Shock Testing Equipment
Complied Standards & Clauses
UL 2580 Batteries for Use In Electric Vehicles Annex B2.2 and Annex D 3.5
IEC 62133-2012
UL 1642,UN38.3
Equipment Overview
Samples and Restrictions: New energy lithium battery, electronic products, aerospace, shipbuilding, military industry, auto parts, etc.
Application: The acceleration shock test bench is mainly suitable for shock resistance tests in the fields of new energy lithium batteries, electronic products, aerospace, shipbuilding, military industry, auto parts, and transportation.
Test Principle:
It can do normal shock test with half sine wave, square wave, sawtooth wave etc., simulate products under real environment shock conditions, thus improve the products and package structure.
Structure: Floor-standing structure
Use Environment:
1. Power supply:AC380V±10%,50/60Hz power
2. Compressed air:0.5～0.8MPa
3. Temperature:RT～40℃
4. Humidity:＜85RH%
Technical Parameters
| Control and operation | Industrial control system, computer operation |
| Bench Dimension | 200x200mm |
| Max. Loading Capacity | 10Kg |
| Shock Peak Acceleration | Half sinusoidal wave 30～600G |
| Pulse Duration | Half sinusoidal wave :0.6～20ms |
| Acceleration Tolerance | ≤10% |
| Speed Change | ≤10% |
| Table Lateral Ratio | ≤10% |
| Compressed air | 0.5～0.8Mpa |
| Measuring System | |
| 1,Input channel: 4channel,support voltage, IEPE signal direct access | |
| 2,1MHz Sampling frequency: up to 1MHz | |
| 3,Pulse duration: 0.1—100ms | |
| 4,Maximum acceleration: 10000G | |
| 5,Communication Interface: USB2.0 | |
| 6,Voltage range: -10VPEAK～+10 VPEAK | |
| 7,Standard Compliance: ISO, MIL-STD-810, or customized standards | |
| 8,operating system: Microsoft Windows 2000/XP/7 | |
| 9,Analysis function: Impact measurement analysis, impact response spectrum analysis, pulse analysis, impact damage boundary analysis, auxiliary force deformation, impact response time domain calculation, FFT analysis, etc. | |
| Accelerometer | |
| Mode of output: charge type | |
| Sensitivity: 3.93pC/g | |
| Frequency range； 0.5～12KHz | |
| Acceleration range: ±2500G | |
| Dimensions and Weight | DWH= 1750x1800x2650mm,3100kg |
