| Brand Name: | Sinuo |
| Model Number: | SN5510 |
| MOQ: | 1 |
| Price: | Customized |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets/month |

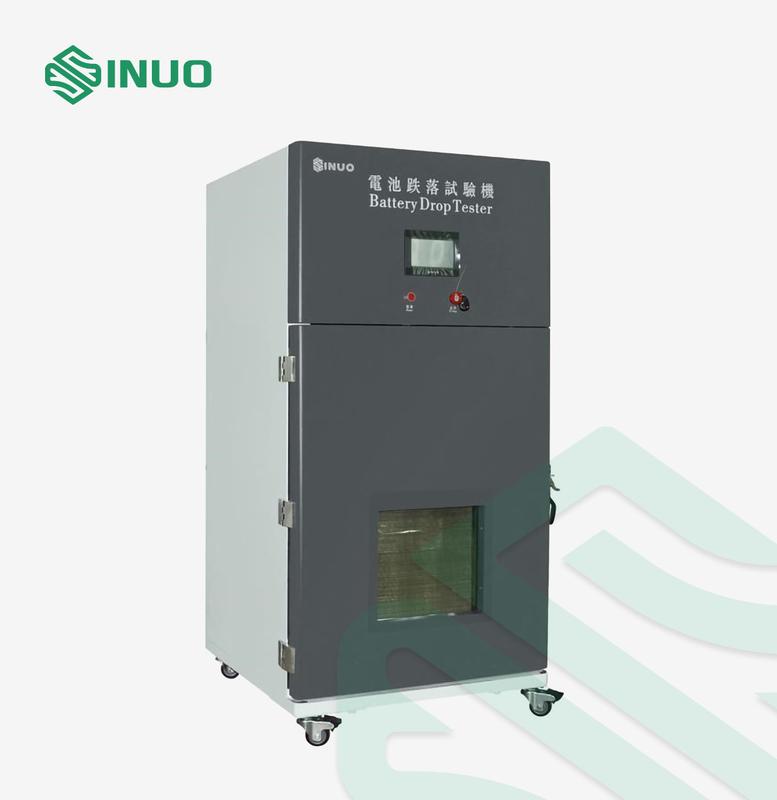

UL2580 Lithium Battery Drop Tester For Electric Vehicle
Complied Standards & Clauses
UL 2580:2020 STANDARD FOR SAFETY Batteries for Use In Electric Vehicles Annex B2.3
IEC 62133-2012
UL 1642,UN38.3
Equipment Overview
Samples and Restrictions: New energy lithium battery, electronic products, aerospace, shipbuilding, military industry, auto parts, etc.
Application: Adopt pneumatic adsorption and release to simulate the free fall process of battery products and verify its drop performance.
Structure: One machine structure, the door uses explosion-proof lock + explosion-proof chain
Use Environment:
Power supply: AC220V±10%/50Hz 3KW,environment temperature: 5℃～+35℃,relative humidity:≦85%RH There should be no high concentration dust, corrosive gas and flammable and explosive atmosphere.
Technical Parameters
| Control and Operation | PLC and touch screen intelligent control system with remote control device |
| Cabinet Specifications |
Inner chamber WDH=600×700×1500mm,304stainless steel,thickness 1.0mm Outer chamber WDH=700×900×1800mm,A3 Cold rolled steel plate baking varnish,thickness 1.0mm View window WH= 390 X 360mm (20mm Thick tempered explosion-proof glass) |
| Drop Height | 300～1200mm(adjustable) |
| Test Method | Free fall |
| Test Load | 0～5kg |
| Maximum size of Specimen | W200 x D200 x H200mm |

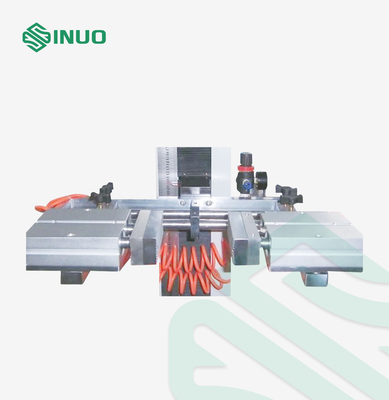

| Drop Method | Pneumatic drop |
| Lifting Method | Electric |
| Safety Devices | Fully enclosed explosion-proof device |
| Air pressure | ＞0.3Mpa |
| Drop Panel Size | W600 x D700 x H10mm (Solid core steel plate), hard wood board, cement board (optional) |
| Security | Automatic explosion-proof pressure relief device, explosion-proof chain, three-color light alarm device, remote control, smoke exhaust device, fire extinguishing device, etc. |
| Expand Function | Temperature acquisition, voltage acquisition system, video monitoring system |
