UL2580 EV Lithium Battery Cells Low Pressure Altitude Simulation Testing Equipment

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN5511

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood Case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30 sets/month
Contact Now

Detail Information

Applied Standard: UL2580, UL 1642, UL38.3 And Etc. Inner Chamber: WDH= 600×600×600mm
View Window: WH= 390 X 360mm Test Time: 0~99H59M59S Can Be Set
Air Pressure: Atmospheric ~5Kpa(adjustable) USB Interface: With USB Interface
Inner Chamber Material: Reinforced Steel & Stainless Steel Outer Chamber Material: A3 Cold Rolled Steel Plate Baking Varnish
High Light:

IEC 62133 EV Lithium Battery Cells

,

UL2580 EV Lithium Battery Cells

,

IEC 62133 Altitude Simulation Testing Equipment

Product Description

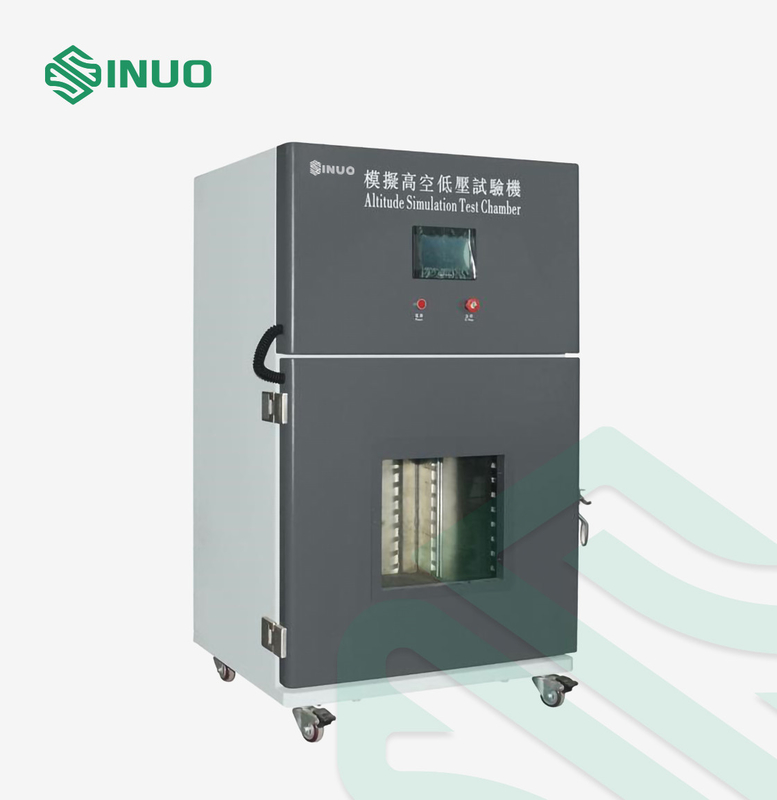

UL2580 EV Lithium Battery Cells Low Pressure Altitude Simulation Testing Equipment



Complied Standards & Clauses


UL 2580:2020 STANDARD FOR SAFETY Batteries for Use In Electric Vehicles Annex D3.9



IEC 62133-2012 clause7.3.7



UL 1642,UN38.3



Equipment Overview


Samples and Restrictions: New energy lithium battery, electronic products, aerospace, shipbuilding, military industry, auto parts, etc.



Application: The high-altitude and low-pressure test box of lithium batteries is designed according to UL, EN, IEC and other standard test requirements. It can reach the low-pressure storage state of the sample in a short time. It can automatically control the test cycle, monitor the pressure change in the box throughout the process, and realize the automatic termination of the test. The simulated battery and battery pack are stored for 6 hours at a pressure equal to or lower than 11.6kPa and an ambient temperature of (20±5) °C. If the battery has no leakage, no exhaust, no disassembly, no rupture, and no fire, and the open circuit voltage of each test cell or battery pack after the test is not less than 90% of its voltage before the simulation test, that is, it is qualified.



Structure:  One machine structure, the door uses explosion-proof lock + explosion-proof chain



Use Environment:

Power supply: AC220V±10%/50Hz 2KW,environment temperature: 5℃~+35℃,,relative humidity:≦85%RH There should be no high concentration dust, corrosive gas and flammable and explosive atmosphere.



Technical Parameters

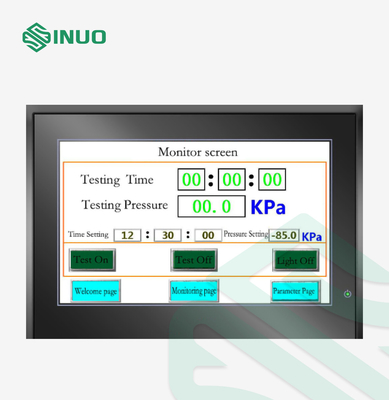

Control and Operation PLC and touch screen intelligent control system with remote control device
Cabinet specifications

Inner chamber WDH= 600×600×600mm,Reinforced steel + stainless steel(thickness 10.0mm)

Outer chamber WDH=940×780×1620mm,A3 cold rolled steel plate baking varnish,thickness 1.5mm

View window WH= 390 X 360mm (20mmThick tempered explosion-proof glass)

Timing time 99H 59M 59S
Air Pressure Atmospheric ~5Kpa(adjustable)
Unit Kpa
USB Interface With USB interface, test data can be exported
Option Video surveillance system, terminal device
