Good price Constant High Low Temperature Thermal Test Chamber 150L -40℃~150℃ online

Constant High Low Temperature Thermal Test Chamber 150L -40℃~150℃

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN881-150L

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood Case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30 sets/month
Contact Now

Detail Information

Applied Standard: IEC60068-2-2, Etc. Working Volum: 150L
Inner Size: 500×500×600mm Temperature Range: -40℃~150℃
Temperature Fluctuation: ±0.5℃ Temperature Uniformity: ±2℃
Temperature Resolution: 0.1℃ Humidity Range: 20%~98%RH
High Light:

SUS304 Temperature Humidity Test Chamber

,

150L Temperature Humidity Test Chamber

,

500×500×600mm humidity environmental chamber

Product Description





Temperature and Humidity Test Chamber 150L



Complied Standards & Clauses


IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”



IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”



IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT ”



IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”



Technical Parameters


Control & Operation PLC and touch screen intelligent control system
Chamber Size (Optional) Inner Size External Size
150L, WDH=500×500×600mm WDH=1050×970×1750mm
Temperature Range (Optional)

A: -20~150℃;

B: -40~150℃;

C: -70~150℃

Humidity Range 20%~98%RH
Temperature Resolution 0.1℃
Temperature Fluctuation ±0.5℃
Temperature Uniformity ±2℃
Humidity Deviation ±3%RH
Heating Rate ≧2-3°C/min
Cooling Rate ≧0.7-1°C/min



Equipment Overview


Test Principle: The heating, humidification and refrigeration system are used to control and change the ambient temperature and humidity in the chamber, to simulate the ambient temperature and humidity and alternating procedures required by the product.



Application: It is used for cold, heat, humidity and dryness testing of raw materials and devices such as electronics, electricians, electrical appliances, plastics, etc. The purpose is to confirm the products reliability of storage and transportation under high and low temperature alternating heat and humidity.

Constant High Low Temperature Thermal Test Chamber 150L -40℃~150℃ 0

Structure:

This machine adopts a closed chamber structure with the following features:

A. It has an extremely wide temperature and humidity control range to meet the various needs of users.



B. It adopts a unique balanced temperature adjustment and humidity control mode to adjust the ideal temperature and humidity environment. The heating and humidification capability are stable and balanced, and the temperature and humidity control are high-precision and high-stability.



C. Automatic selection of refrigeration circuit: The automatic control device has the ability of automatically starting the running refrigeration circuit according to the set value of temperature, can start the cooling directly under the high temperature state. The refrigeration adopts the air-cooled condensing unit with fully enclosed compressor (imported).

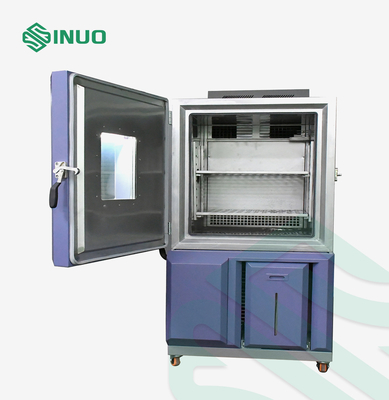

D. The door is equipped with a observation window, which is convenient for observing the test state of the test sample.



Questions & Answers


Q: Can you customize the temprature range for the temperature and humidity test chambers?
A: Yes, we can customize the temperature range according to client's specific requirements, our general ranges are :0~
150℃; -20 ~ 150℃; - 40 ~ 150 ℃; - 70 ~ 150 ℃. Other temeprature range can be customized.



Q: What are the size options for this device?
A: The size of the equipment can be customized according to your requirements.



Q: What's the heating and cooling rate of your temperature and humidity test chambers?
A: Heating rate:
≧2-3°C/min, cooling rate: ≧0.7-1°C/min. Can be customized according to client's specific requirements.
