Good price IEC 60068-2-1 Constant Temperature Humidity Climate Test Chamber 408L online

IEC 60068-2-1 Constant Temperature Humidity Climate Test Chamber 408L

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN881-408L

Payment & Shipping Terms:

Minimum Order Quantity: 1
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now

Detail Information

Applied Standard: IEC60068-2-1, Etc. Inner Size: 800×600×850mm
Working Volum: 408L Heating Rate: ≧2-3°C/min
Cooling Rate: ≧0.7-1°C/min Humidity Range: (20 ~ 98) % RH
Inner Chamber Material: SUS304# Stainless Steel Plates Outer Chamber Material: Sprayed A3 Plates
High Light:

Constant temperature humidity environmental chamber

,

408L temperature humidity environmental chamber

,

800×600×850mm environmental humidity chamber

Product Description





IEC60068-2-1 Constant Temperature Humidity Climate Test Chamber 408L



Complied Standards & Clauses


IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”



IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”



IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT ”



IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”



Technical Parameters


Control & Operation PLC and touch screen intelligent control system
Chamber Size (Optional) Inner Size External Size
408L, WDH=800×600×850mm WDH=1350×1150×1950mm
Temperature Range (Optional)

A: -20~150℃;

B: -40~150℃;

C: -70~150℃

Humidity Range 20%~98%RH
Temperature Resolution 0.1℃
Temperature Fluctuation ±0.5℃
Temperature Uniformity ±2℃
Humidity Deviation ±3%RH
Heating Rate ≧2-3°C/min
Cooling Rate ≧0.7-1°C/min



Equipment Overview


Samples and Restrictions: It is used for cold, heat, humidity and dryness testing of raw materials and devices such as electronics, electricians, electrical appliances, plastics, etc.



Application: It is used for cold, heat, humidity and dryness testing of raw materials and devices such as electronics, electricians, electrical appliances, plastics, etc. The purpose is to confirm the products reliability of storage and transportation under high and low temperature alternating heat and humidity.

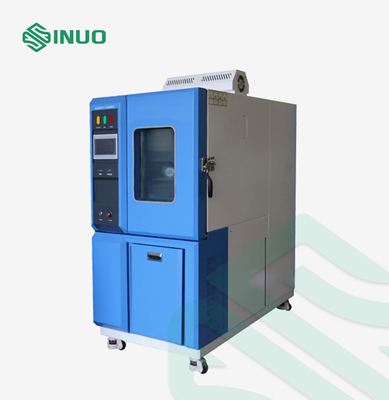

IEC 60068-2-1 Constant Temperature Humidity Climate Test Chamber 408L 0



Test Principle: The heating, humidification and refrigeration system are used to control and change the ambient temperature and humidity in the chamber, to simulate the ambient temperature and humidity and alternating procedures required by the product.



Structure:

This machine adopts a closed chamber structure with the following features:

A. It has an extremely wide temperature and humidity control range to meet the various needs of users.



B. It adopts a unique balanced temperature adjustment and humidity control mode to adjust the ideal temperature and humidity environment. The heating and humidification capability are stable and balanced, and the temperature and humidity control are high-precision and high-stability.



C. Automatic selection of refrigeration circuit: The automatic control device has the ability of automatically starting the running refrigeration circuit according to the set value of temperature, can start the cooling directly under the high temperature state. The refrigeration adopts the air-cooled condensing unit with fully enclosed compressor (imported).



D. The door is equipped with a observation window, which is convenient for observing the test state of the test sample.



Questions & Answers


Q: Can you customize the temprature range for the temperature and humidity test chambers?
A: Yes, we can customize the temperature range according to client's specific requirements, our general ranges are :0~
150℃; -20 ~ 150℃; - 40 ~ 150 ℃; - 70 ~ 150 ℃. Other temeprature range can be customized.



Q: What are the size options for this device?
A: The size of the equipment can be customized according to your requirements.



Q: What's the heating and cooling rate of your temperature and humidity test chambers?
A: Heating rate:
≧2-3°C/min, cooling rate: ≧0.7-1°C/min. Can be customized according to client's specific requirements.

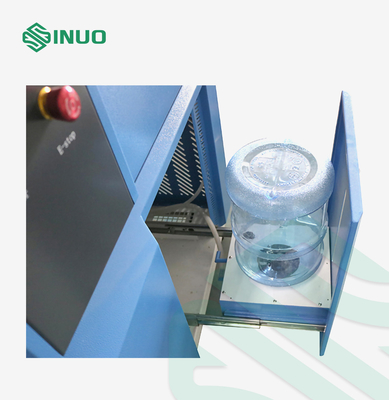

IEC 60068-2-1 Constant Temperature Humidity Climate Test Chamber 408L 1



Details

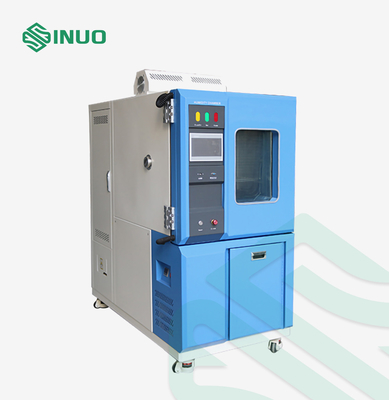

IEC 60068-2-1 Constant Temperature Humidity Climate Test Chamber 408L 2
