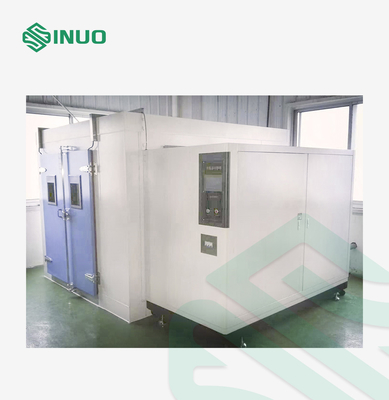

3375L Temperature Humidity Control Walk In Environmental Test Chamber

3375L Temperature Humidity Control Walk In Environmental Test Chamber

Brand Name: Sinuo
Model Number: SN886-3375L
MOQ: 1
Price: Customized
Payment Terms: T/T
Supply Ability: 10 sets/month
Detail Information
Place of Origin:
China
Certification:
Calibration Certificate (Cost Additional)
Applied Standard:
IEC 60068-2-1/2/30/78
Nominal Volume:
3375L
Temperature Range:
20 ℃~+120℃
Temperature Fluctuation:
≤±0.5℃
Humidity Range:
(25 ~ 98)% RH
Heating Time:
≥3℃/min
Cooling Time:
≥1℃-1.2℃ /min
Working Noise:
≤85dB
Packaging Details:
Other
Supply Ability:
10 sets/month
Highlight:

3375L constant temperature humidity test chamber

,

Convection constant temperature humidity test chamber

,

6m3 temperature humidity environmental chamber

Product Description





3375L Temperature Humidity Control Walk In Environmental Test Chamber



Complied Standards & Clauses


IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”



IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”



IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”



IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”



Technical Parameters


1. Sample limitation This test chamber prohibits:
Testing or storage of flammable, explosive, and volatile substance samples
Testing or storage of samples of corrosive substances
Testing or storage of biological samples
Testing or storage of strong electromagnetic emission source samples
Testing or storage of radioactive material samples
Test or storage of highly toxic substance samples
Testing or storage of samples that may produce flammable, explosive, volatile, highly toxic, corrosive and radioactive materials during testing or storage
2. Volume, size and weight
2.1 Nominal content volume 3375L

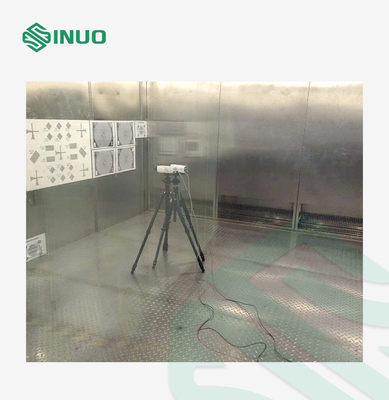

2.2 Inner chamber size D(1500)mm ×W(1500)mm× H(1500)mm

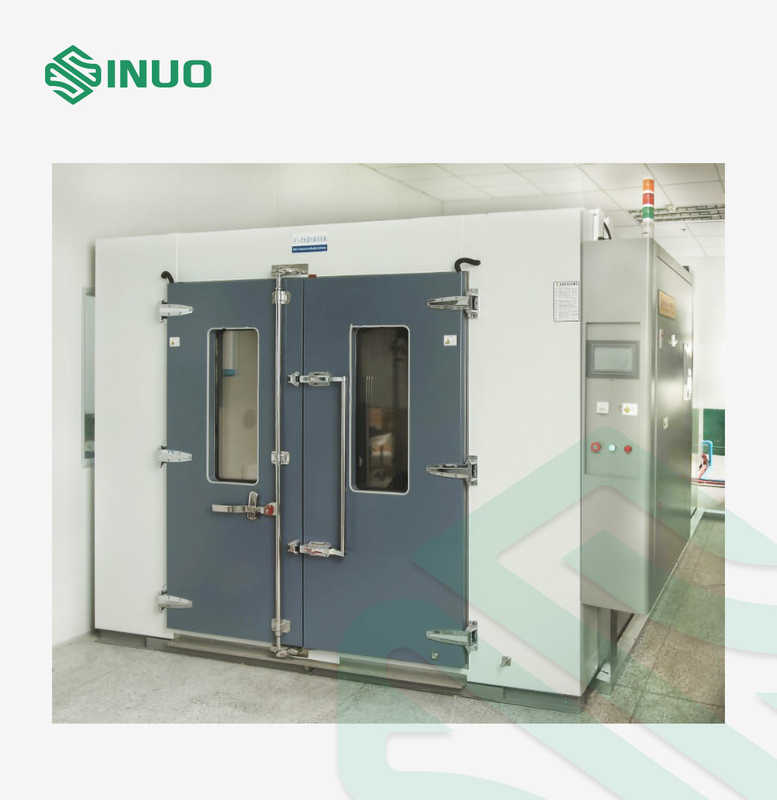

2.3 External dimensions Approx. D(1750)mm ×W(2950)mm× H(2250)mm
2.4 Weight Approx. 850KG
3. Performance
3.1 Temperature range Temperature range:20 ℃~+120℃
3.2 Humidity range

(25 ~ 98)% RH (refer to temperature and humidity controllable range chart, no active wet and heat load)

3375L Temperature Humidity Control Walk In Environmental Test Chamber 0

Temperature and humidity controllable range chart

3.3 Temperature fluctuation ≤±0.5℃ (The temperature fluctuation is half of the difference between the measured maximum temperature and the minimum temperature at the center point)
3.4 Temperature uniformity ±2.0℃ (Temperature uniformity is the arithmetic mean of the difference between the highest and lowest temperature measured in each test)
3.5 Temperature error ±2.0℃
3.6 Heating time ≥3℃/min (Non-linear no-load)
3.7 Cooling time ≥1℃-1.2℃ /min (Non-linear no-load)
3.8 Relative humidity error
(Damp heat only)
±3%RH

3.9 Working noise



Sound level≤85dB

(Measured in a soundproof room with an ambient temperature of 25 ° C and low echo; using A weighting, the average value of 8 points is tested; each test point is 1 meter away from the noise source and 1 meter away from the ground)

4. Structural characteristics

4.1 Material





1. Outer wall material: Cold rolled steel plate, pickling and phosphating advanced powder baking paint
2.Inner wall material: SUS304# stainless steel plate
3. Chamber insulation material: rigid polyurethane foam + glass fiber
4.2 Air duct parts Centrifugal fan; the air outlet can adjust the air volume, height and return air volume
4.3 Door Double open hinged door, adopts reaction-free grip handle, equipped with observation window, lighting lamp, window/door frame anti-condensation electric heating device, door opening size: (approximately) 1.5*1.5M
4.4 Observation window There are two conductive film explosion-proof tempered glass observation windows on the door (with anti-condensation function) 380W×400H (mm)
4.5 Fan Long axis centrifugal fan
4.6 Sample rack Two built-in stainless steel adjustable movable tray racks



4.7 Impeller



Use stainless steel impeller imported from Taiwan
4.8 Heater Nickel-chromium alloy electric heater



4.9 Refrigeration Compressor





French Tecumseh compressor



​4.10 Evaporator





Fin type evaporator



4.11 Refrigerating method





Mechanical compressor cascade



4.12 Cooling method





Air-cooling



4.13Temperature control instrument





7-inch smart LCD touch programmable controller

4.14 Lead hole Φ50mm, 1pc, equipped with a special foam rubber plug (located on the left side of the chamber)



5. Heating, humidification and refrigeration systems and their working principles



5.1 Heating system Stainless steel sleeve type anti-dry heating tube built-in nickel-chromium alloy heating wire
U-shaped fin type stainless steel high-speed heating electric heater is used for heating
Completely independent system, does not affect the control circuit
5.2 Humidification system Humidification method:
1. Stainless steel armored humidifier
2. Humidifier control mode: non-contact and other periodic pulse width adjustment, SSR (solid state relay)
3. Water level control device, humidifier anti-dry burning device, sediment collection device, liquid level observation window
5.3 Refrigeration system Cooling method: air-cooling
Refrigeration compressor: French Tecumseh compressor with environmentally friendly refrigerant
Refrigerant copper tube: inner spiral K-TYPE refrigerant copper tube
Condenser: wave-shaped fin type air-cooled condenser
Evaporator: Slope type FIN—TUBE evaporator
Freezing element: Original imported solenoid valve, drying filter, etc.
5.4 Features The pipelines of the whole system are subjected to a 22kg leak detection test
The heating and cooling system is completely independent
The system can prevent high temperature and high pressure air flow back
All refrigeration system action programs are completely controlled by the microcomputer controller







6. Regulation system



6.1 Regulation method

Forced circulation ventilation, balance temperature regulation method. The control system controls the output of the heater through the PID automatic calculation output according to the temperature point set by the system, and finally reaches a dynamic balance.

3375L Temperature Humidity Control Walk In Environmental Test Chamber 1

6.2 Circulation device The built-in air-conditioning room, circulating air duct and long axial flow fan can improve the air flow and heating capacity by improving the air flow, and greatly improve the temperature uniformity of the test chamber.



7. Program control system





7.1 Controller



TH1200-A, 7 inch PLC LCD touch programmable controller



7.2 Display accuracy



0.01℃/ 0.1%RH



7.3 Touch-type high-resolution screen



Arbitrary setting of fixed conditions, program conditions, and setting of curing test name, serial number, etc.



7.4 Time range can be set



0—999H59min
7.5 Programmable mode At the same time, 120 groups of programs with different conditions can be set. In any group of programs, it can be divided into 1200 sections, and part of the number of sections can be intercepted arbitrarily to execute the cycle, or to perform cycle work of any section or group.
7.6 Safety It has a power-off memory device, which can continue to execute the remaining programs when the power is restored, and can be used as a machine appointment to execute the startup and machine running time.
7.7 Control The temperature rise and fall can be used for slope control, curve control, and have the function of self-correcting temperature and humidity reference points. It has the function of PID automatic calculation, which can reduce the convenience caused by manual setting.
7.8 Communication function U disk interface, RS-232 interface, misoperation hardware lock ( LOCK), computer communication software is provided



7.9 Setting



Settings and all conditions are automatically locked by microcomputer



7.10 Alarm



If an error occurs during setting or operation, a warning signal will be provided
7.11 Output The controller has a recording signal port output, which can be connected to a temperature and humidity recorder and can output recording curves



7.12 Interface



Equipped with standard RS-232 communication interface, long transmission distance, can be connected to PC for control and recording.



8. Safety protection device



8.1 Refrigeration system 1. Compressor overheating protection
2. Compressor overcurrent protection
3. Compressor high and low pressure protection
4. Compressor oil pressure protection (optional for large semi-hermetic compressors)
5. Over-temperature protection for liquid supply temperature
6. Ultra-high pressure relief protection
7. Air-cooled: condensing fan overheated protection
8.2 Test chamber

1. Adjustable over temperature protection
2. Limit over-temperature protection of air conditioning channels
3. Fan motor overheat protection



8.3 Other protection 1. Total power phase sequence and phase loss protection (for three-phase power supply)
2. Overload and short circuit protection
3. The refrigeration system failure alarm protection caused by multiple openings of the cabinet



9. Conditions of use





The following conditions are guaranteed by the user

9.1 The installation site

1. The ground is level and well ventilated
2.No strong vibration around the equipment
3.No strong electromagnetic field around the equipment
4.No flammable, explosive, corrosive substances and dust around the equipment
5. Appropriate use and maintenance space is left around the equipment, as shown below:

3375L Temperature Humidity Control Walk In Environmental Test Chamber 2

A:≥10cm B:≥30cm C:≥120cm D: ≥10cm E:≥40com
9.2 Environmental conditions 1. Temperature: 5 ℃ ~ 35 ℃
2. Relative humidity: ≤85%
3. Air pressure: 86kPa ~ 106kPa
9.3 Power supply conditions AC380V power requirements:
1. One five-core (three-phase four-wire + protective ground wire) cable (about 4 meters long)
2. Voltage range: AC 380 V
3. Allowable frequency fluctuation range: (50 ± 0.5) Hz
4. The protective earth ground resistance is less than 4Ω
5. The user is required to configure the equipment with an air or power switch of the corresponding capacity at the installation site, and this switch must be independently used by the device



9.4 Maximum current
Maximum power consumption





Imax≤32A

Pmax≤12.5KW
9.5 Others Opening the door of the test chamber during the test will cause temperature and humidity fluctuations in the chamber; if the door is opened multiple times or is left open for a long time or the test sample emits moisture during the test, the refrigeration system heat exchanger may freeze and does not work.



Equipment Overview


This test chamber simulates the temperature and humidity changeable environment for the products or materials. It is widely used in the adaptability test of electrical, electronics, instrument and meter and other product parts under high and low temperature and humid environment during storage, transportation and usage, to determine the temperature adaptability of the above products or materials to high and low temperature and humid environment, especially for product electrification changes in performance and mechanical properties.



Features:

1. The test system has advanced and reasonable structural design, standardized manufacturing process, beautiful appearance and generous appearance.
2. The main functional components of the test chamber are world famous branded ones. The test chamber has best control of noise and energy saving.
3. The matching of components and assembly is good. The main functional components are imported from the internationally branded companies, which improves the safety and reliability of the test chamber, and can ensure the long-term,
 high-frequency usage purposes.
4. The equipment has good operability, maintainability, good temperature stability and
 durability, good safety performance. It does not pollute the environment and endanger human health.



Electrical control system

3375L Temperature Humidity Control Walk In Environmental Test Chamber 3
