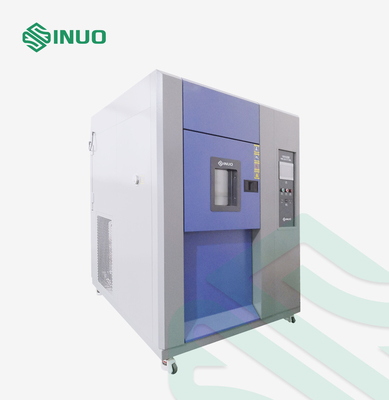

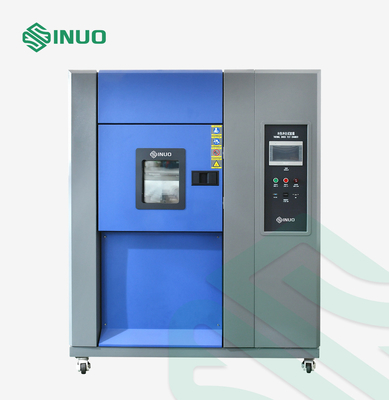

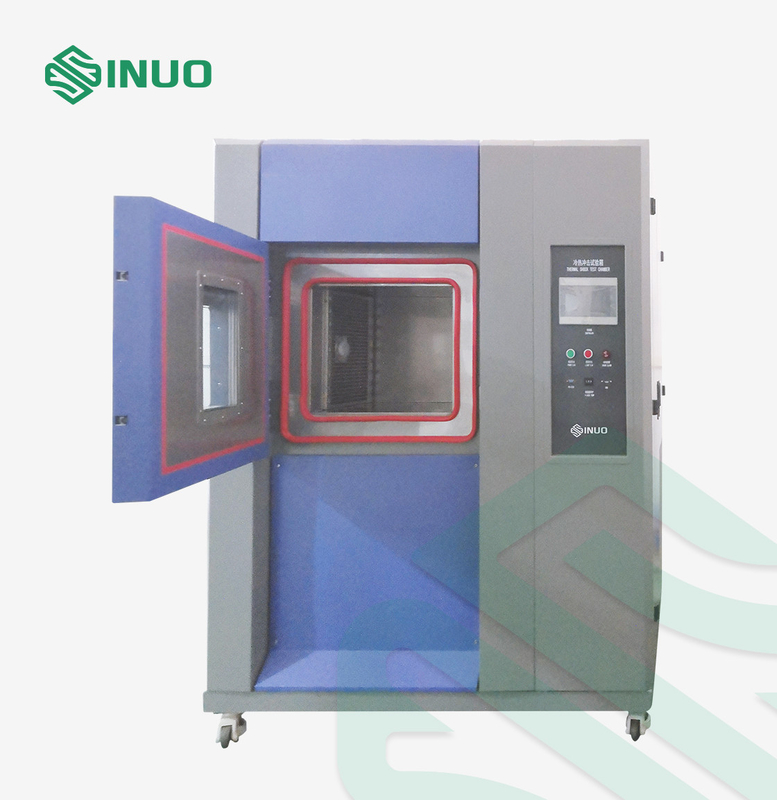

3 Zones Thermal Shock Environmental Testing Chamber
Complied Standards & Clauses
The 3-Zones Thermal Shock Test Chamber meets the standard requirements of IEC 60068-2-1:2007, Environmental Testing—Part 2-1: Tests—Test A: Cold, IDT; IEC 60068-2-2: 1974 Environmental testing for electric and electronic products—Part 2: Test methods—Tests B: Dry heat; IEC 60068-2-14:1984, Basic environmental testing procedures—Part 2: test-test N: Change of temperature, IDT; MIL-STD-883 and etc.
Equipment Overview
The 3 Zones Thermal Shock Test Chamber is composed of three zones of high temperature heat storage zone, low temperature cold storage zone and product test zone. The products to be tested are placed in the test compartment. The unique heat-storage and cold-storage effect of the heat-dissipating structure is adopted, and the effect of alternating high temperature and low temperature shocks can be achieved quickly through the switching of the damper.
It is used to test whether the product is adversely affected by the rapid change of high and low temperature in the way of the object to be tested does not move. It is a necessary test equipment for metal, plastic, rubber, electrical and electronic, auto parts and other material industries.
Technical Parameters
| Model |
SN887B-64L (Optional) |
SN887B-80L |
SN887B-150L (Optional) |
SN887B-270L (Optional) |
|
| Inner chamber material (W*H*D) | 400×400×400 | 400×500x400 | 600×500×500 | 750×600×600 | |
| External chamber material (W*H*D) | 1440×1910×1825 | 1450×2040×2000 | 1620×2040×2100 | 1870×2100×2140 | |
| Temperature shock range |
-40～+150℃ -55～+150℃ (optional) -65～+150℃ (optional) |
||||
|
Cold storage temperature range in low temperature zone |
-10℃～-50℃ -10℃～-65℃ (optional) -10℃～-75℃ (optional) |
||||
|
Heat storage temperature range in high temperature zone |
+50℃～+180℃ | ||||
| Impact reset time | About 5 mins | ||||
|
The constant temperature time of high-low temperature shock |
Above 30 mins | ||||
| Conversion time | ≤10s | ||||
|
Temperature fluctuations in the sample area |
±0.5℃ (at constant temperature) | ||||
| Temperature accuracy range | Setting accuracy: ±0.1℃, indication accuracy: ±0.1℃, resolution: ±0.1℃ | ||||
| Temperature variation | ±2°C (no load, at constant state) | ||||
| Temperature sensor | High-precision A grade PT100 temperature | ||||
| The refrigerant | R404a, R23 | ||||

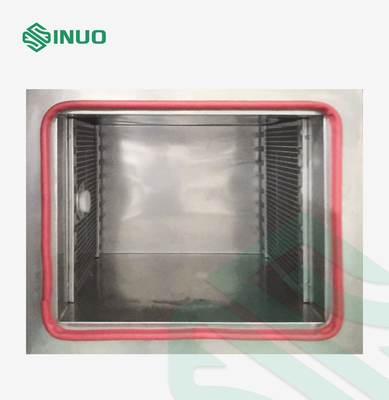

| Chamber structure | With independent product test area, high temperature storage area, low temperature storage area | ||||
| Inner chamber material | SUS304 stainless steel plate | ||||
| External chamber material | Cold rolled board baking varnish | ||||
| Insulation material | Rigid polyurethane foam + insulation cotton | ||||
| Circulation method | Multi-wing fan | ||||
| Heater | Nickel alloy electric heater | ||||
| Condenser | Shell-tube condenser(water-cooled) | ||||
| Evaporator | High-performance fin type with automatic load capacity adjustment, which can be used for a long time under low temperature and high humidity conditions without frosting | ||||
| Controller | 7-inch color LCD touch control screen + PLC module | ||||
| Program capacity | Usable program capacity: 120 groups at most; time setting: 99 hours and 59 minutes per segment; | ||||
| Operating power | About 9～30KW (Automatically turn on heating and cooling system according to PID calculation) | ||||
| Power supply | 380V±10%V; 50Hz; three-phase four-wire + grounding wire, protective grounding resistance is less than 4Ω | ||||
| Safety equipment | Over-temperature protection, motor overload protection, compressor high-voltage protection switch, compressor over-heat protection switch, compressor over-current protection, over-voltage under-reverse phase protection switch, leakage circuit breaker, cooling water abnormal protection. | ||||
Questions & Answers
Q: What's the difference of the 3 Zones and 2 Zones thermal shock test chamber?
A: The Two-Zone Thermal Shock Test Chamber, also called Basket-Type Thermal Shock Test Chamber. The test chamber has only two zones, the high temperature zone and low temperature zone, and there is no test zone. Its "test zone" is a hanging basket, loaded with test samples to move between the high temperature zone and the low temperature zone. The conversion time is only 10 seconds, which can better simulate the instantaneous temperature conversion shock.
The Three-Zone Thermal Shock Test Chamber is divided into three parts: high temperature zone, test zone, and low temperature zone. It is very simple to test. Placing the test sample in the middle position, when the temperature is switched, only the corresponding door valve needs to be opened.
