Electric Vehicle Single Station Plugs Connectors Misalignment Test Apparatus IEC62196-3

Electric Vehicle Single Station Plugs Connectors Misalignment Test Apparatus IEC62196-3

Brand Name:	Sinuo
Model Number:	SNQC1017
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 Sets / Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Applied Standard:

IEC 62196-3，clause 36.3

Apparatus Power:

Customized

Control Method:

PLC Control, Touch Screen Operation

Test Station:

Single Station

Drive Mode:

Servo Motor

Equipped Force:

0-500N

Holding Time:

0-999.9s

Interval Time:

0-999.9s

Packaging Details:

Plywood Case

Supply Ability:

30 Sets / Month

Highlight:

Single Station Plugs ev test equipment

IEC62196-3 ev test equipment

Connectors misalignment test apparatus

Product Description

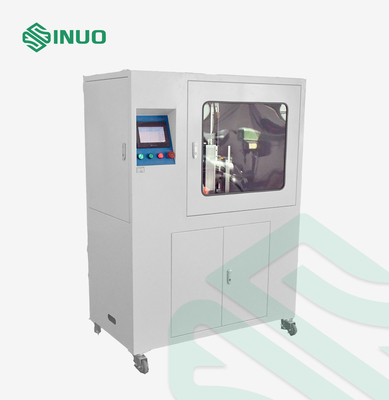

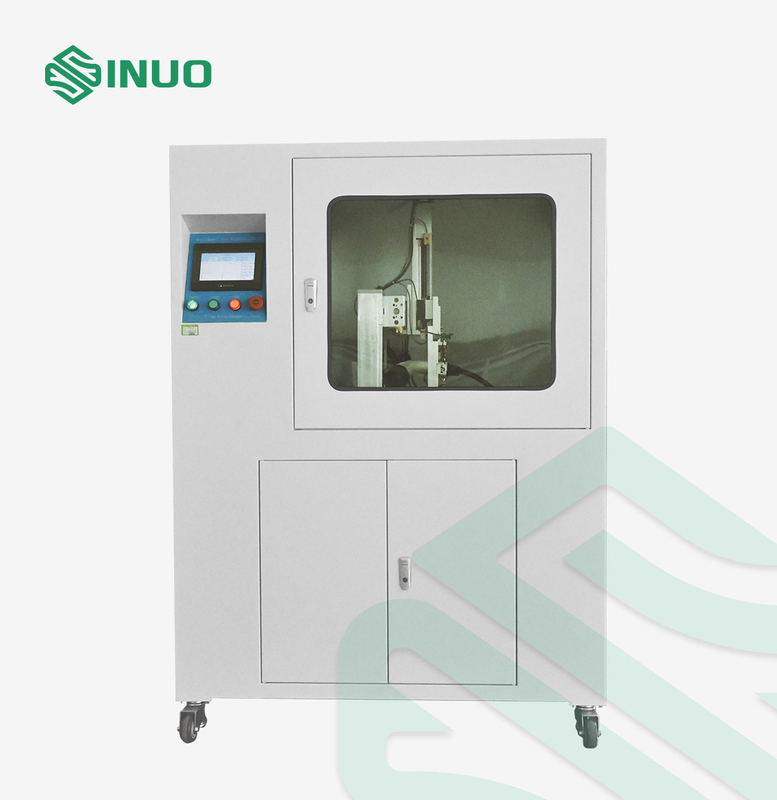

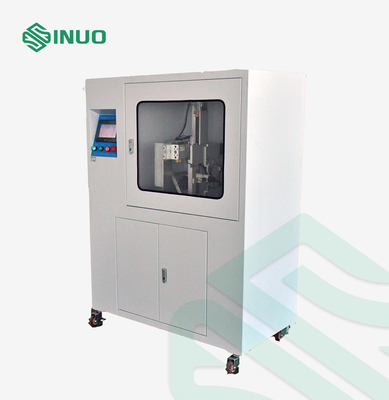

IEC62196-3 Electric Vehicle Single Station Plugs And Connectors Misalignment Test Apparatus

Complied Standards & Clauses

This misalignment test apparatus conforms to IEC62196-3 clause 36.3, figure 18.

Equipment Overview

During temperature rise test, immediately following temperature stabilization, the accessories are subjected to external mechanical loads as illustrated in Figure 18.

Using a force gauge, apply a load of 100 N with a tolerance of -0/+10 N as illustrated in Figure 19 in each direction. The load should be applied for a minimum of 1 min. Following this load application, the load should be removed for a time of 10 s and the load re-applied in the next direction within 10 s. This process is continued until the load is applied in the 4 directions (-X, +X, -Y, +Y) as illustrated in Figure 19.

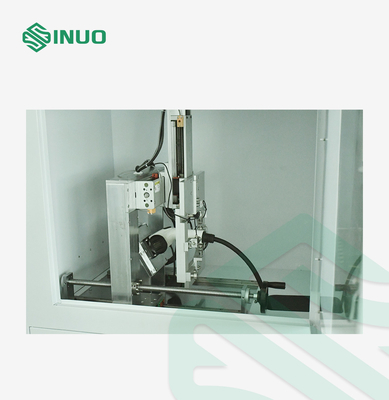

The equipment adopts X, Y (Figure 19) sliding table, driven by servo motor and monitored by force value sensor. When the force value reaches the required time for automatic constant force holding, it will automatically switch to another direction for test.

Technical Parameters

Power	AC220V, 60Hz
Control Method	PLC control, touch screen operation
Station	One
Drive Mode	Servo motor, two pcs, X and Y
Force	0-500N
Force holding time	0-999.9s
Interval time	0-999.9s
Force application direction	-X, +X, -Y, +Y

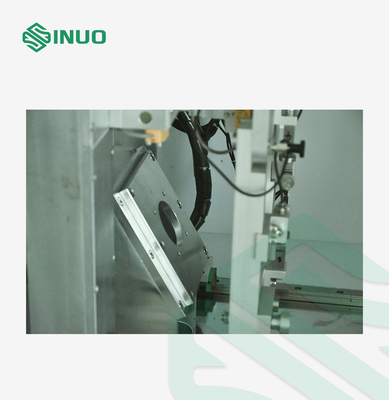

Specimen mounting bracket	30 ° slope, 1000mm height from the ground
Overall dimensions of equipment	100mm×400mm×1500mm,150kg

Features

This apparatus is conforms to these Standard Figures:

Electric Vehicle Single Station Plugs Connectors Misalignment Test Apparatus IEC62196-3 0
