IEC 62196-3 EV Connector Testing Equipment Couplers Over Pressure Test System

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SNQC1016

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood box
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30 Sets / Month
Contact Now

Detail Information

Applied Standard: IEC 62196-3 Test Station: Single Station
Control Method: Computer Intelligent Control And Operation Test Pressure: 1.0-10.0Bar, Booster Pump Drive
Pressure Accuracy: +1% Of The Upper Limit Display Accuracy: 0.1 Bar
Test Medium: Dry Air Air Pressure: 0.2-0.8MPa
High Light:

misalignment EV Connector Testing Equipment

,

IEC 62196-3 EV Connector Testing Equipment

,

Couplers over pressure test system

Product Description





IEC 62196 Electric Vehicle Couplers Over-pressure Test System



Complied Standards & Clauses


This misalignment test apparatus conforms to IEC62196-3 clause 101.6.

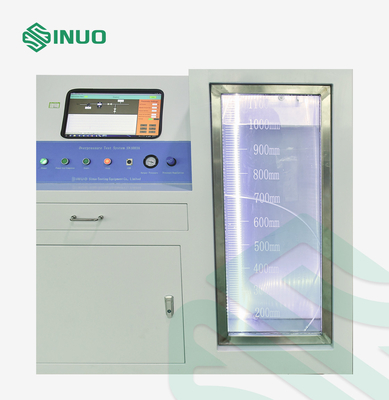

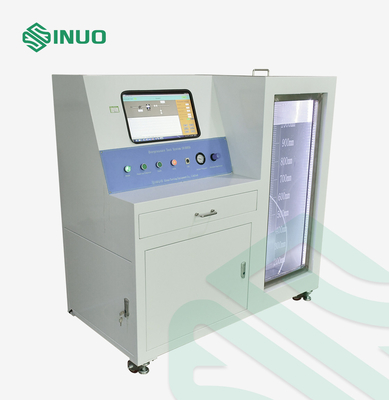

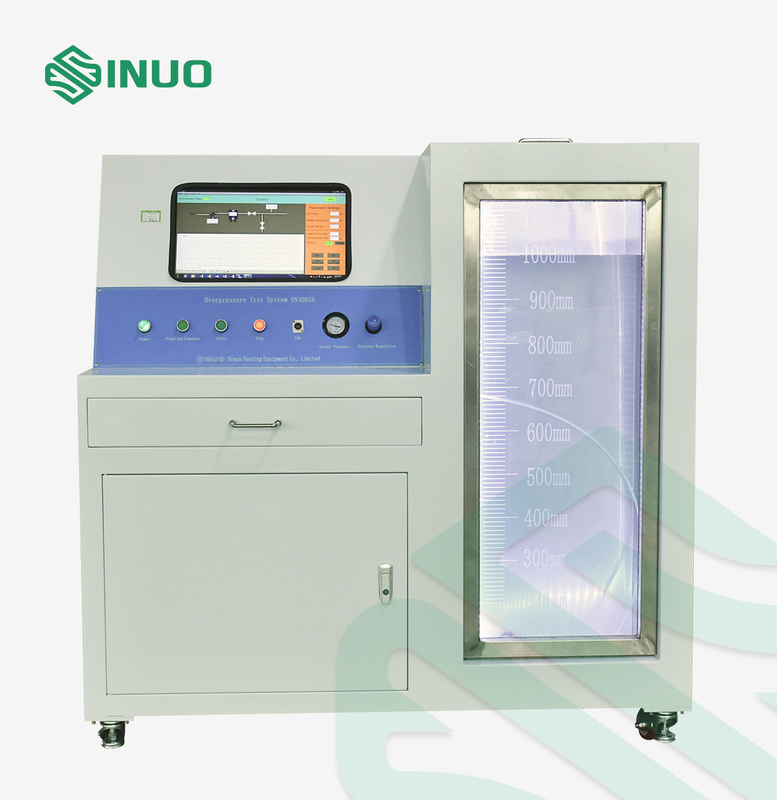

Equipment Overview


This overpressure test system meets the test requirements of IEC 62196-3-1 Cl 101.6. It is used to carry out pressure leakage test on the sealing requirements of the liquid coolants under 10L volume.



The system's booster pump outputs high pressure to verify the pressure resistance of the samples according to the different pressures of the samples. The system is composed of electrical control system, pressure control system and water tank, the workpiece is manually installed and connected.



Technical Parameters


Power supply AC 220V, 60Hz, 0.3KW
Test station Single station
Electrical control method Computer intelligent control and operation
Test pressure 1.0-10.0Bar, booster pump drive
Pressure control accuracy +1% of the upper limit of the test pressure value, -1% of the lower limit
Display accuracy 0.1 Bar
Test medium Dry air
Pressure control method Computer control
Boost rate Adjustable, non-uniform linear
Pressure hold time 0-9999s arbitrarily set, with seconds as the time unit, computer display
Test process Boost-hold-relief
Drive air pressure 0.2-0.8MPa
Volume size Less than 10L
Water tank dimensions

WDH=500×500×1000mm

With transparent viewing window for observe bubbles

Standard output Interface

ZG1/4 internal thread

User should consider the connection between our ZG1/4 internal thread to tests samples

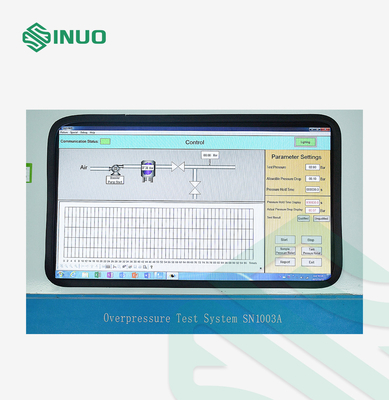

Pressure curve display Real-time display, data collected by software
Test data storage Can save reports in excel form
Computer Intel i5 4 G memory (or above) 512G SSD,Windows7 operating system and OFFICE processing software, with RS232 communication interface
Safety protection
Power Leakage protection, overload and short circuit protection
Motor Overload, short circuit protection





Details:
