IEC 61851 EVSE Testing Equipment Connector Plug Cable Strain Relief Test

IEC 61851 EVSE Testing Equipment Connector Plug Cable Strain Relief Test

Brand Name:	Sinuo
Model Number:	SN1007
MOQ:	1
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	30 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Applied Standard:

IEC 61851-1

Test Sample:

EVSE Connector, Plug

Test Content:

Strain Relief

Control Method:

Button Control

Torque Arm:

R100mm(Ф200mm)

Pull Frequency:

1 Cycle/s

Torque Time:

1 Min

Pull Cycles:

100 Cycles

Packaging Details:

Plywood Case

Supply Ability:

30 sets/month

Highlight:

IEC 61851 EVSE Testing Equipment

IEC 62196 EVSE Testing Equipment

IEC 62196 Strain Relief Testing Equipment

Product Description

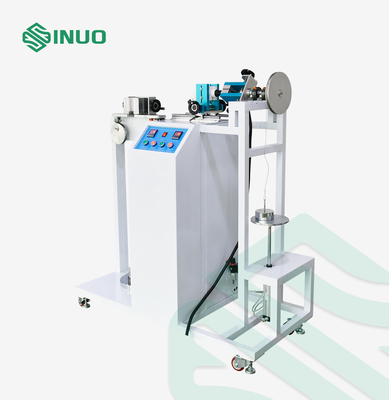

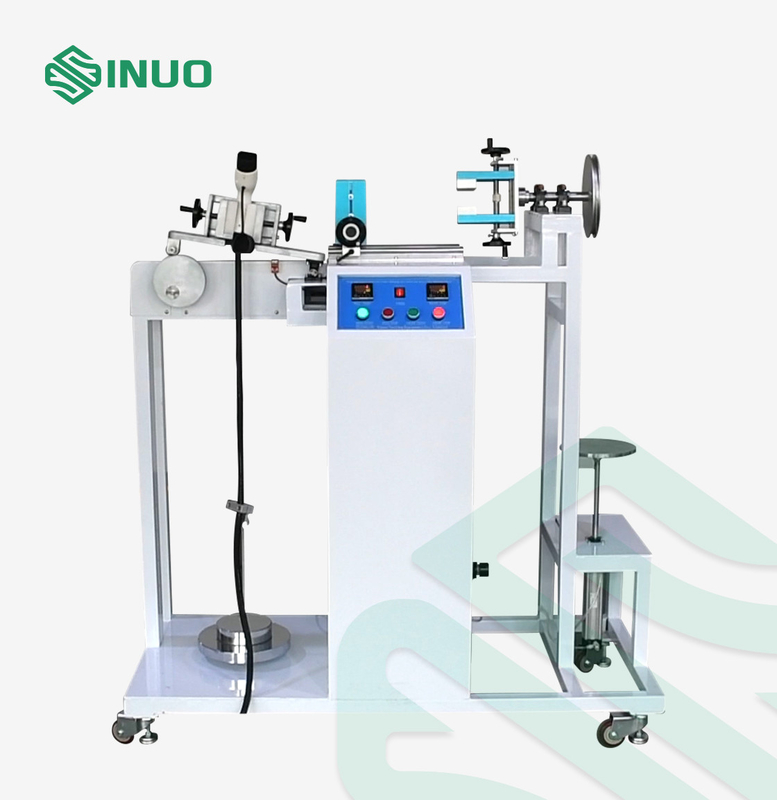

IEC 61851 EVSE Connector Plug Cable Strain Relief Testing Equipment

Complied Standards & Clauses

IEC 61851-1 2017 Electric vehicle conductive charging system - Part 1: General requirements clause 11.6.

IEC 62196-1 Ed.4CDV 2020 clause 25.3 Figure 17 and table 11.

IEC60309-1: 2012 clause 23.3, etc.

Equipment Overview

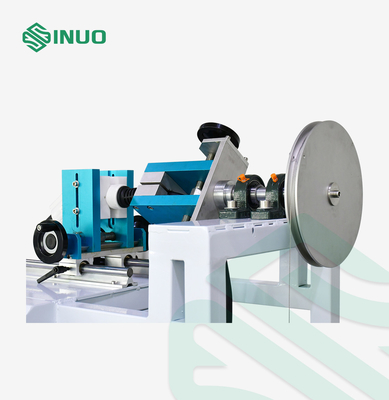

This cable strain relief test equipment is used to test the vehicle plugs, and socket-outlets, connectors to withstand the specified pull force and torque.
Pull is realized by single-phase speed-regulating motor to drive the eccentric mechanism, the motor speed is adjustable, to ensure the accurate time for each pull force applied; torque is achieved by releasing the torque weight by air cylinder.

Technical Parameters

Operation Method	Button operation
Drive Mode	Motor and cylinder
Pull Force Weights	40N2, 50N2, 60N1, 110N1,250N*1 Can achieve 160N, 200N, 240N, 250N,500N,600N pull force
Torque Weights	6N1, 7N1, 12N1, 15N1, 23N1, 110N1 Can achieve 0.6N.m, 0.7N.m, 1.2N.m, 1.5N.m, 2.3N.m, 11N.m torque
Torque Arm	Ф200mm
Pull Frequency	1 cycle/s
Pull Cycles	1-999999 cycles, can be preset, default 100 cycles
Torque Applied Time	0-99999.9S, can be preset, default 1 min
Fixture	One set of universal fixtures
Equipment Dimensions & Weight	L 1560mmW 600mmH 1530mm, approx. 220KG
Power Supply	Single phase AC220V±10%, 50/60Hz or AC110V, 60Hz
